Description:

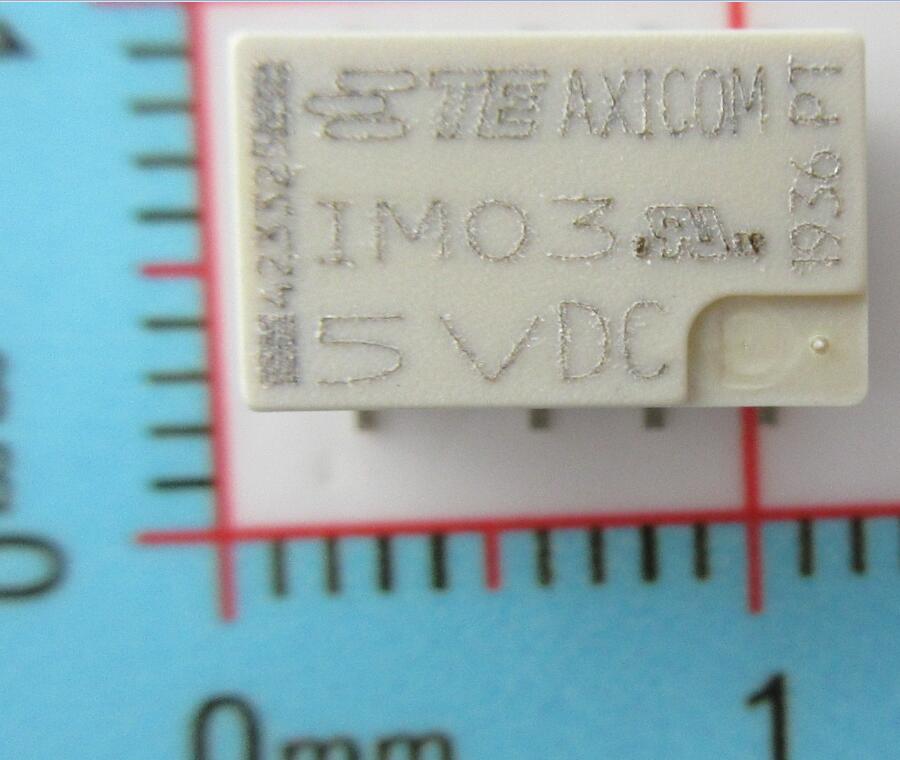

| Manufacturer | TE Connectivity | Manufacturer's Part # | IM03GR |
|---|---|---|---|
| Categories | Relays | Sub-Categories | Signal Relays, Up to 2 Amps |
| Series | IM, AXICOM | Part Status | Active |
| Relay Type | Telecom | Coil Type | Non Latching |
| Coil Current | 28.0mA | Coil Voltage | 5VDC |
| Contact Form | DPDT (2 Form C) | Contact Rating (Current) | 2A |
| Switching Voltage | 250VAC, 220VDC - Max | Turn On Voltage (Max) | 3.75 VDC |
| Turn Off Voltage (Min) | 0.5 VDC | Operate Time | 3ms |
| Release Time | 3ms | Features | Sealed - Hermetically |

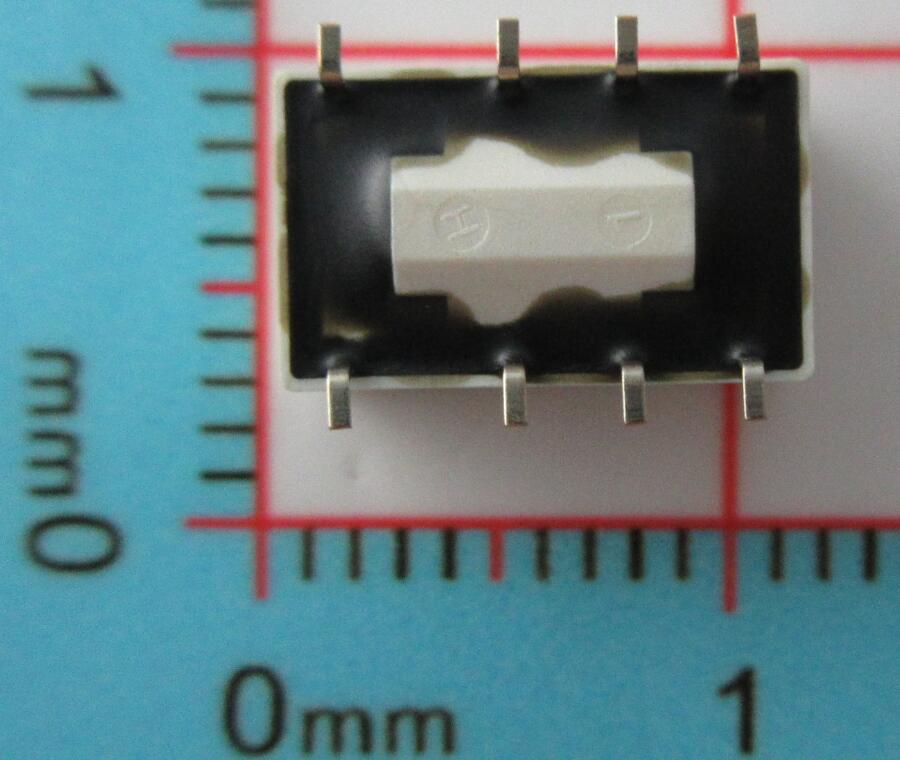

| Mounting Type | Surface Mount | Termination Style | Gull Wing |
| Operating Temperature | -40°C ~ 85°C |
