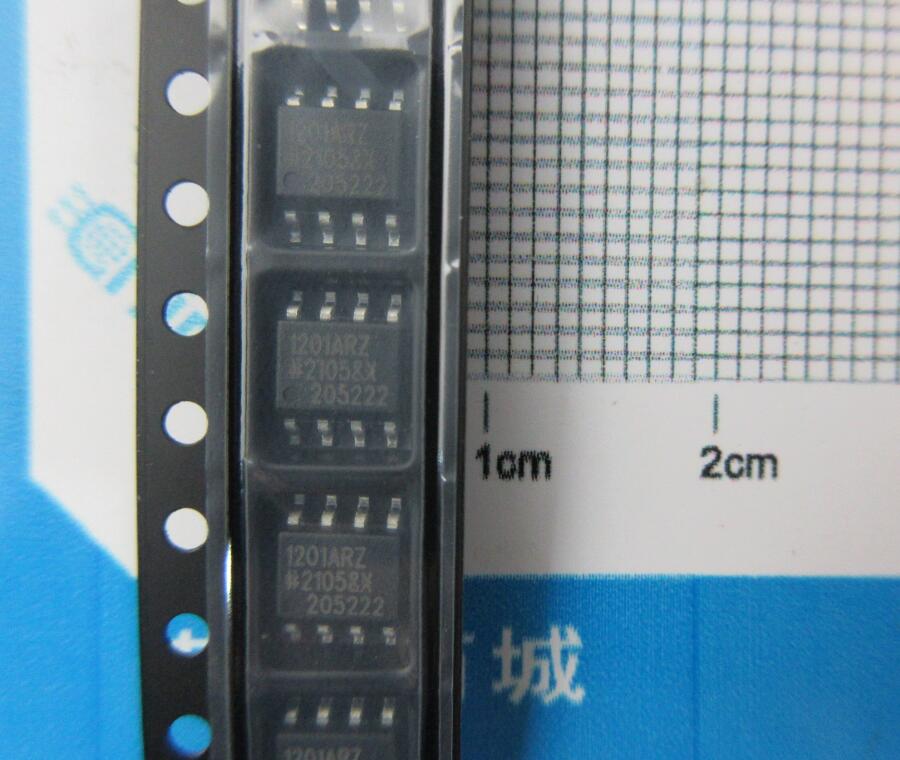

Part No.：ADUM1201ARZ
Category：Isolator
Manufacturer：AD
Date Code：10+
Package Type：SOIC8
Quantity：3000
Click：18
Update Time：2022-01-13 17:08:03
Description:
| Manufacturer | Analog Devices, Inc. | Manufacturer's Part # | ADUM1201ARZ |
|---|---|---|---|
| Categories | Isolators | Sub-Categories | Digital Isolators |
| Series | iCoupler® | Part Status | Active |
| Technology | Magnetic Coupling | Type | General Purpose |
| Isolated Power | No | Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 1/1 | Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms | Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 1Mbps | Propagation Delay tpLH / tpHL (Max) | 150ns, 150ns |
| Pulse Width Distortion (Max) | 40ns | Rise / Fall Time (Typ) | 10ns, 10ns |
| Voltage - Supply | 2.7V ~ 5.5V | Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
