Part No.：IRFU220NPBF
Category：MOSFET
Manufacturer：IR
Date Code：18+

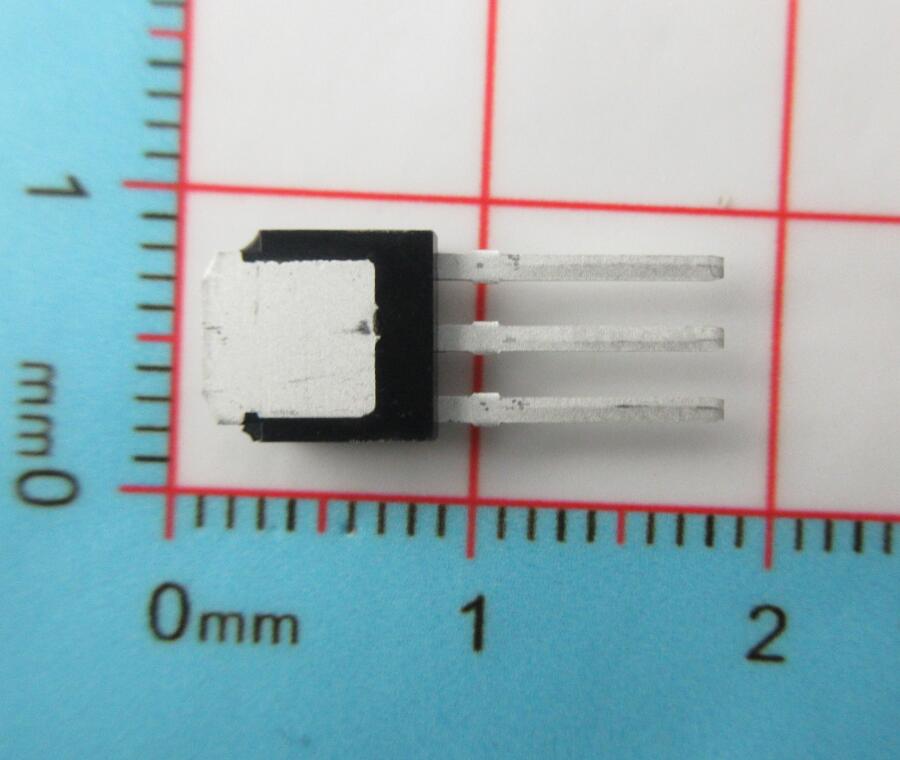

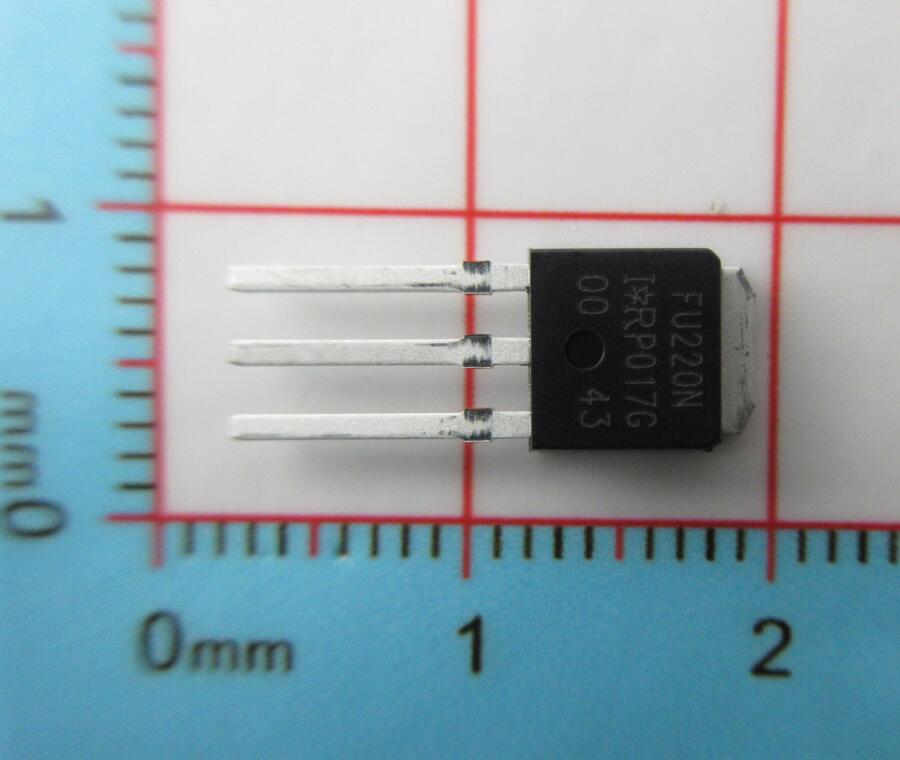

Package Type：TO-251-3
Quantity：2000
Click：30
Update Time：2021-01-22 17:37:57
Description:
| Manufacturer | Infineon Technologies | Manufacturer's Part # | IRFU220NPBF |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | HEXFET® | Part Status | Active |
| FET Type | N-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200V | Current - Continuous Drain (Id) @ 25°C | 5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Rds On (Max) @ Id, Vgs | 600 mOhm @ 2.9A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 23nC @ 10V |
| Vgs (Max) | ±20V | Input Capacitance (Ciss) (Max) @ Vds | 300pF @ 25V |
| FET Feature | - | Power Dissipation (Max) | 43W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Through Hole |
| Supplier Device Package | IPAK (TO-251) | Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
