Description:

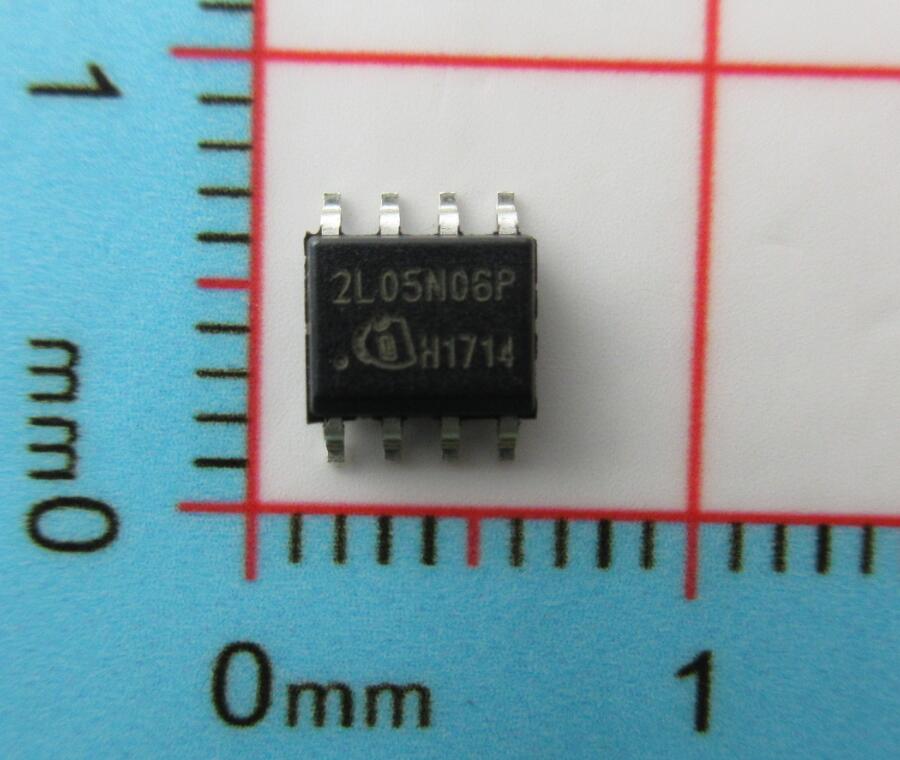

| Manufacturer | Infineon Technologies | Manufacturer's Part # | 2EDL05N06PFXUMA1 |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Gate Drivers |
| Series | EiceDriver™ | Part Status | Active |
| Driven Configuration | Half-Bridge | Channel Type | Independent |
| Number of Drivers | 2 | Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V | Logic Voltage - VIL, VIH | 1.1V, 1.7V |
| Current - Peak Output (Source, Sink) | - | Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600V | Rise / Fall Time (Typ) | 48ns, 24ns |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 8-DSO |
