Description:

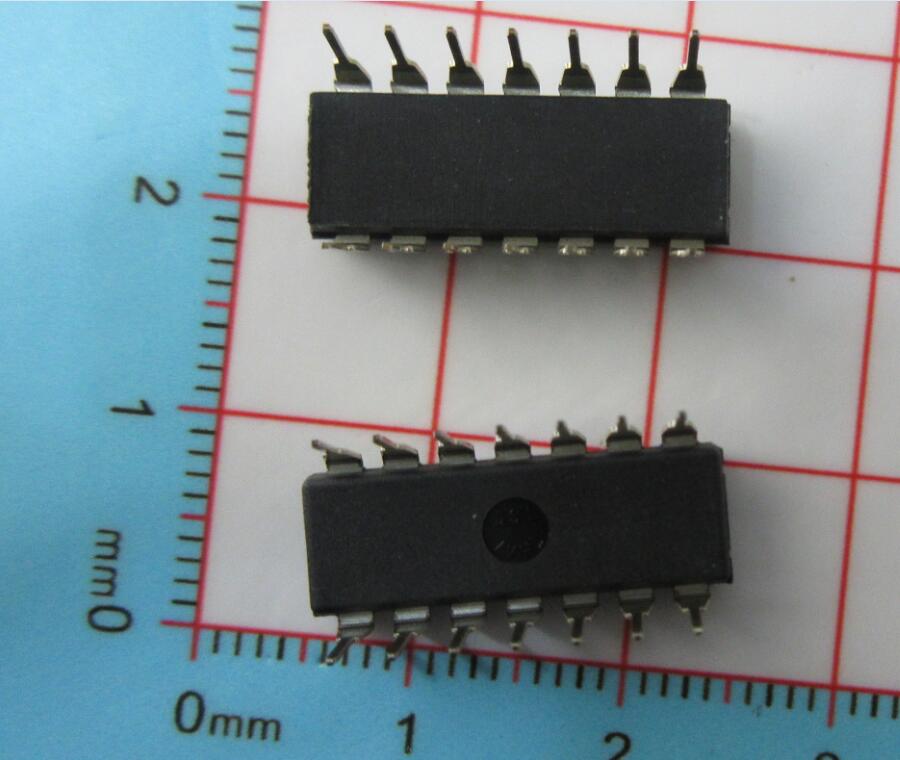

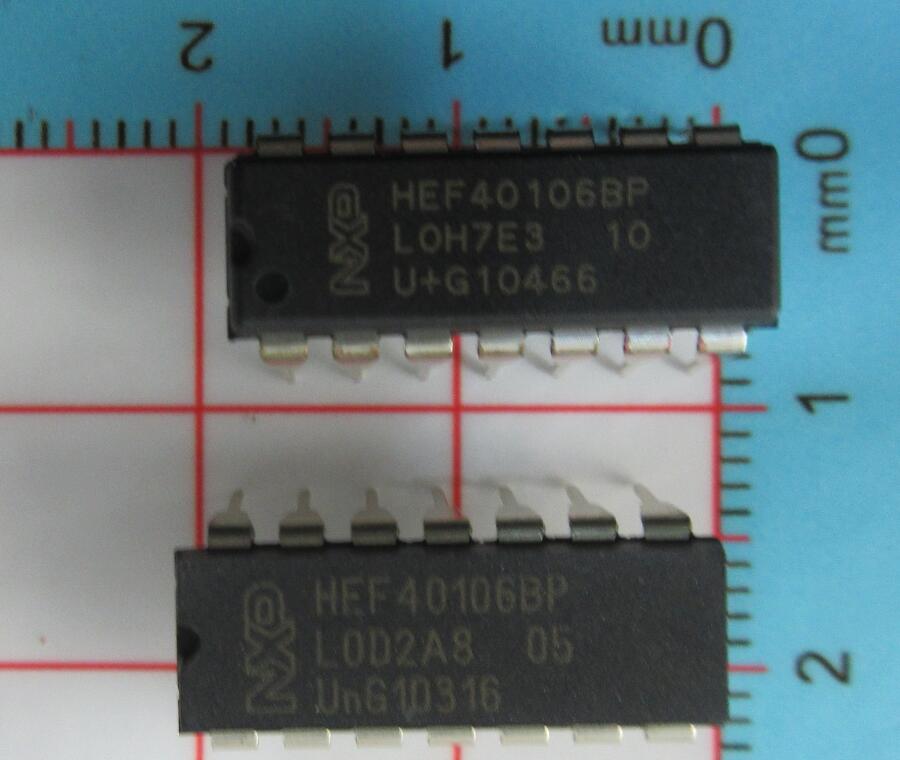

| Manufacturer | NXP Semiconductors | Manufacturer's Part # | HEF40106BP |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Logic - Gates and Inverters |
| Series | 4000B | Part Status | Obsolete |
| Logic Type | Inverter | Number of Circuits | 6 |
| Number of Inputs | 6 | Features | Schmitt Trigger |
| Voltage - Supply | 3V ~ 15V | Current - Quiescent (Max) | 4µA |
| Current - Output High, Low | 3.4mA, 3.4mA | Logic Level - Low | 1.5V ~ 4V |
| Logic Level - High | 3.5V ~ 11V | Max Propagation Delay @ V, Max CL | 60ns @ 15V, 50pF |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Through Hole |
| Supplier Device Package | 14-DIP | Package / Case | 14-DIP (0.300", 7.62mm) |
