Description:

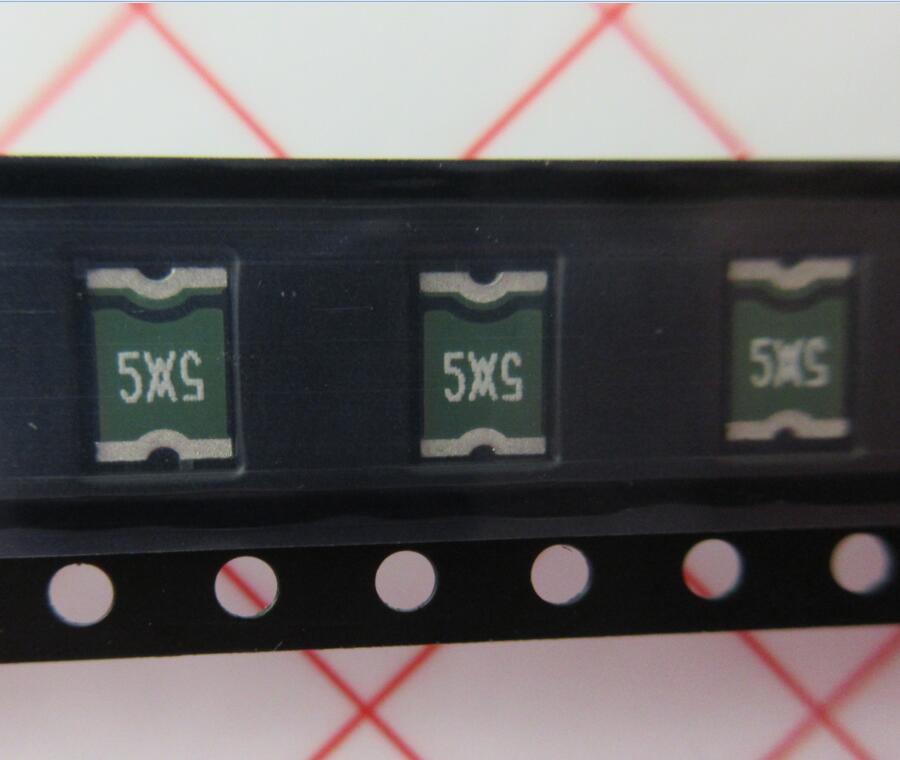

| Manufacturer | Littelfuse | Manufacturer's Part # | RF1403-000 |
|---|---|---|---|
| Categories | Circuit Protection | Sub-Categories | PTC Resettable Fuses |
| Series | Material Type | Polymeric | |
| Voltage - Max | 24V | Current - Max | 100A |
| Current - Hold (Ih) | 500mA | Current - Trip (It) | 1A |
| Maximum Time to Trip | 150ms | Typical Power Dissipation | - |
| Resistance - Initial (Ri) (Min) | 150mΩ | Resistance - Post Trip (R1) (Max) | 1Ω |
| Operating Temperature | -40℃~85℃ |
