Description:

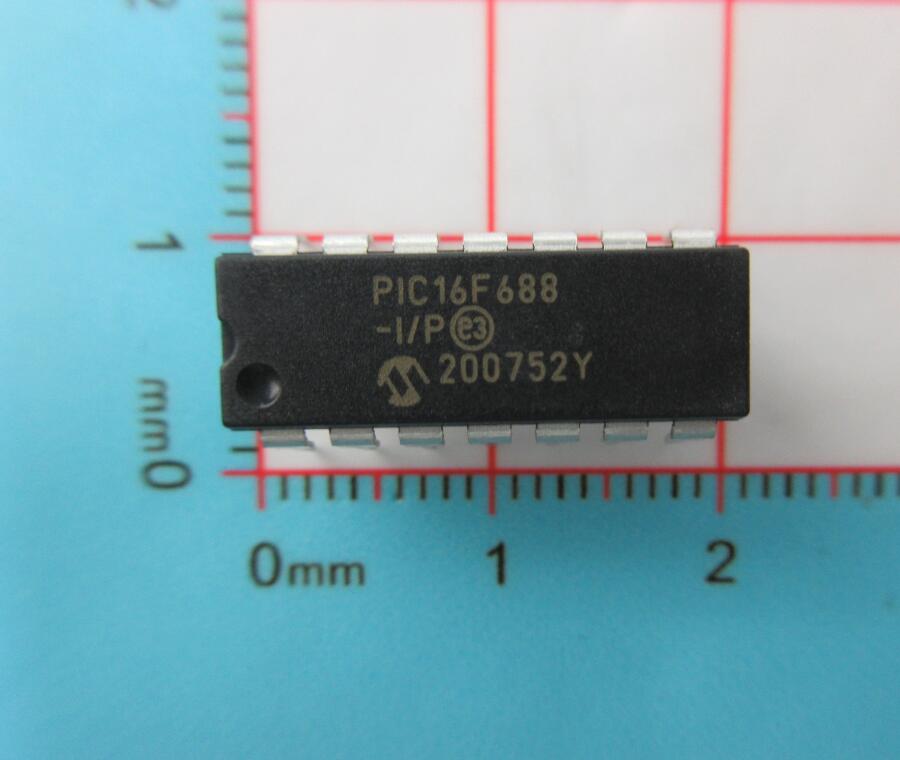

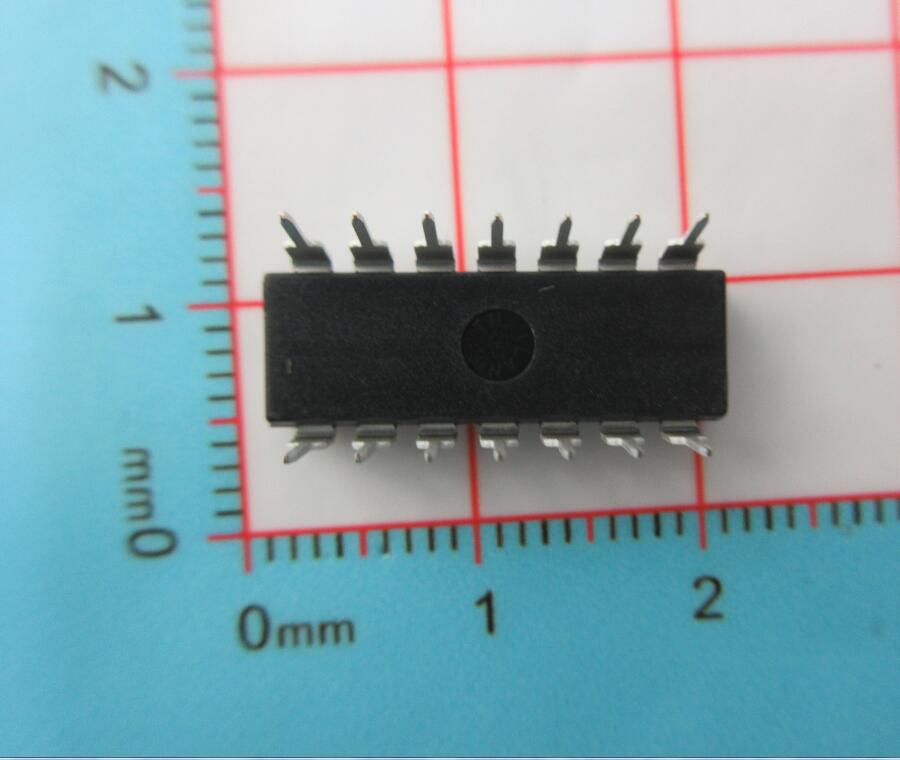

| Manufacturer | Microchip Technology | Manufacturer's Part # | PIC16F688-I/P |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Embedded - Microcontrollers |
| Series | PIC® 16F | Part Status | Active |
| Core Processor | PIC | Core Size | 8-Bit |
| Speed | 20MHz | Connectivity | UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT | Number of I/O | 12 |
| Program Memory Size | 7KB (4K x 14) | Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 | RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 5.5V | Data Converters | A/D 8x10b |
| Oscillator Type | Internal | Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-PDIP |
