Description:
| Manufacturer | Alpha and Omega Semiconductor, Inc. | Manufacturer's Part # | AON2408 |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | - | Part Status | Active |
| FET Type | N-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20V | Current - Continuous Drain (Id) @ 25°C | 8A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V | Rds On (Max) @ Id, Vgs | 14.5 mOhm @ 8A, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 7nC @ 4.5V |
| Vgs (Max) | ±12V | Input Capacitance (Ciss) (Max) @ Vds | 782pF @ 10V |
| FET Feature | - | Power Dissipation (Max) | 2.8W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |

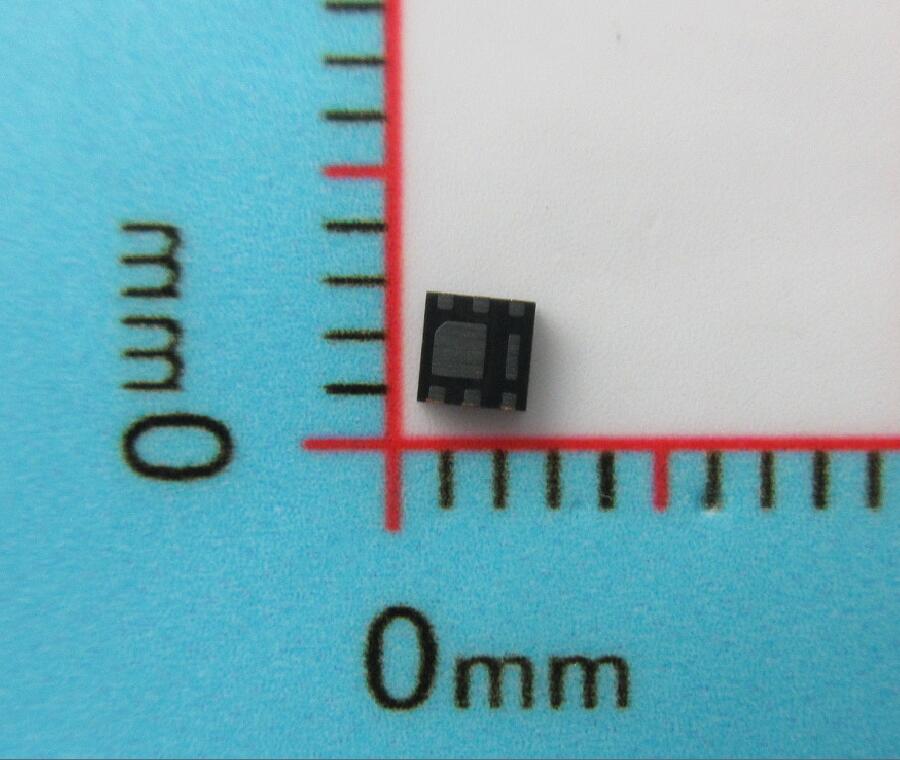

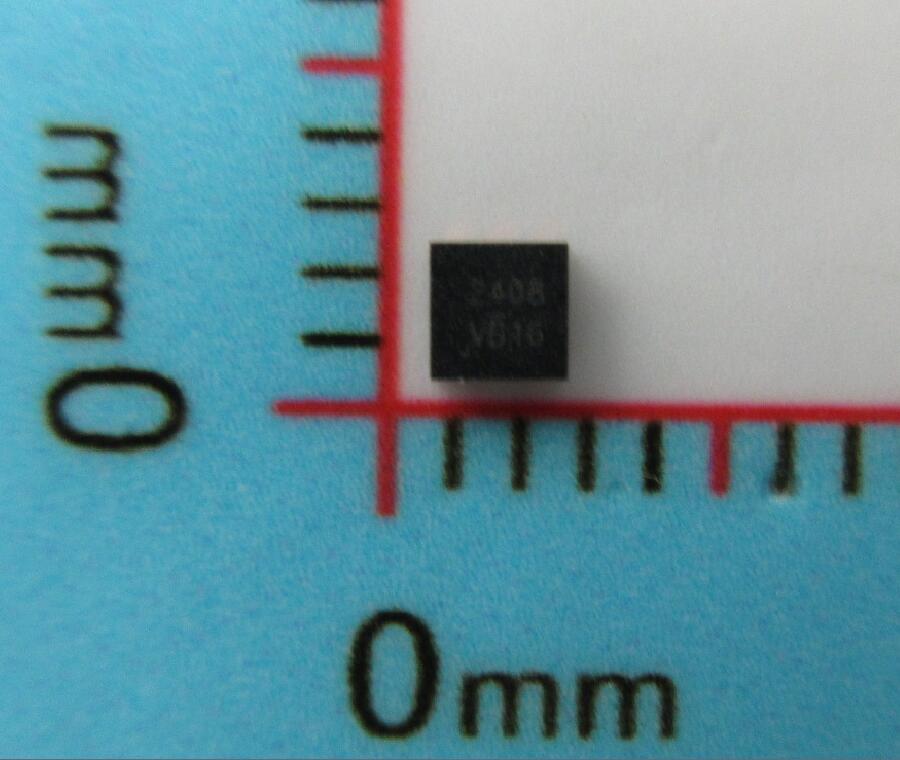

| Supplier Device Package | 6-DFN-EP (2x2) | Package / Case | 6-UDFN Exposed Pad |
