Description:

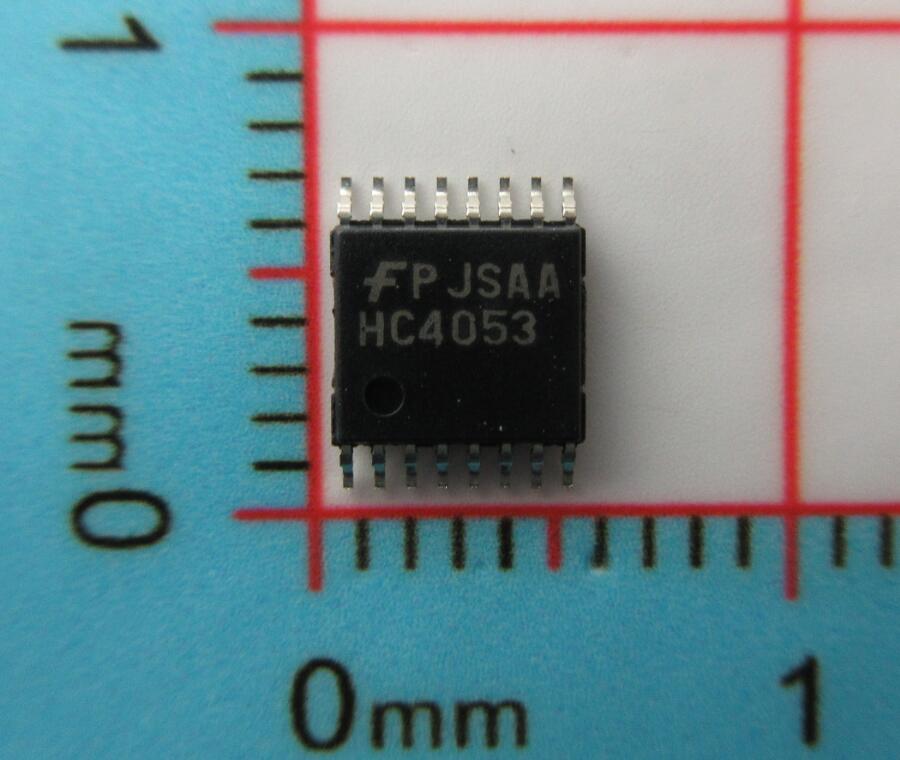

| Manufacturer | ON Semiconductor | Manufacturer's Part # | MM74HC4053MTC |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Series | - | Part Status | Obsolete |
| Switch Circuit | SPDT | Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 | On-State Resistance (Max) | 100 Ohm |
| Channel-to-Channel Matching (ΔRon) | 15 Ohm | Voltage - Supply, Single (V+) | 2V ~ 6V |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V | Switch Time (Ton, Toff) (Max) | 41ns, 32ns |
| -3db Bandwidth | 35MHz | Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 30pF | Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -50dB @ 1MHz | Operating Temperature | -40°C ~ 85°C (TA) |

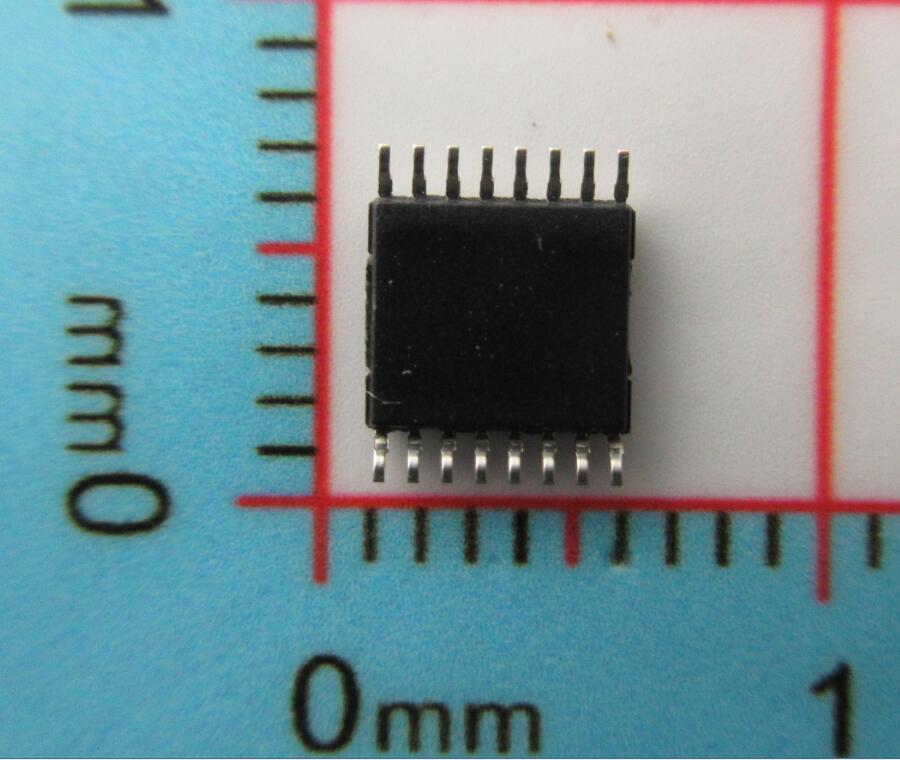

| Package / Case | 16-TSSOP (0.173", 4.40mm Width) | Supplier Device Package | 16-TSSOP |
