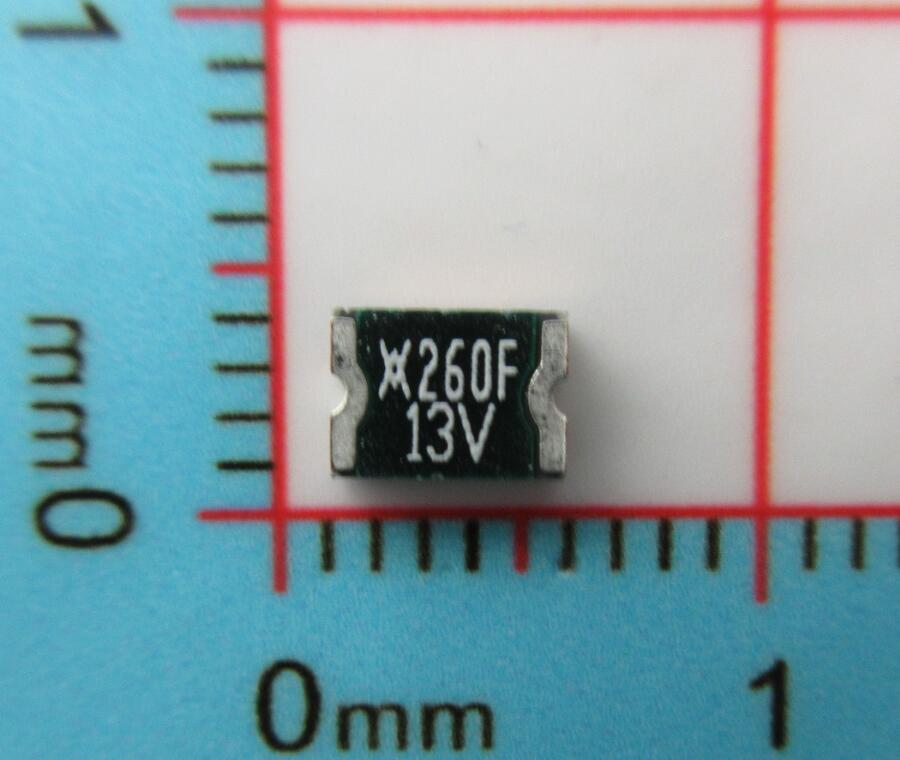

Description:
| Manufacturer | TE | Manufacturer's Part # | MINISMDC260F/13.2-2 |
|---|---|---|---|
| Categories | Circuit Protection | Sub-Categories | PTC Resettable Fuses |
| Series | PolySwitch®, miniSMD | Part Status | Active |
| Type | Polymeric | Voltage - Max | 13.2V |
| Current - Max | 100A | Current - Hold (Ih) (Max) | 2.6A |
| Current - Trip (It) | 5A | Time to Trip | 5s |
| Resistance - Initial (Ri) (Min) | 15 mOhms | Resistance - Post Trip (R1) (Max) | 50 mOhms |
| Resistance - 25°C (Typ) | - | Operating Temperature | -40°C ~ 85°C |
| Ratings | - | Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave | Size / Dimension | 0.181" L x 0.128" W (4.60mm x 3.24mm) |
| Height - Seated (Max) | - | Thickness (Max) | 0.060" (1.52mm) |
| Lead Spacing | - |
