Description:

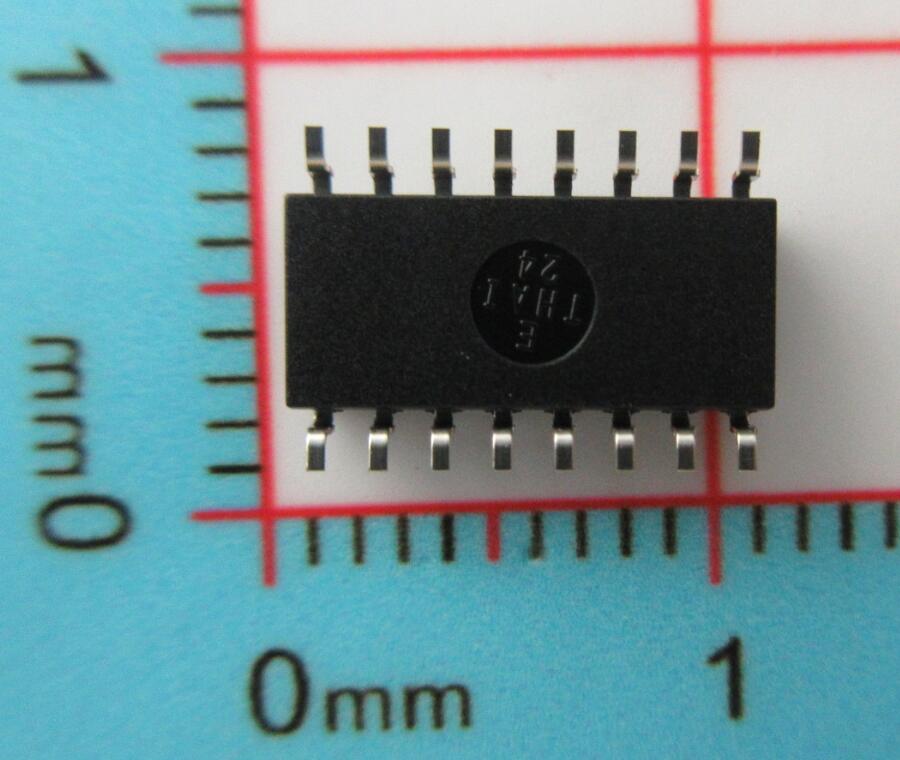

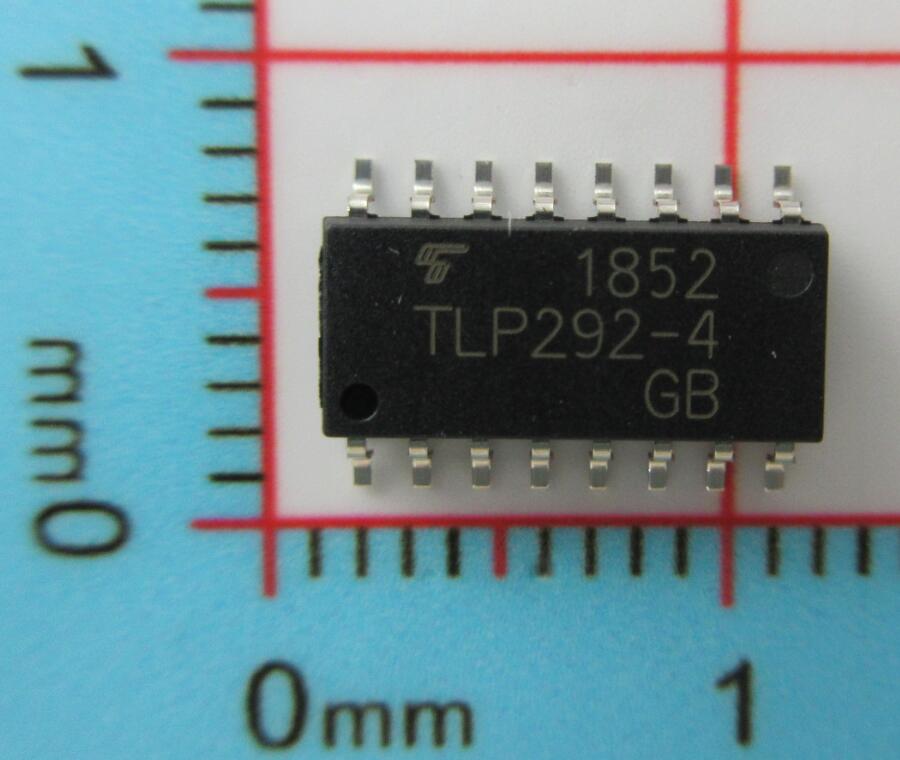

| Manufacturer | Toshiba Semiconductor and Storage | Manufacturer's Part # | TLP292-4 |
|---|---|---|---|
| Categories | Isolators | Sub-Categories | Optoisolators - Transistor, Photovoltaic Output |
| Series | - | Part Status | Active |
| Number of Channels | 4 | Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA | Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | 3µs, 3µs | Rise / Fall Time (Typ) | 2µs, 3µs |
| Input Type | AC, DC | Output Type | Transistor |
| Voltage - Output (Max) | 80V | Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V | Current - DC Forward (If) (Max) | 50mA |
| Vce Saturation (Max) | 300mV | Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 16-SOIC (0.179", 4.55mm Width) |
| Supplier Device Package | 16-SO |
