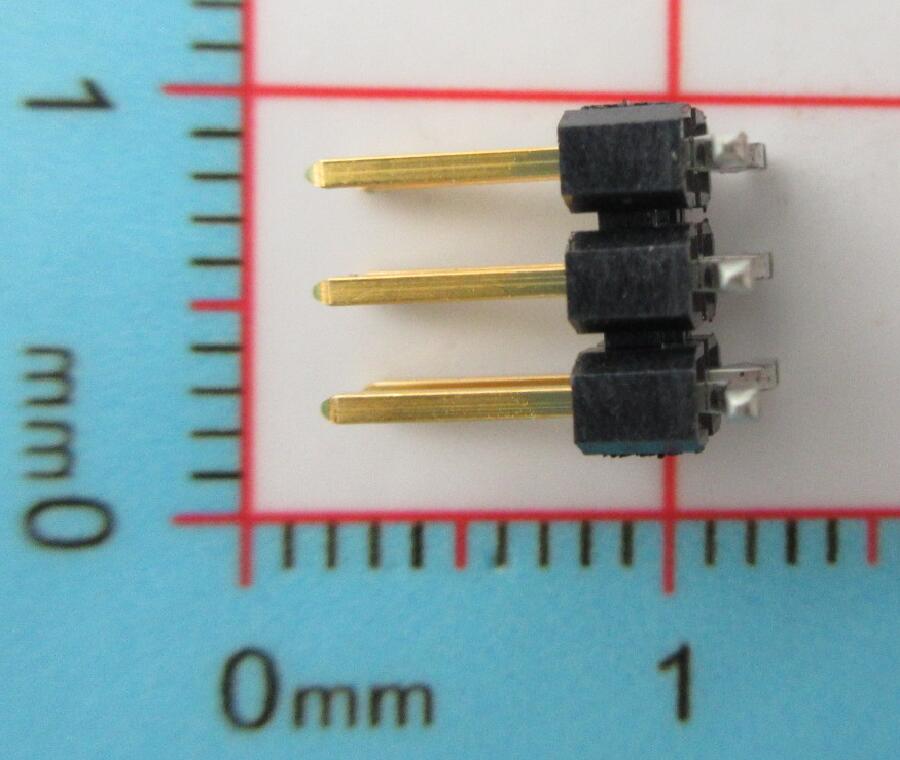

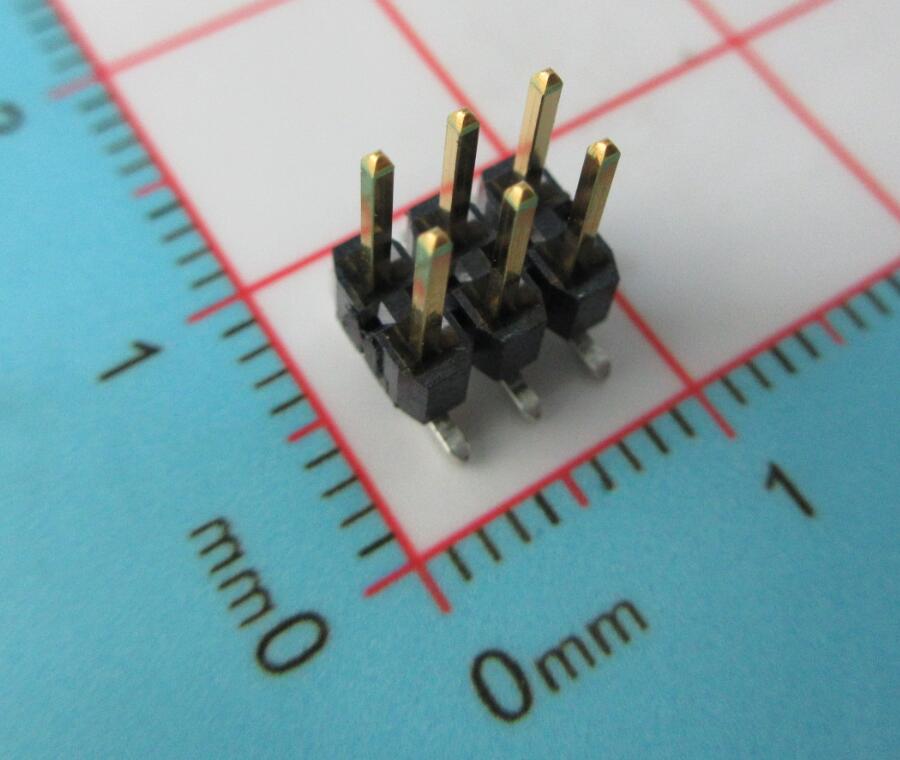

Description:
| Manufacturer | Samtec Inc. | Manufacturer's Part # | TSM-103-01-S-DV |
|---|---|---|---|
| Categories | Connectors, Interconnects | Sub-Categories | Rectangular Connectors - Headers, Male Pins |
| Series | TSM | Part Status | Active |
| Connector Type | Header | Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) | Number of Positions | 6 |
| Number of Rows | 2 | Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Mounting Type | Surface Mount |
| Termination | Solder | Fastening Type | Push-Pull |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Length - Post | - |
| Overall Contact Length | - | Insulation Height | 0.100" (2.54mm) |
| Contact Shape | Square | Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze | Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - | Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - | Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black | Current Rating | - |
| Voltage Rating | - |
