Description:

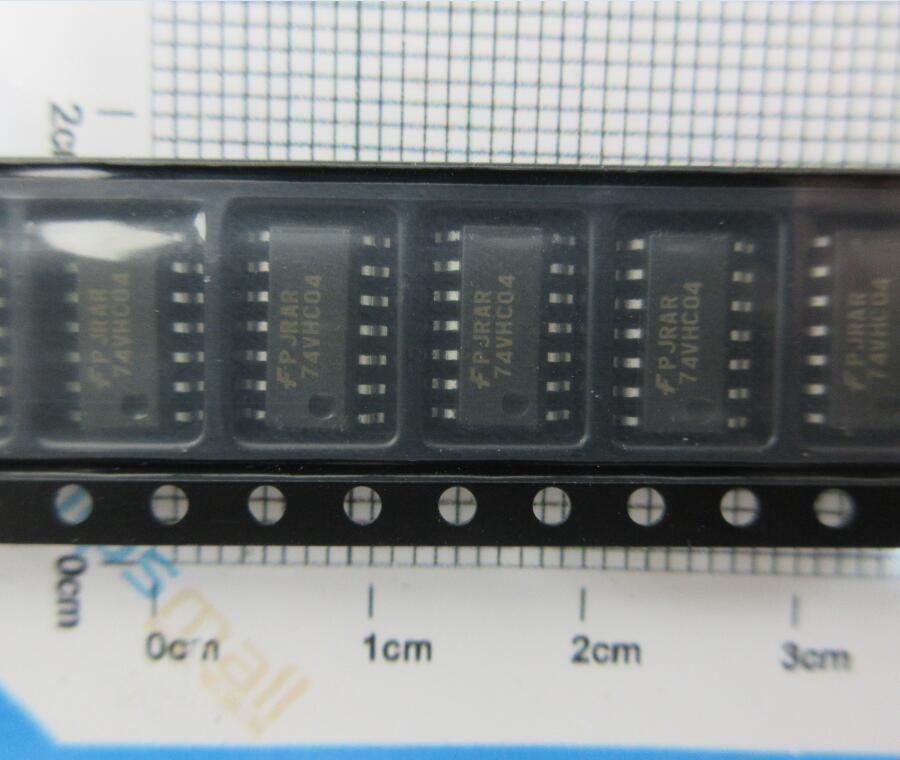

| Manufacturer | ON Semiconductor | Manufacturer's Part # | 74VHC04MX |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Logic - Gates and Inverters |
| Series | 74VHC | Part Status | Active |
| Logic Type | Inverter | Number of Circuits | 6 |
| Number of Inputs | 6 | Features | - |
| Voltage - Supply | 2V ~ 5.5V | Current - Quiescent (Max) | 2µA |
| Current - Output High, Low | 8mA, 8mA | Logic Level - Low | 0.5V |
| Logic Level - High | 1.5V | Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC | Package / Case | 14-SOIC (0.154", 3.90mm Width) |
