Description:

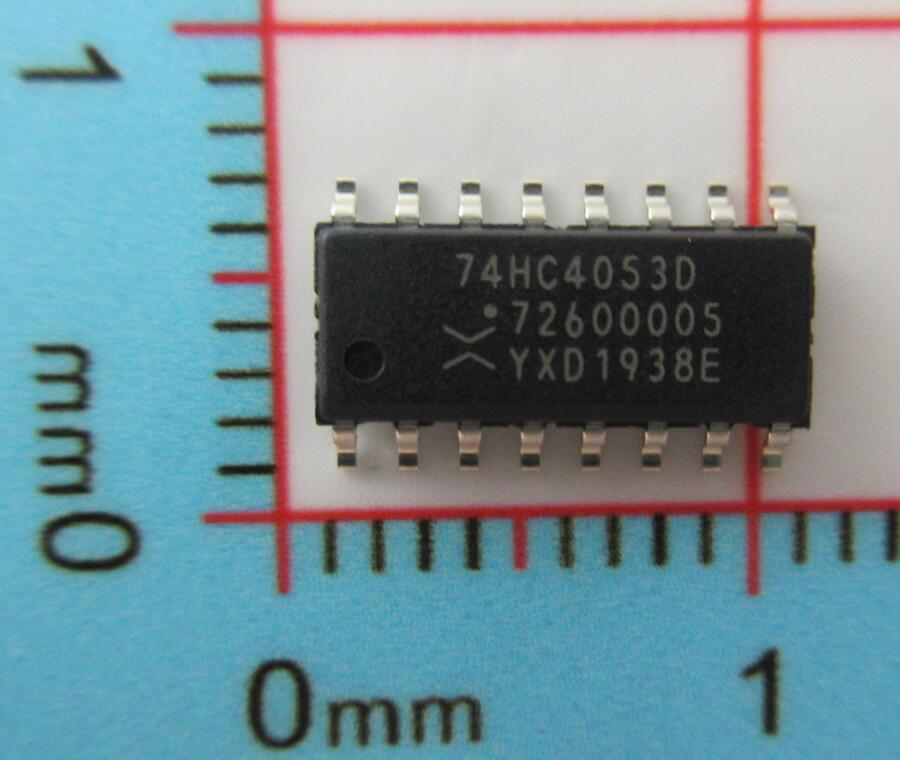

| Manufacturer | Toshiba Semiconductor and Storage | Manufacturer's Part # | 74HC4053D |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Series | - | Part Status | Active |
| Switch Circuit | - | Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 | On-State Resistance (Max) | 100 Ohm |
| Channel-to-Channel Matching (ΔRon) | 5 Ohm (Typ) | Voltage - Supply, Single (V+) | 2V ~ 6V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | 38ns, 38ns |
| -3db Bandwidth | 200MHz | Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF | Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -50dB @ 1MHz | Operating Temperature | -40°C ~ 85°C |

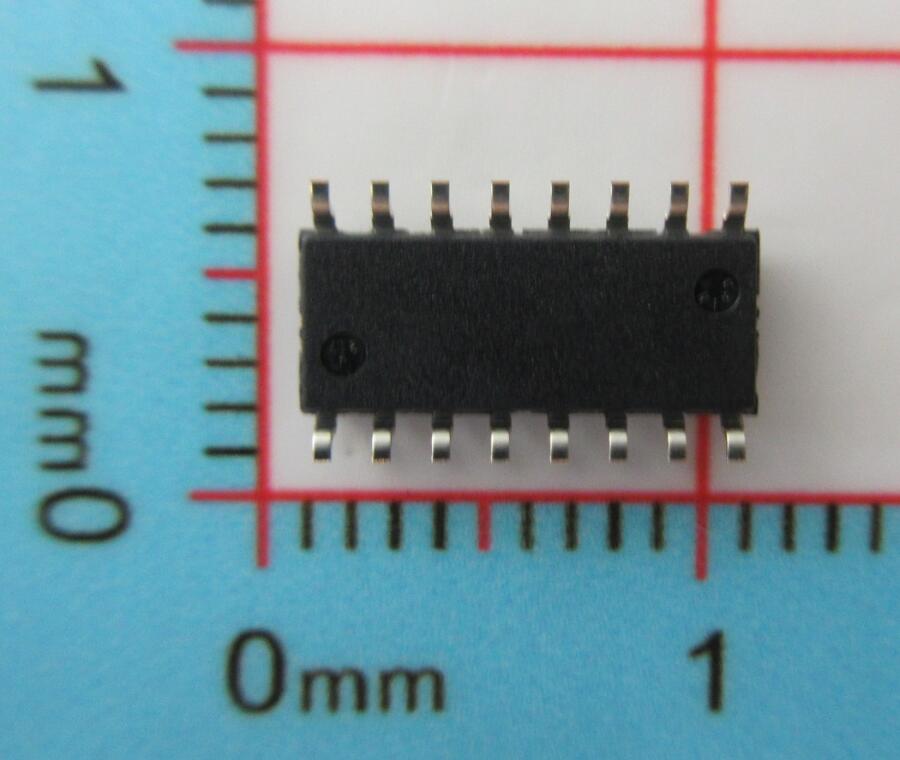

| Package / Case | 16-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 16-SOIC |
