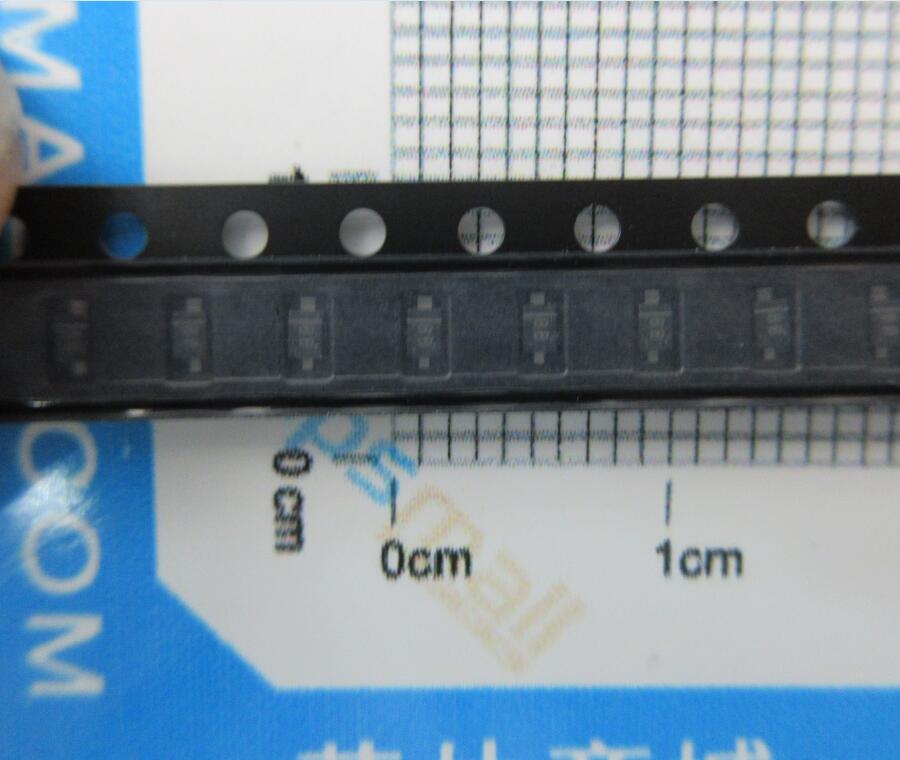

Description:
| Manufacturer | Panasonic | Manufacturer's Part # | DB2J40700L |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Diodes - Rectifiers - Single |
| Series | - | Part Status | Active |
| Diode Type | Schottky | Voltage - DC Reverse (Vr) (Max) | 40V |
| Current - Average Rectified (Io) | 500mA | Voltage - Forward (Vf) (Max) @ If | 550mV @ 500mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Reverse Recovery Time (trr) | 3.6ns |
| Current - Reverse Leakage @ Vr | 100µA @ 35V | Capacitance @ Vr, F | 10.5pF @ 10V, 1MHz |
| Mounting Type | Surface Mount | Package / Case | SC-90, SOD-323F |
| Supplier Device Package | SMini2-F5-B | Operating Temperature - Junction | 125°C (Max) |
