Description:
| Manufacturer | Texas Instruments | Manufacturer's Part # | TPS7A3001DRBT |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Voltage Regulators - Linear |
| Series | - | Part Status | Active |
| Output Configuration | Negative | Output Type | Adjustable |
| Number of Regulators | 1 | Voltage - Input (Max) | -35V |
| Voltage - Output (Min/Fixed) | -1.18V | Voltage - Output (Max) | -33V |
| Voltage Dropout (Max) | 0.6V @ 200mA | Current - Output | 200mA |
| Current - Quiescent (Iq) | 100µA | Current - Supply (Max) | 950µA |
| PSRR | 72dB (120Hz) | Control Features | Enable, Soft Start |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 125°C |

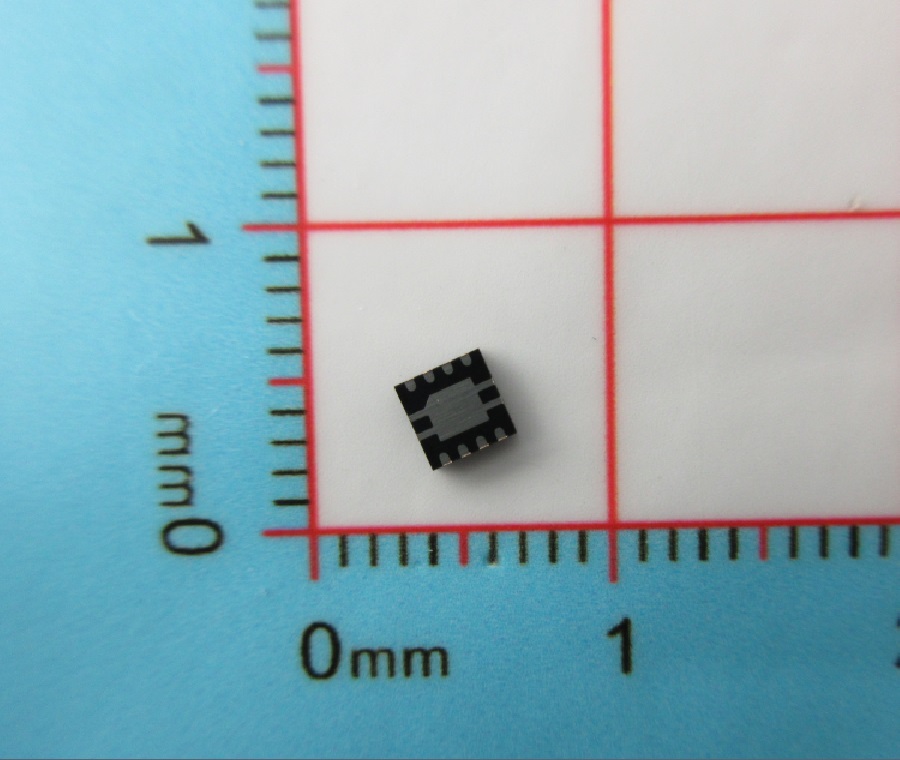

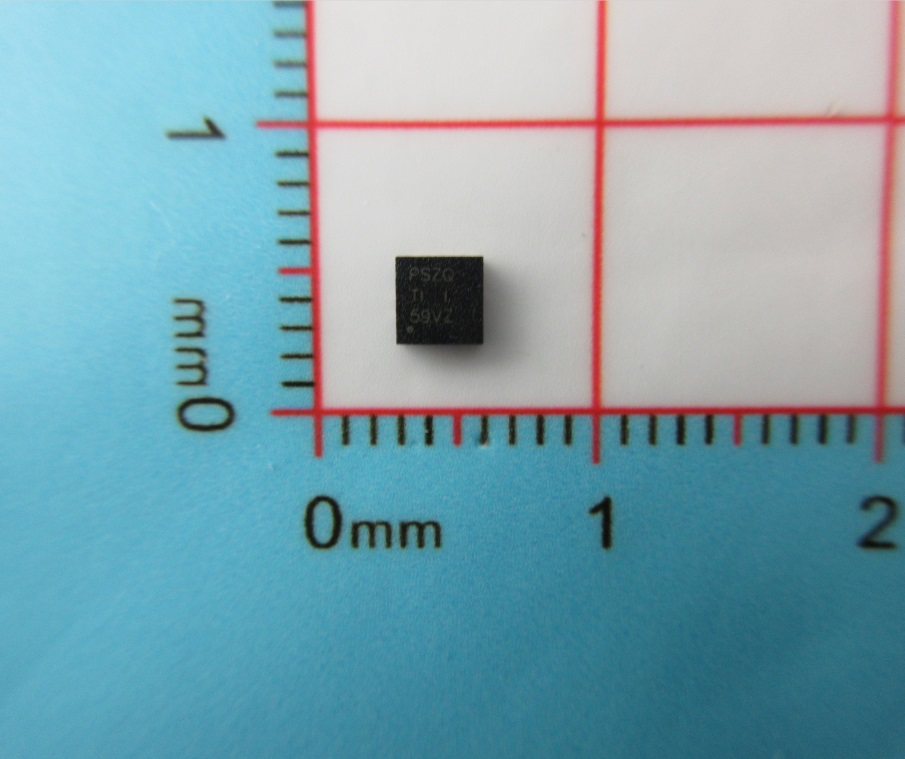

| Mounting Type | Surface Mount | Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-SON (3x3) |
