Description:

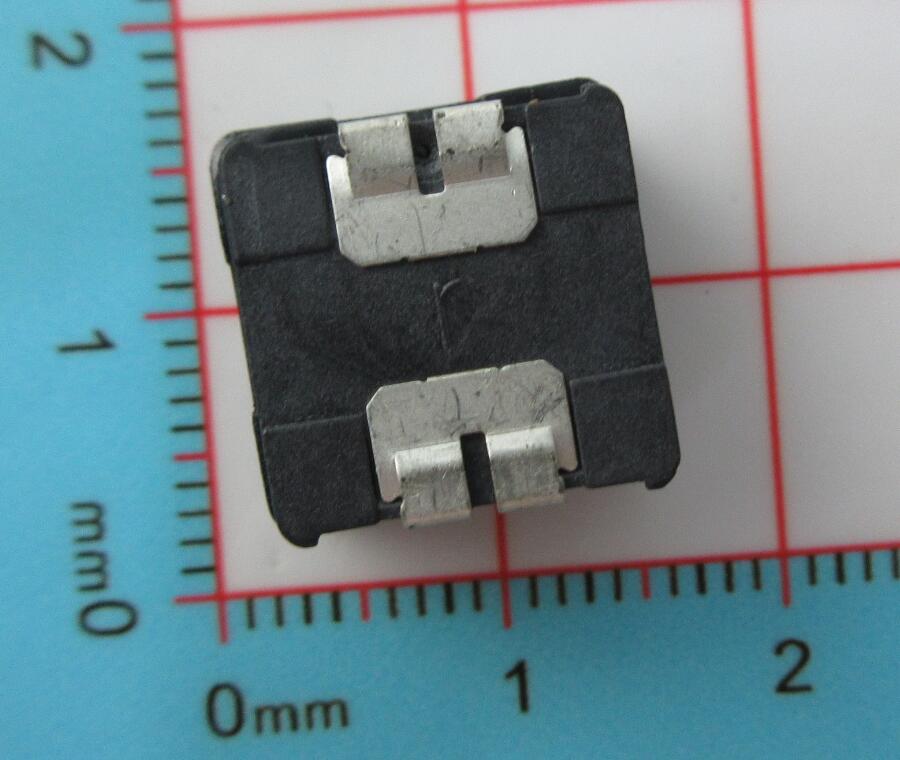

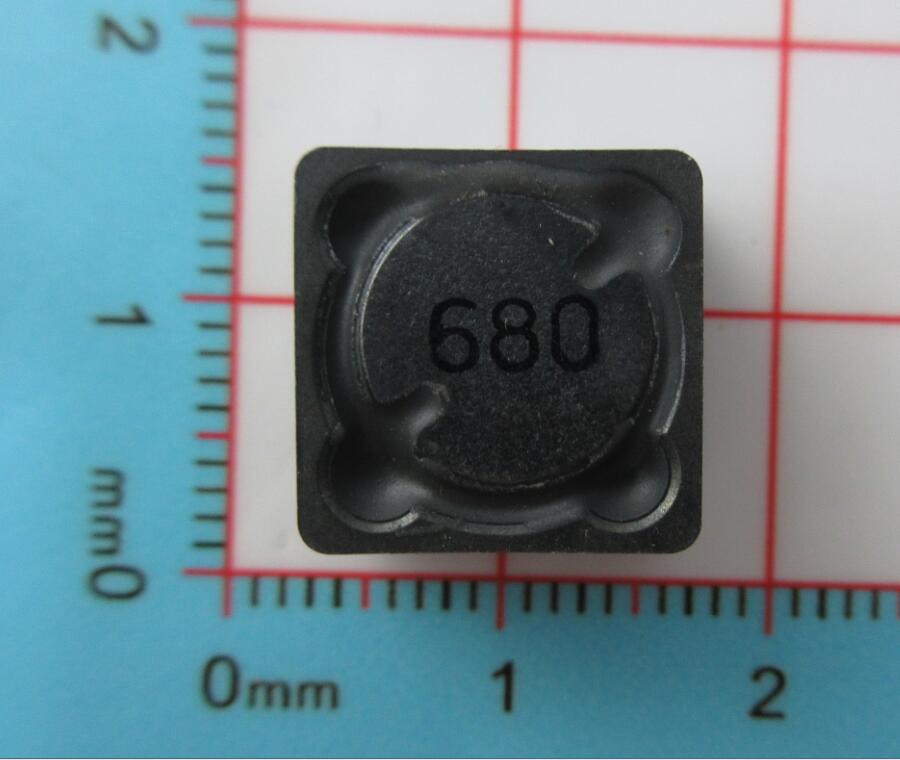

| Manufacturer | Bourns | Manufacturer's Part # | SRR1208-680Y |
|---|---|---|---|
| Categories | Inductors, Coils, Chokes | Sub-Categories | Fixed Inductors |
| Series | SRR1208 | Part Status | Obsolete |
| Type | Wirewound | Material - Core | Ferrite |
| Inductance | 68µH | Tolerance | ±15% |
| Current Rating | 1.8A | Current - Saturation | 2.6A |
| Shielding | Shielded | DC Resistance (DCR) | 135 mOhm Max |
| Q @ Freq | 20 @ 2.52MHz | Frequency - Self Resonant | 5MHz |
| Ratings | - | Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1kHz | Features | - |
| Mounting Type | Surface Mount | Package / Case | Nonstandard |
| Supplier Device Package | - | Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
