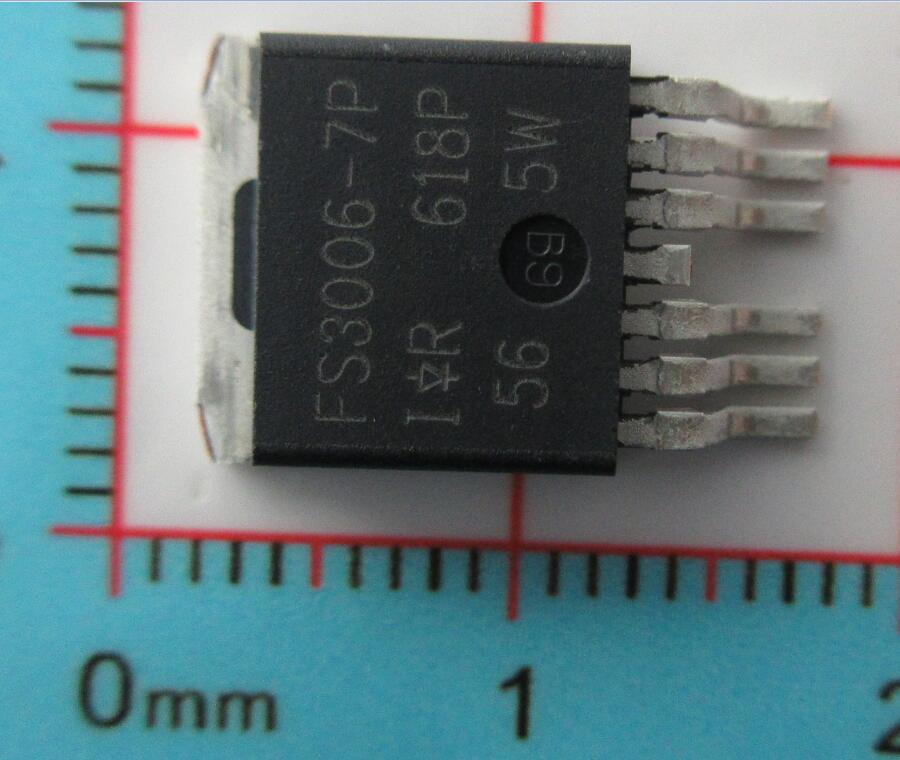

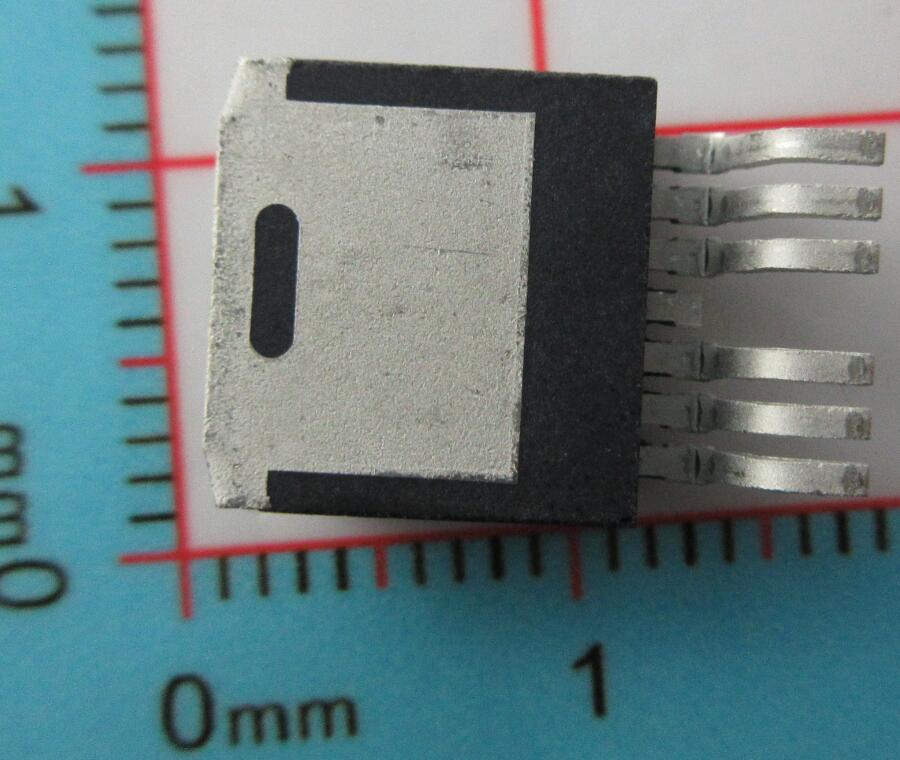

Description:
| Manufacturer | Infineon Technologies | Manufacturer's Part # | IRFS3006TRL7PP |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | HEXFET® | Part Status | Active |
| FET Type | N-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60V | Current - Continuous Drain (Id) @ 25°C | 240A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Rds On (Max) @ Id, Vgs | 2.1 mOhm @ 168A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 300nC @ 10V |
| Vgs (Max) | ±20V | Input Capacitance (Ciss) (Max) @ Vds | 8850pF @ 50V |
| FET Feature | - | Power Dissipation (Max) | 375W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK (7-Lead) | Package / Case | TO-263-7, D²Pak (6 Leads + Tab), TO-263CB |
