Description:

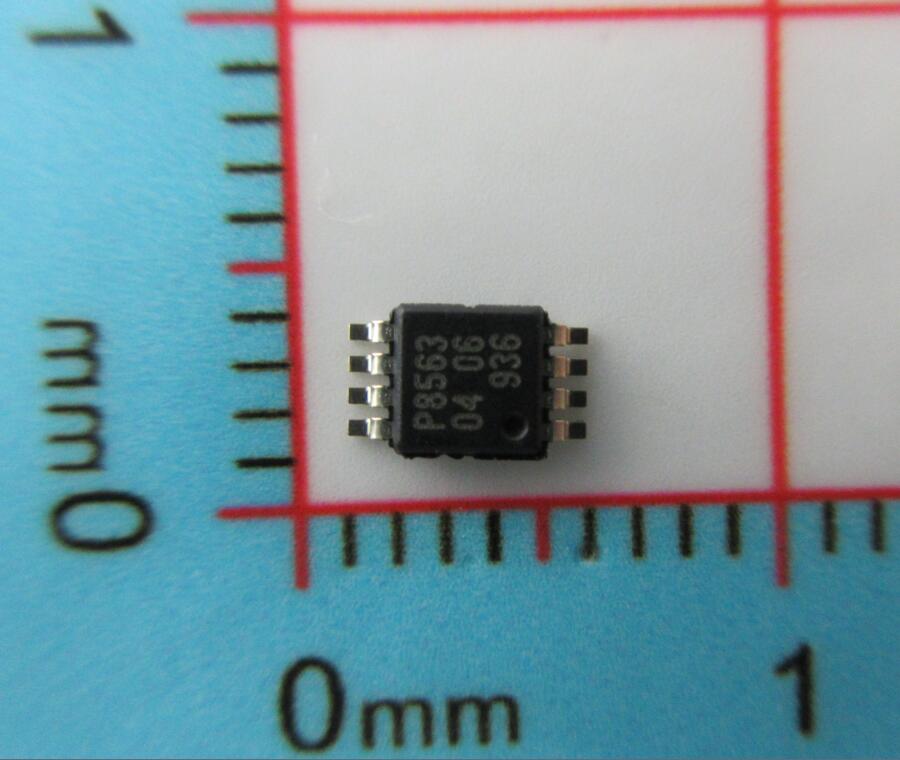

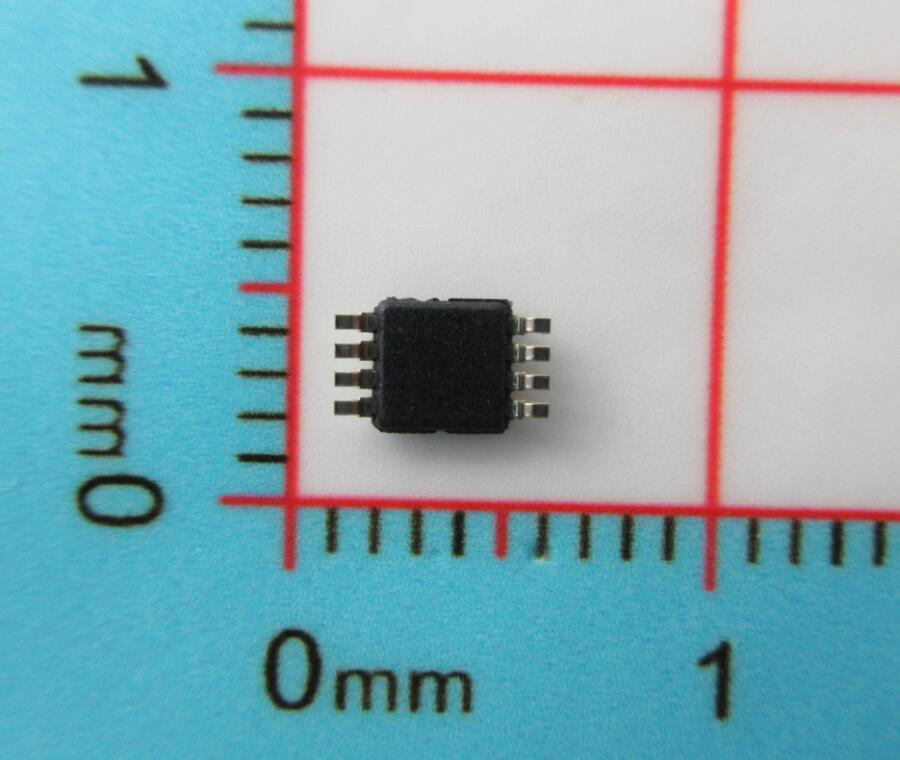

| Manufacturer | NXP Semiconductors | Manufacturer's Part # | PCF8563TS/5,118 |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Clock/Timing - Real Time Clocks |
| Series | - | Part Status | Active |
| Type | Clock/Calendar | Features | Alarm, Leap Year, Watchdog Timer |
| Memory Size | - | Time Format | HH:MM:SS (24 hr) |
| Date Format | YY-MM-DD-dd | Interface | I²C, 2-Wire Serial |
| Voltage - Supply | 1.8V ~ 5.5V | Voltage - Supply, Battery | - |
| Current - Timekeeping (Max) | 0.6µA ~ 0.75µA @ 2V ~ 5V | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-TSSOP |
