Description:

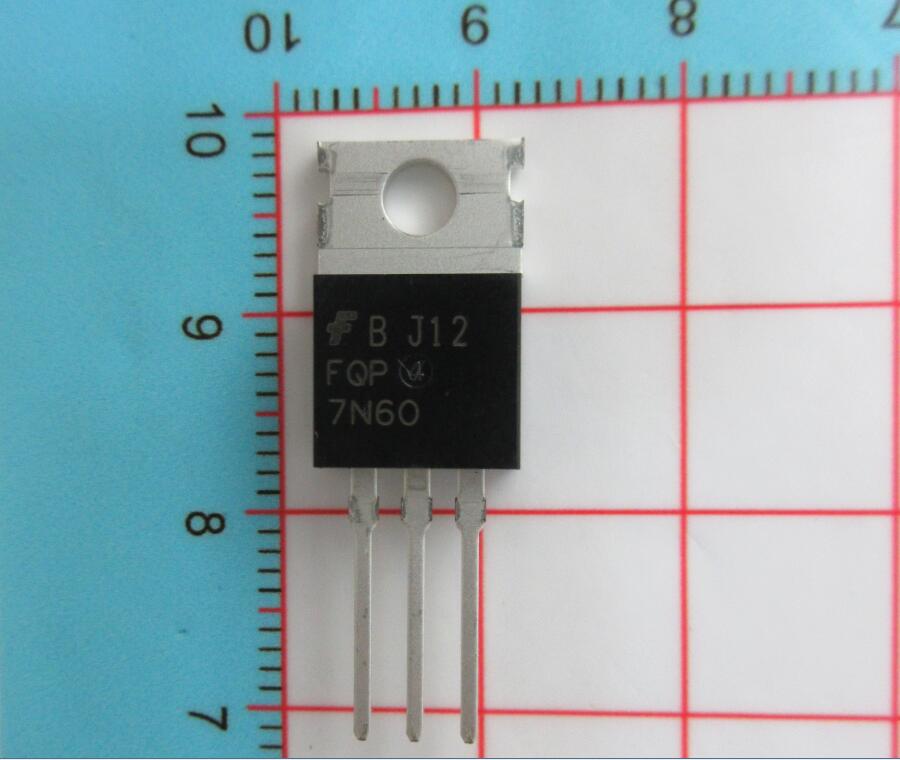

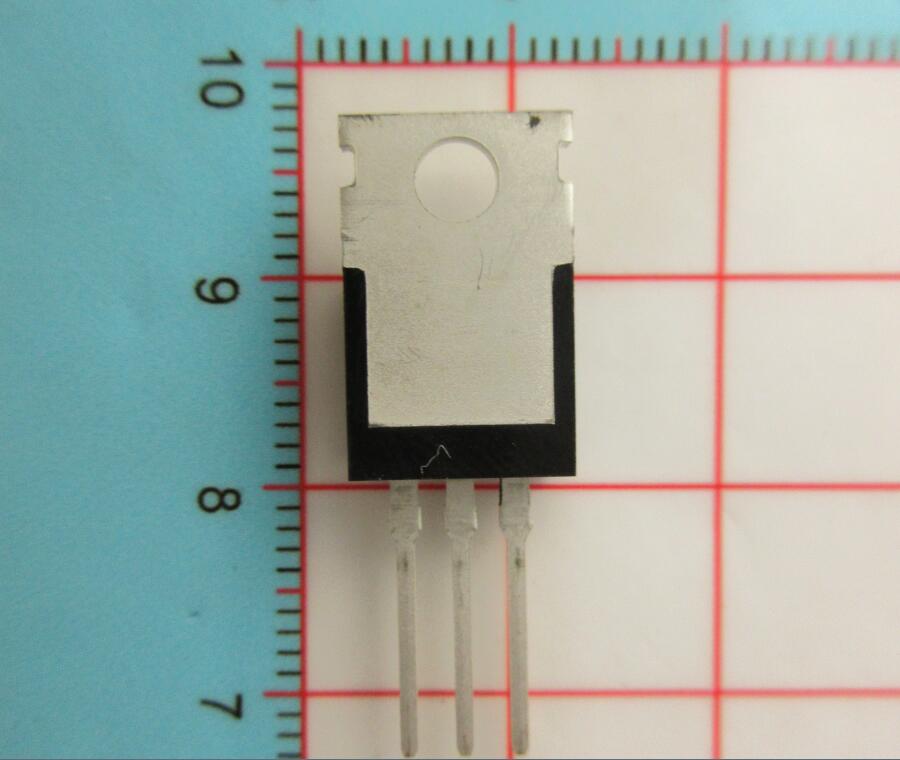

| Manufacturer | ON Semiconductor | Manufacturer's Part # | FQP7N60 |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | QFET® | Part Status | Obsolete |
| FET Type | N-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600V | Current - Continuous Drain (Id) @ 25°C | 7.4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Rds On (Max) @ Id, Vgs | 1 Ohm @ 3.7A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 38nC @ 10V |
| Vgs (Max) | ±30V | Input Capacitance (Ciss) (Max) @ Vds | 1430pF @ 25V |
| FET Feature | - | Power Dissipation (Max) | 142W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Supplier Device Package | TO-220-3 | Package / Case | TO-220-3 |
