Description:

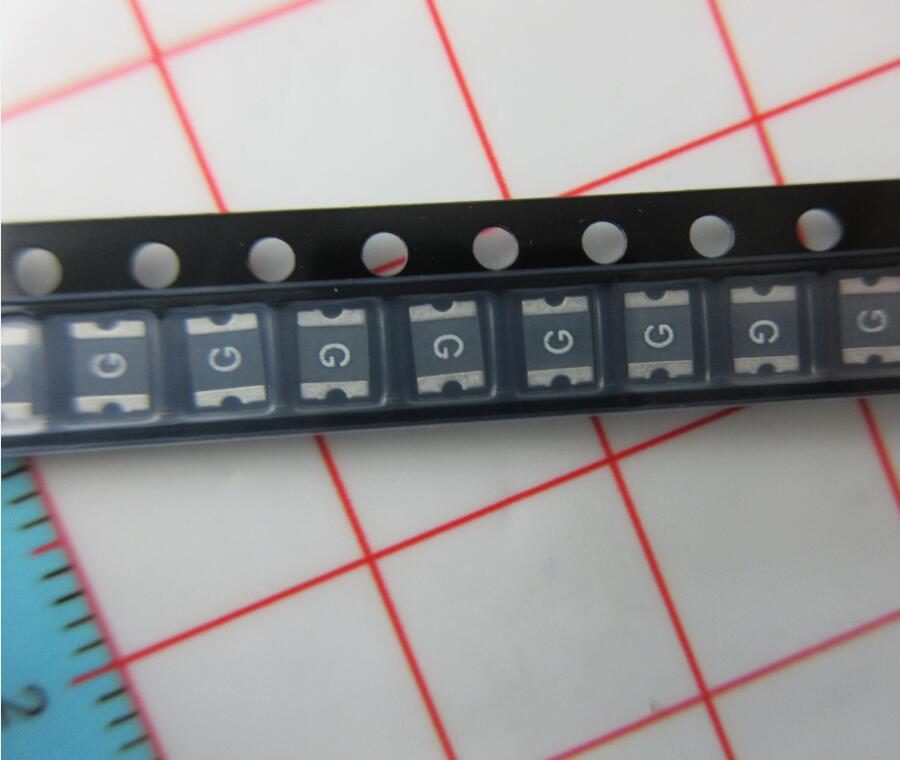

| Manufacturer | Littelfuse | Manufacturer's Part # | 1210L075YR |
|---|---|---|---|
| Categories | Circuit Protection | Sub-Categories | PTC Resettable Fuses |
| Series | POLY-FUSE®, 1210L | Material Type | Polymeric |
| Voltage - Max | 24V | Current - Max | 100A |
| Current - Hold (Ih) | 750mA | Current - Trip (It) | 1.5A |
| Maximum Time to Trip | 100ms | Typical Power Dissipation | - |
| Resistance - Initial (Ri) (Min) | 130mΩ | Resistance - Post Trip (R1) (Max) | 400mΩ |
| Operating Temperature | -40℃~85℃ |
