Description:

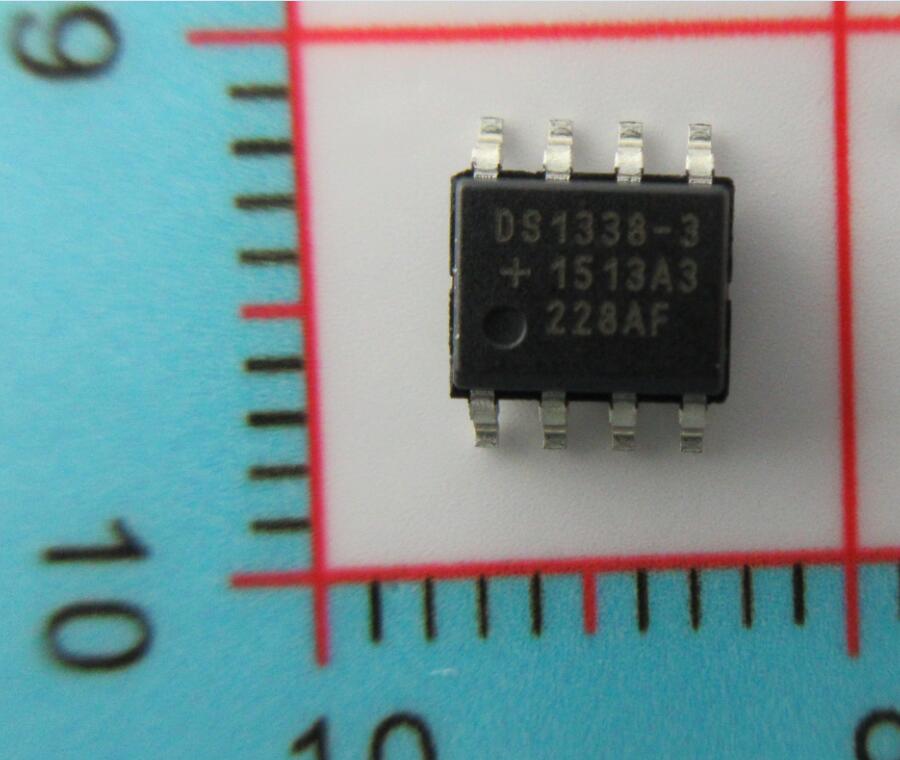

| Manufacturer | Maxim Integrated | Manufacturer's Part # | DS1338Z-3+ |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Clock/Timing - Real Time Clocks |
| Series | - | Part Status | Active |
| Type | Clock/Calendar | Features | Leap Year, NVSRAM, Square Wave Output |
| Memory Size | 56B | Time Format | HH:MM:SS (12/24 hr) |
| Date Format | YY-MM-DD-dd | Interface | I²C, 2-Wire Serial |
| Voltage - Supply | 2.7V ~ 5.5V | Voltage - Supply, Battery | 1.3V ~ 3.7V |
| Current - Timekeeping (Max) | 200µA @ 3.3V | Operating Temperature | -40°C ~ 85°C |

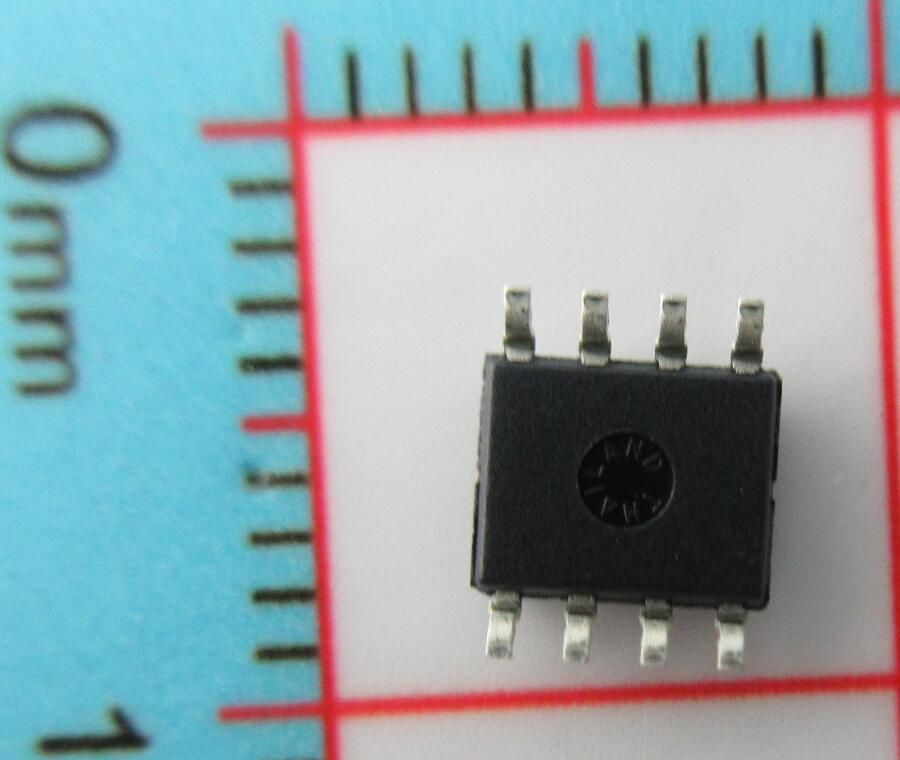

| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
