Description:

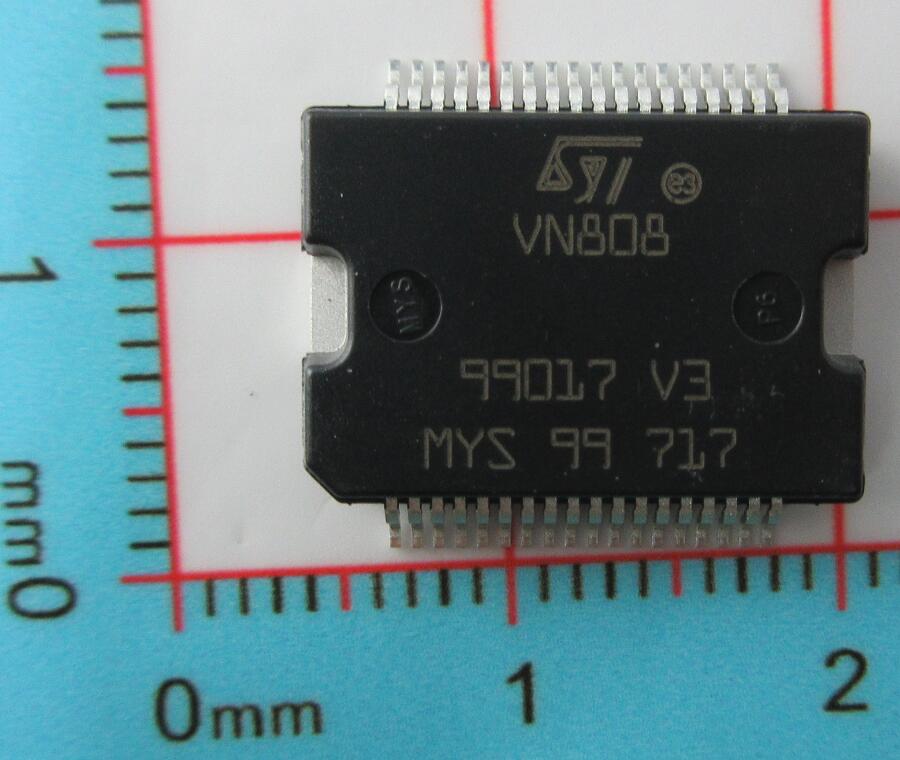

| Manufacturer | STMicroelectronics | Manufacturer's Part # | VN808-E |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Power Distribution Switches, Load Drivers |
| Series | VIPower™ | Part Status | Active |
| Switch Type | General Purpose | Number of Outputs | 8 |
| Ratio - Input:Output | 1:1 | Output Configuration | High Side |
| Output Type | N-Channel | Interface | On/Off |
| Voltage - Load | 10.5V ~ 45V | Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 700mA | Rds On (Typ) | 150 mOhm |
| Input Type | Non-Inverting | Features | Auto Restart, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature | Operating Temperature | -40°C ~ 125°C (TJ) |

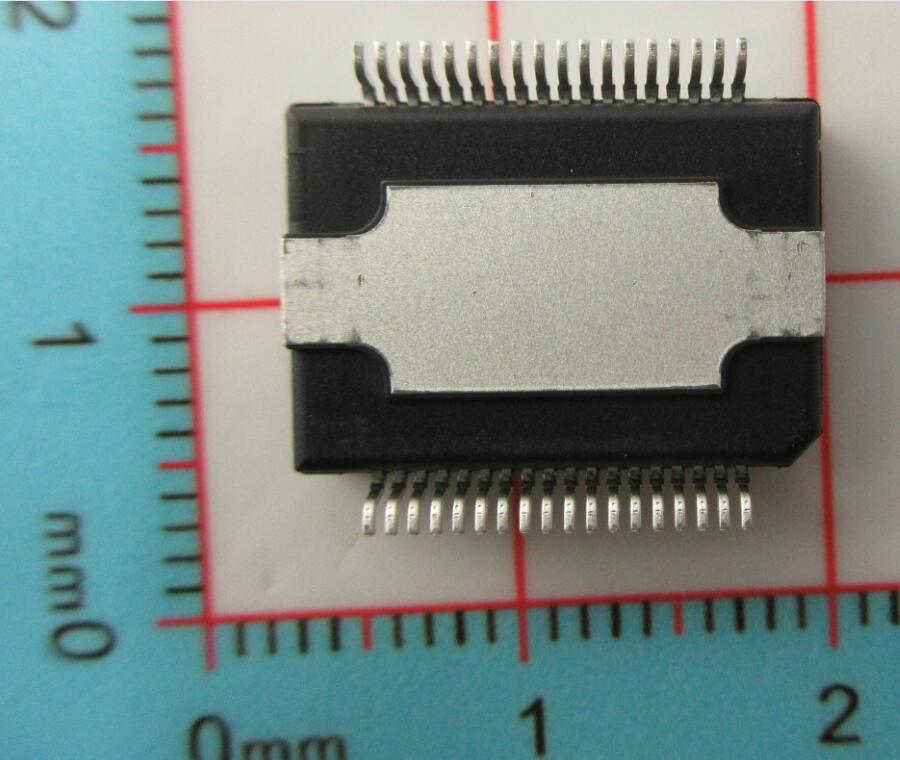

| Package / Case | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | Supplier Device Package | PowerSO-36 |
