Description:

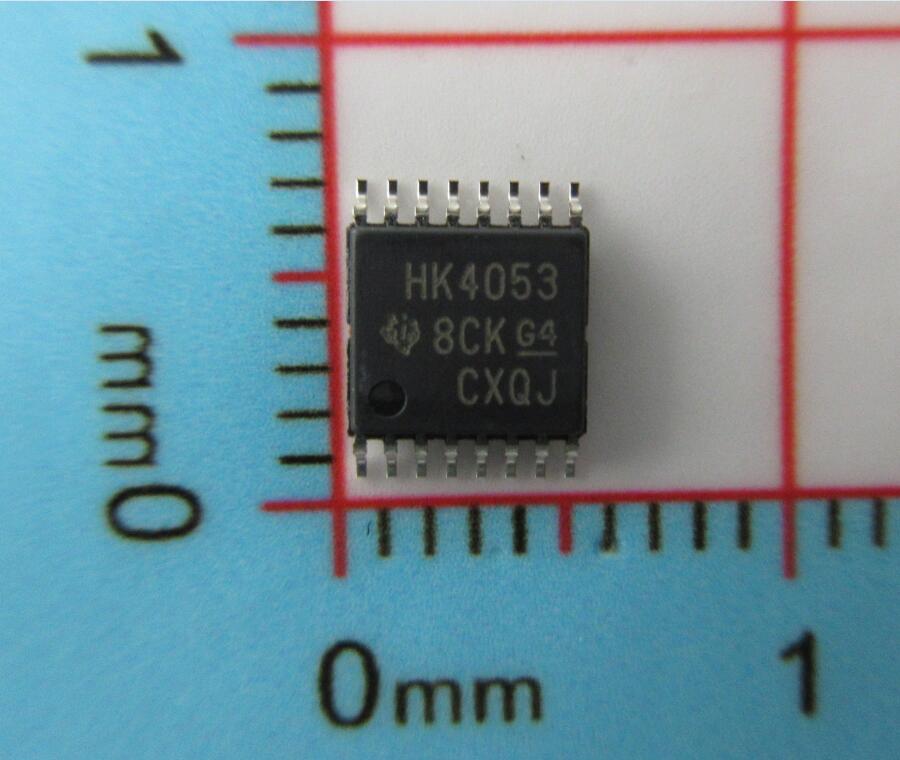

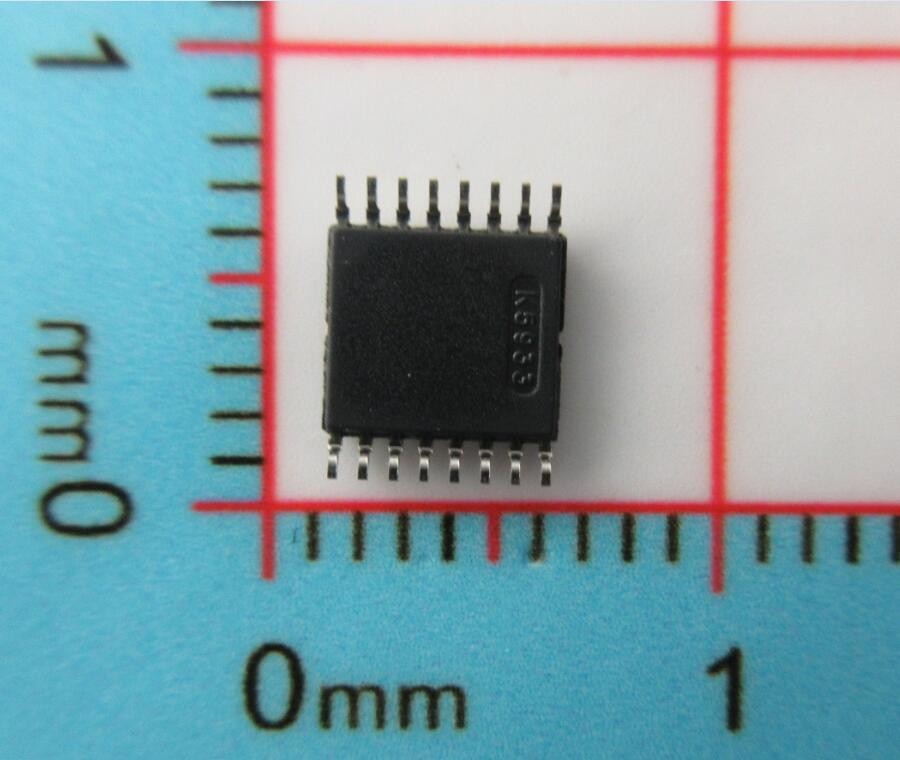

| Manufacturer | Texas Instruments | Manufacturer's Part # | CD74HCT4053PW |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Series | - | Part Status | Active |
| Switch Circuit | SPDT | Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 3 | On-State Resistance (Max) | 130 Ohm |
| Channel-to-Channel Matching (ΔRon) | 5 Ohm | Voltage - Supply, Single (V+) | 4.5V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±1V ~ 5V | Switch Time (Ton, Toff) (Max) | - |
| -3db Bandwidth | 200MHz | Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 8pF | Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | - | Operating Temperature | -55°C ~ 125°C (TA) |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) | Supplier Device Package | 16-TSSOP |
