Description:

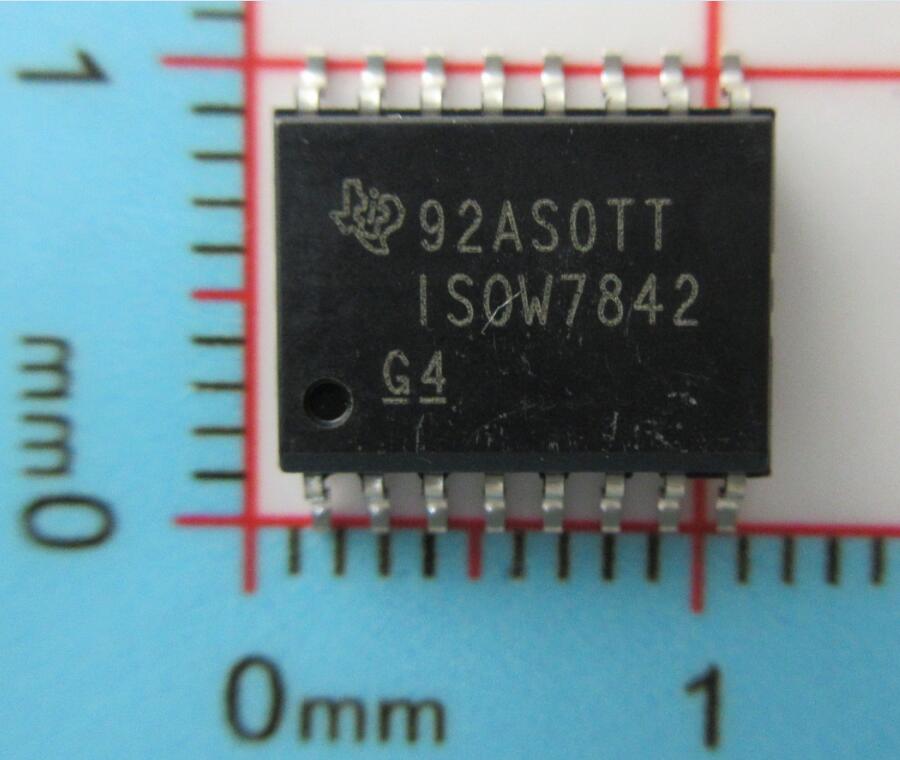

| Manufacturer | Texas Instruments | Manufacturer's Part # | ISOW7842DWER |
|---|---|---|---|
| Categories | Isolators | Sub-Categories | Digital Isolators |
| Series | - | Part Status | Active |
| Technology | Capacitive Coupling | Type | General Purpose |
| Isolated Power | Yes | Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 2/2 | Channel Type | Unidirectional |
| Voltage - Isolation | 5000Vrms | Common Mode Transient Immunity (Min) | 100kV/µs |
| Data Rate | 100Mbps | Propagation Delay tpLH / tpHL (Max) | 17.6ns, 17.6ns |
| Pulse Width Distortion (Max) | 4.7ns | Rise / Fall Time (Typ) | 2ns, 2ns |
| Voltage - Supply | 3V ~ 5.5V | Operating Temperature | -40°C ~ 125°C |

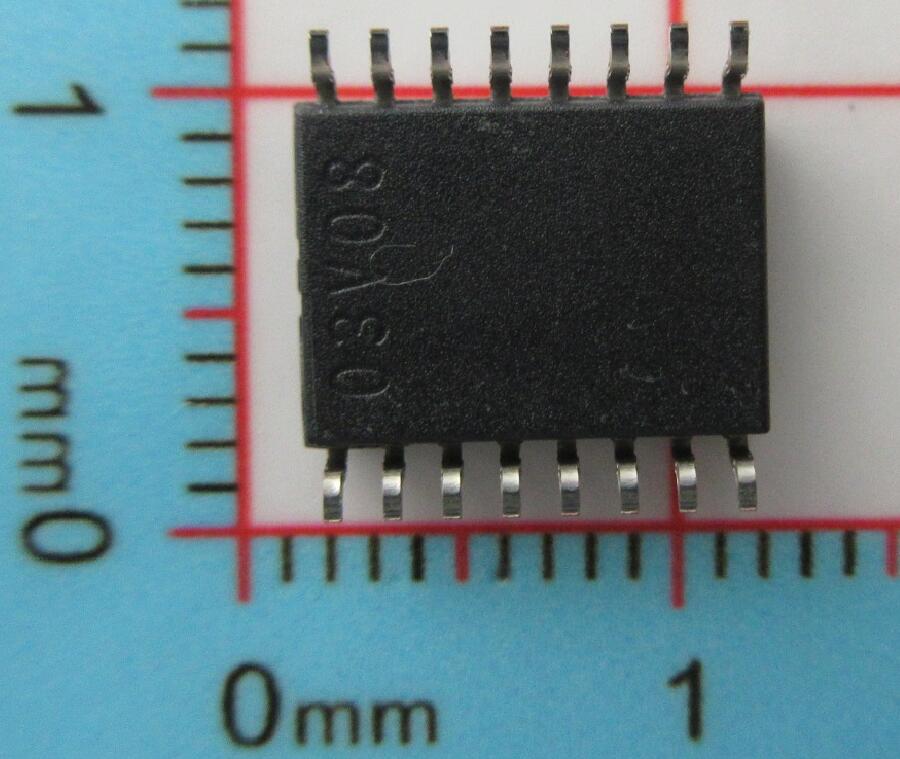

| Mounting Type | Surface Mount | Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
