Description:

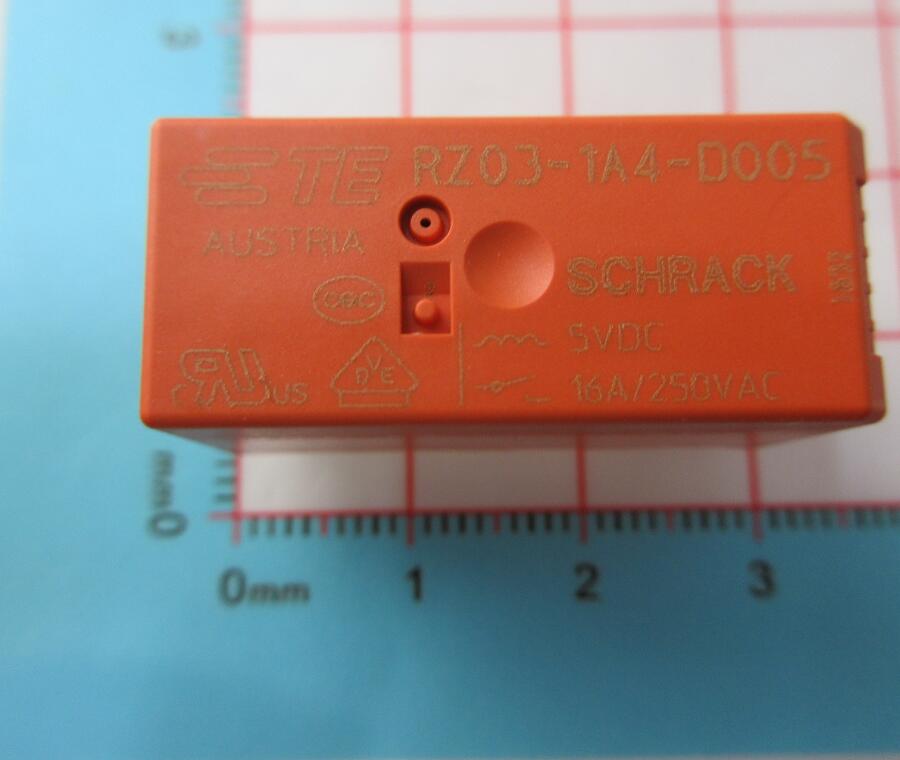

| Manufacturer | TE Connectivity | Manufacturer's Part # | RZ03-1A4-D005 |
|---|---|---|---|
| Categories | Relays | Sub-Categories | Power Relays, Over 2 Amps |
| Series | RZ, SCHRACK | Part Status | Active |
| Mounting Type | Through Hole | Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) | Contact Rating (Current) | 16A |
| Switching Voltage | 400VAC - Max | Coil Current | 84.0mA |
| Coil Type | Non Latching | Features | Insulation - Class F |
| Termination Style | PC Pin | Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.5 VDC | Operate Time | 8ms |
| Release Time | 6ms | Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) | Relay Type | General Purpose |
