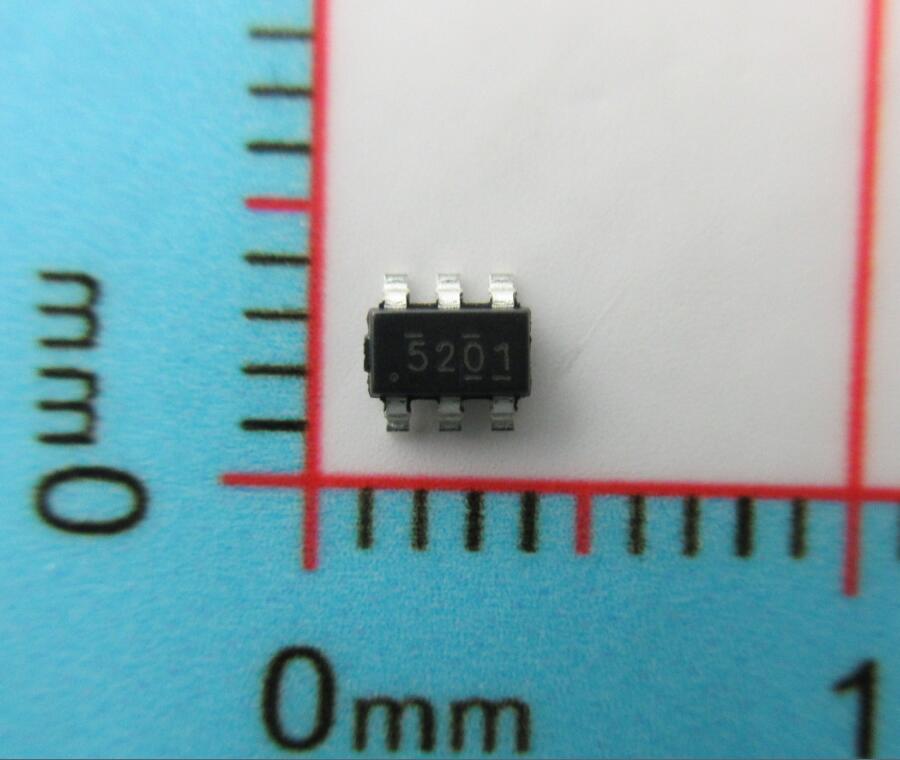

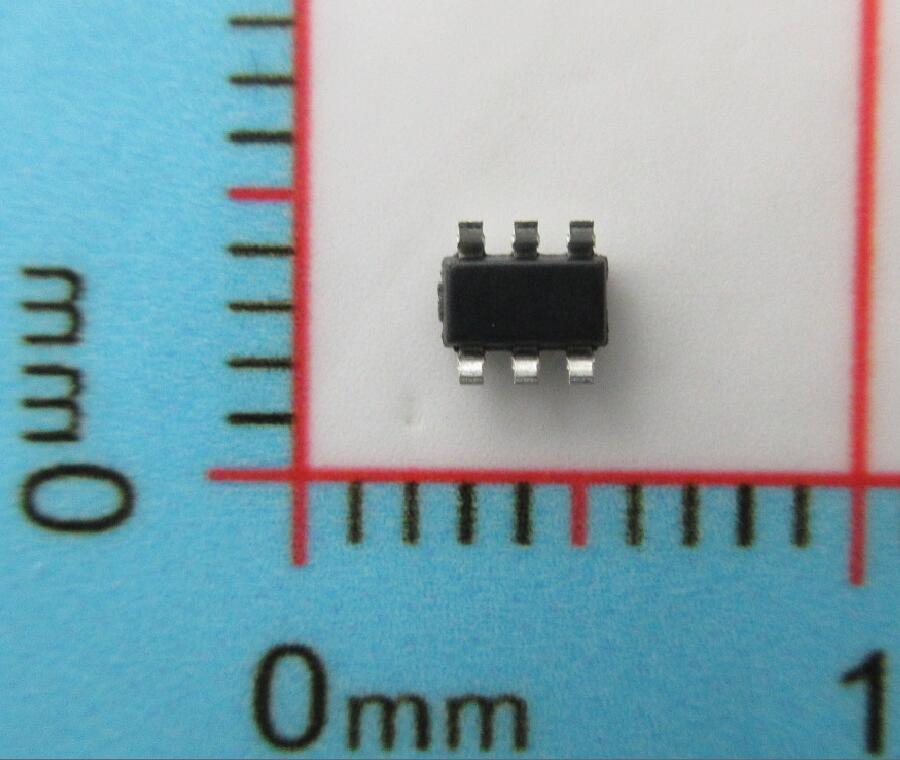

Description:
| Manufacturer | Texas Instruments | Manufacturer's Part # | TPS565201DDCT |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Series | D-CAP2™, Eco-Mode™ | Part Status | Active |
| Function | Step-Down | Output Configuration | Positive |
| Topology | Buck | Output Type | Adjustable |
| Number of Outputs | 1 | Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 17V | Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 7V | Current - Output | 5A |
| Frequency - Switching | 500kHz | Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 | Supplier Device Package | TSOT-23-6 |
