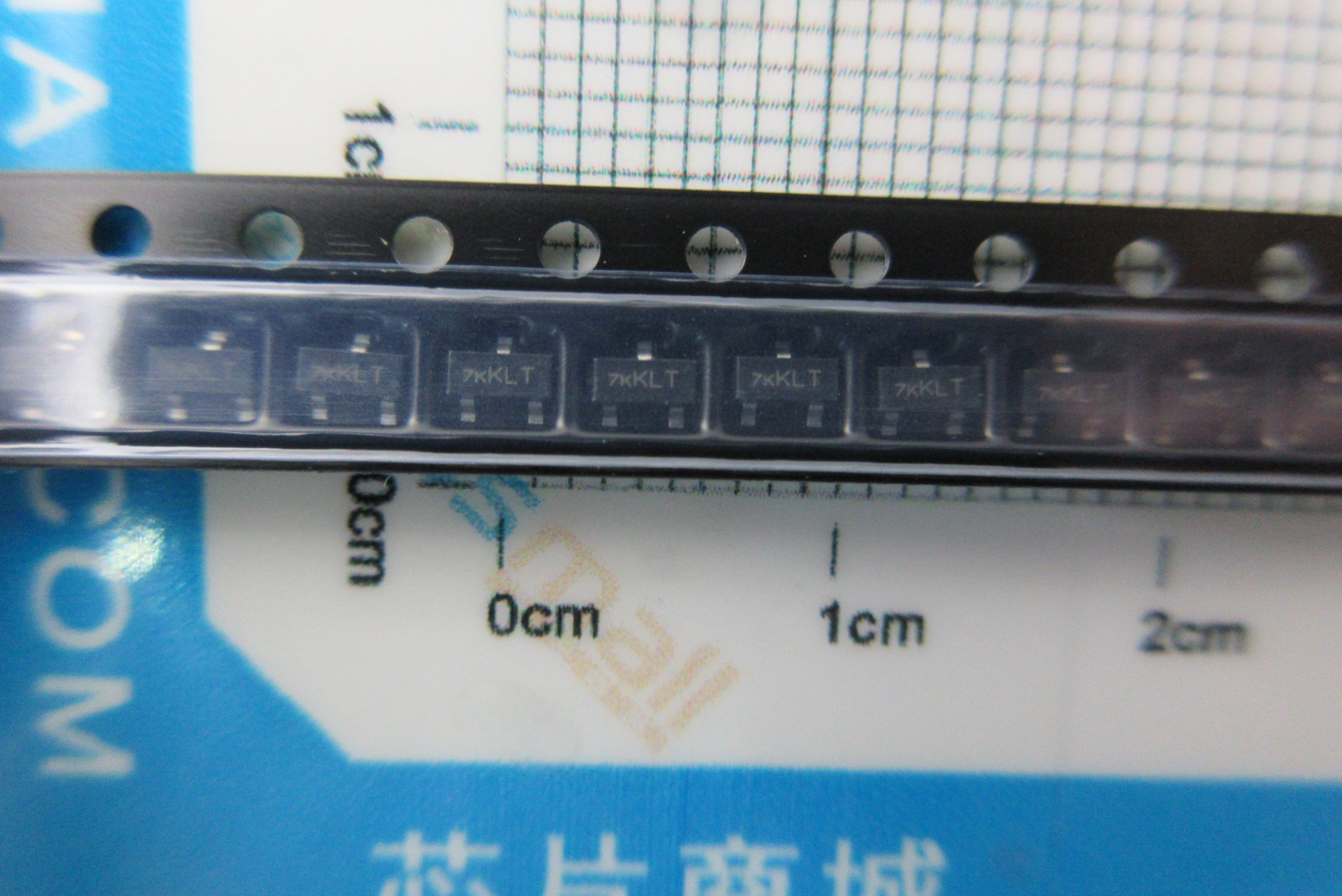

Part No.：2N7002K-T1-E3
Category：Semiconductor
Manufacturer：Vishay
Date Code：
Package Type：SOT-23
Quantity：100000
Click：12
Update Time：2022-05-14 11:18:29
Description:
| Manufacturer | Vishay | Manufacturer's Part # | 2N7002K-T1-E3 |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | TrenchFET® | Part Status | Active |
| FET Type | N-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60V | Current - Continuous Drain (Id) @ 25°C | 300mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Rds On (Max) @ Id, Vgs | 2 Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 0.6nC @ 4.5V |
| Vgs (Max) | ±20V | Input Capacitance (Ciss) (Max) @ Vds | 30pF @ 25V |
| FET Feature | - | Power Dissipation (Max) | 350mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 (TO-236) | Package / Case | TO-236-3, SC-59, SOT-23-3 |
