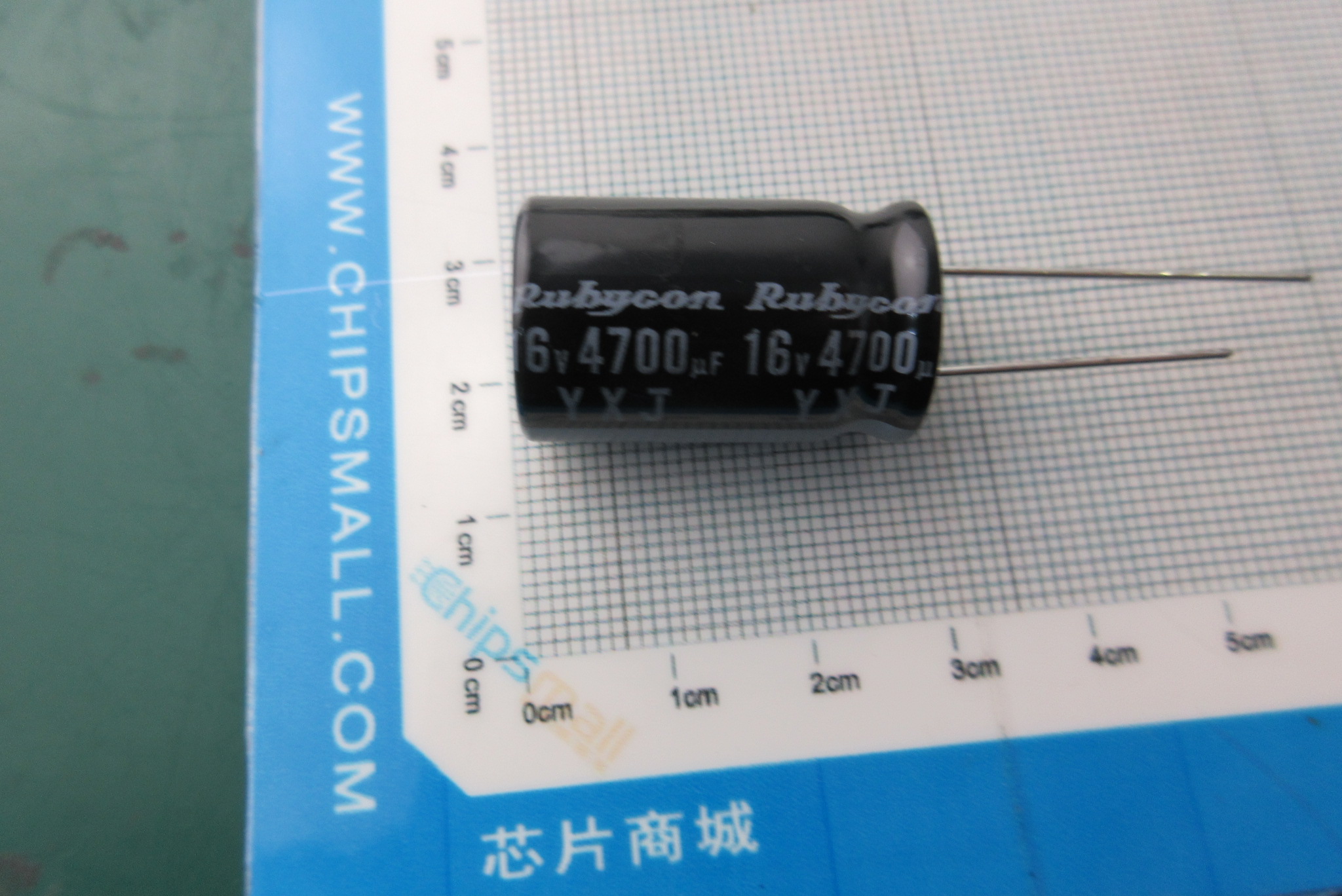

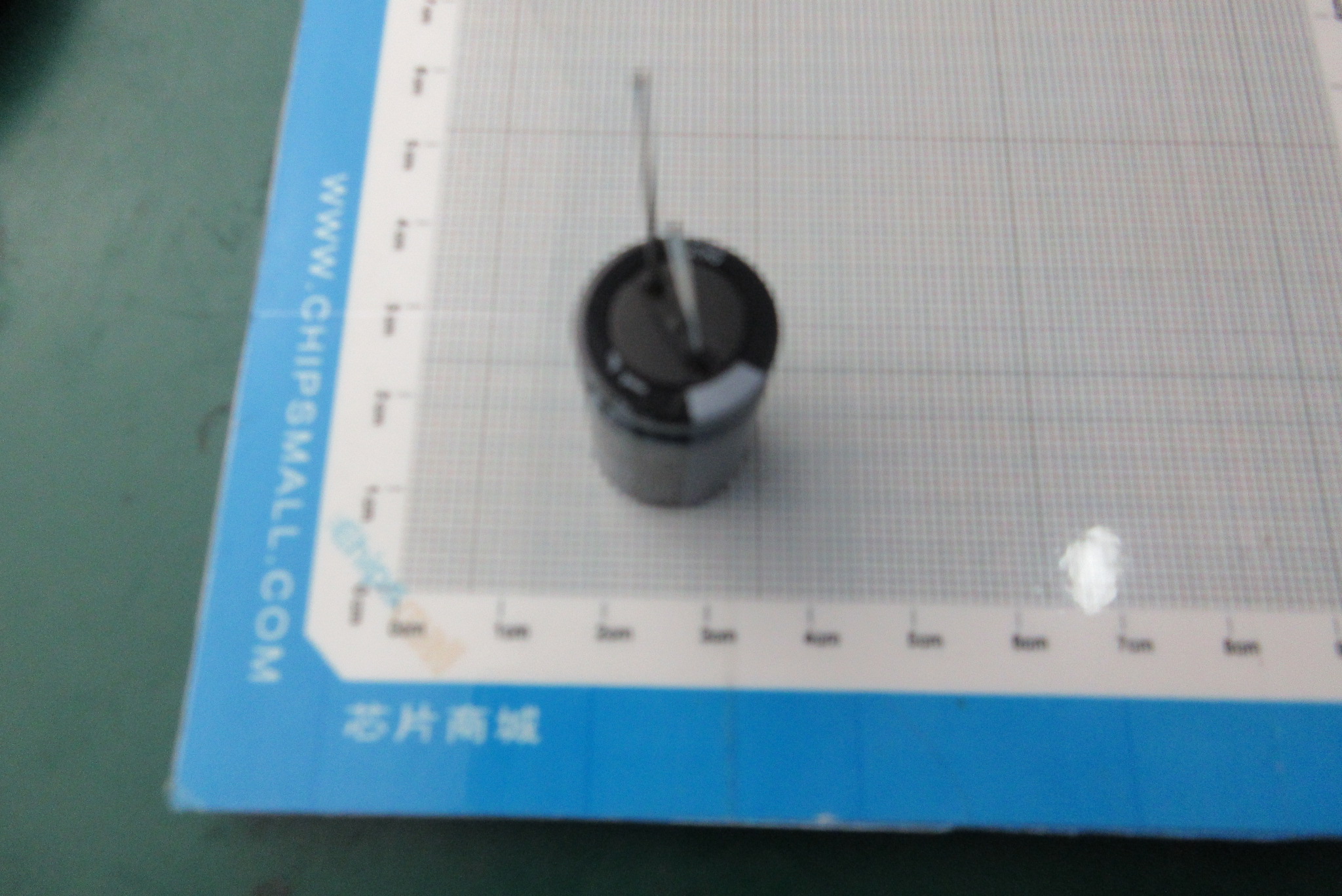

Part No.：16YXJ4700M16X25
Category：Capacitors
Manufacturer：Rubycon
Date Code：
Package Type：RADIAL
Quantity：
Click：21
Update Time：2022-05-28 14:50:03
Description:
| Manufacturer | Rubycon | Manufacturer's Part # | 16YXJ4700M16X25 |
|---|---|---|---|
| Categories | Capacitors | Sub-Categories | Aluminum Electrolytic Capacitors |
| Series | YXJ | Part Status | Active |
| Capacitance | 4700µF | Tolerance | ±20% |
| Voltage - Rated | 16V | ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C | Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar | Ratings | - |
| Applications | General Purpose | Ripple Current @ Low Frequency | 2.344A @ 120Hz |
| Ripple Current @ High Frequency | 2.93A @ 100kHz | Impedance | 21 mOhms |
| Lead Spacing | 0.295" (7.50mm) | Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) | Surface Mount Land Size | - |
| Mounting Type | Through Hole | Package / Case | Radial, Can |
