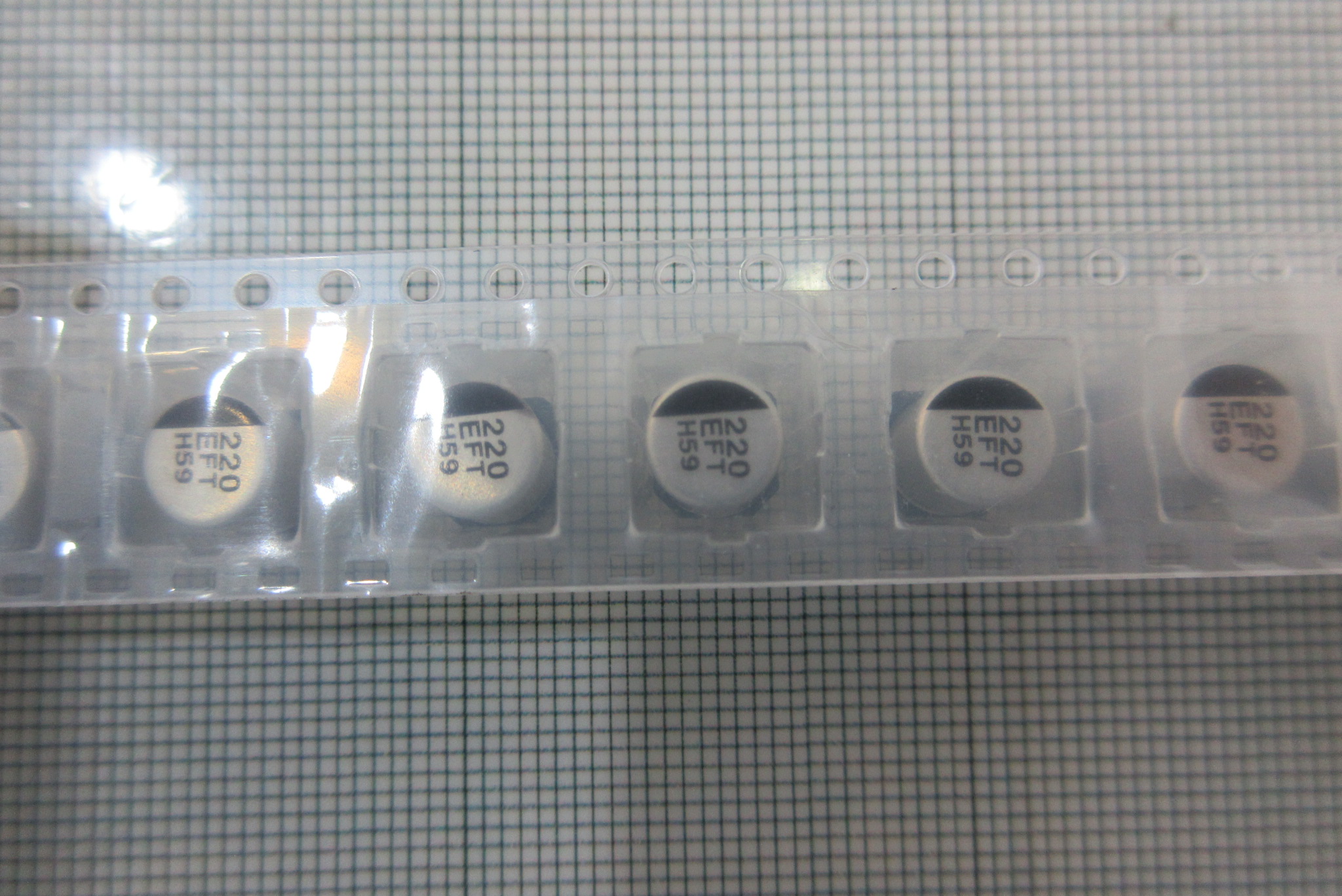

Part No.：EEE-FTE221XAP
Category：Capacitors
Manufacturer：Panasonic
Date Code：
Package Type：20 25V SMD
Quantity：100000
Click：13
Update Time：2022-05-28 15:50:18
Description:
| Manufacturer | Panasonic | Manufacturer's Part # | EEE-FTE221XAP |
|---|---|---|---|
| Categories | Capacitors | Sub-Categories | Aluminum Electrolytic Capacitors |
| Series | FT | Part Status | Active |
| Capacitance | 220µF | Tolerance | ±20% |
| Voltage - Rated | 25V | ESR (Equivalent Series Resistance) | 160 mohm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar | Ratings | AEC-Q200 |
| Applications | Automotive | Ripple Current @ Low Frequency | 390mA @ 120Hz |
| Ripple Current @ High Frequency | 600mA @ 100kHz | Impedance | - |
| Lead Spacing | - | Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) | Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount | Package / Case | Radial, Can - SMD |
