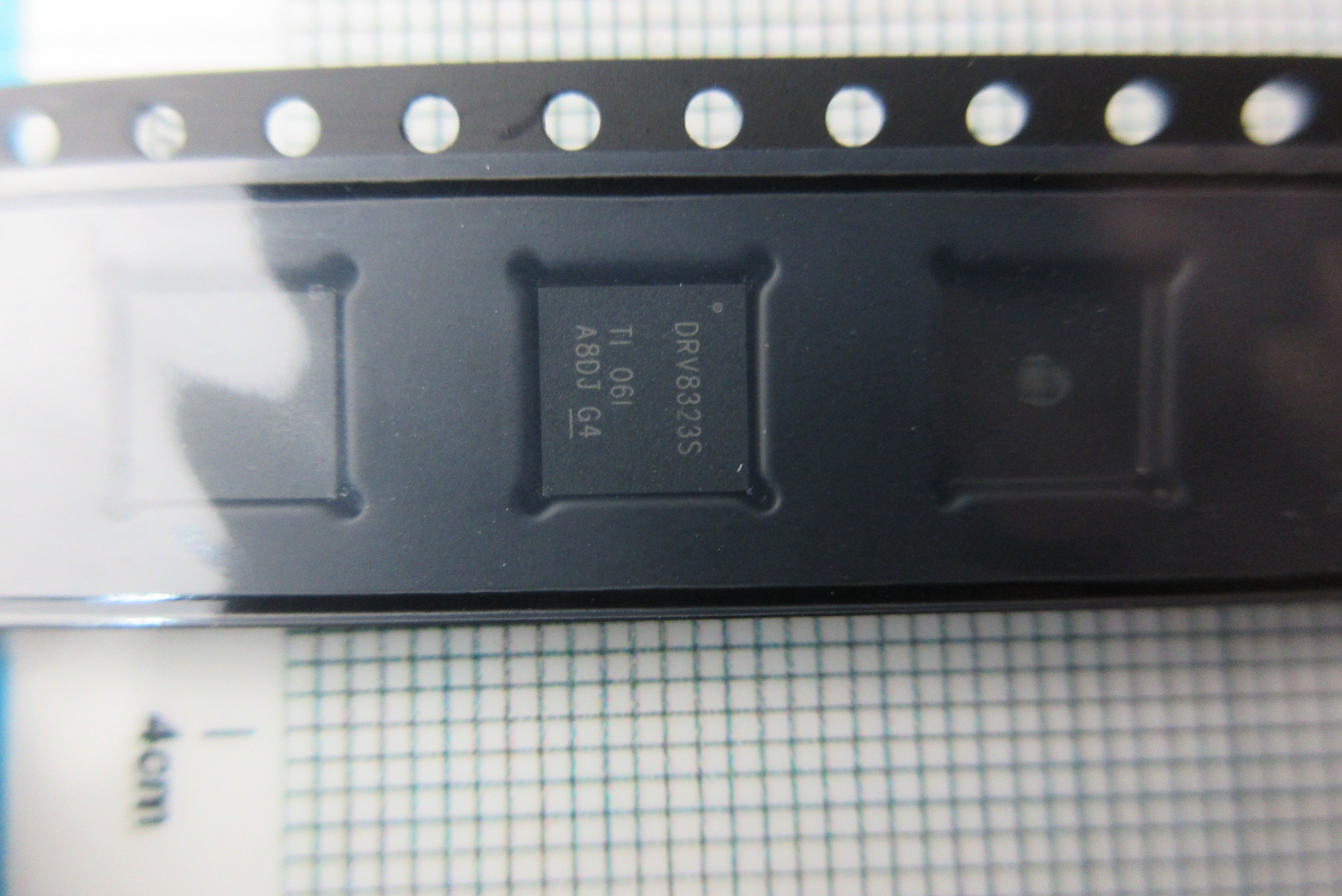

Part No.：DRV8323SRTAT
Category：Integrated Circuit
Manufacturer：Texas
Date Code：
Package Type：40WQFN
Quantity：100000
Click：2
Update Time：2022-05-28 15:52:39
Description:
| Manufacturer | Texas | Manufacturer's Part # | DRV8323SRTAT |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Motor Drivers, Controllers |
| Series | - | Part Status | Active |
| Motor Type - Stepper | Multiphase | Motor Type - AC, DC | Brushless DC (BLDC) |
| Function | Controller - Commutation, Direction Management | Output Configuration | Half Bridge (3) |
| Interface | SPI | Technology | Power MOSFET |
| Step Resolution | - | Applications | Brushless DC (BLDC) |
| Current - Output | 5mA | Voltage - Supply | 6V ~ 60V |
| Voltage - Load | - | Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-WQFN (6x6) |
