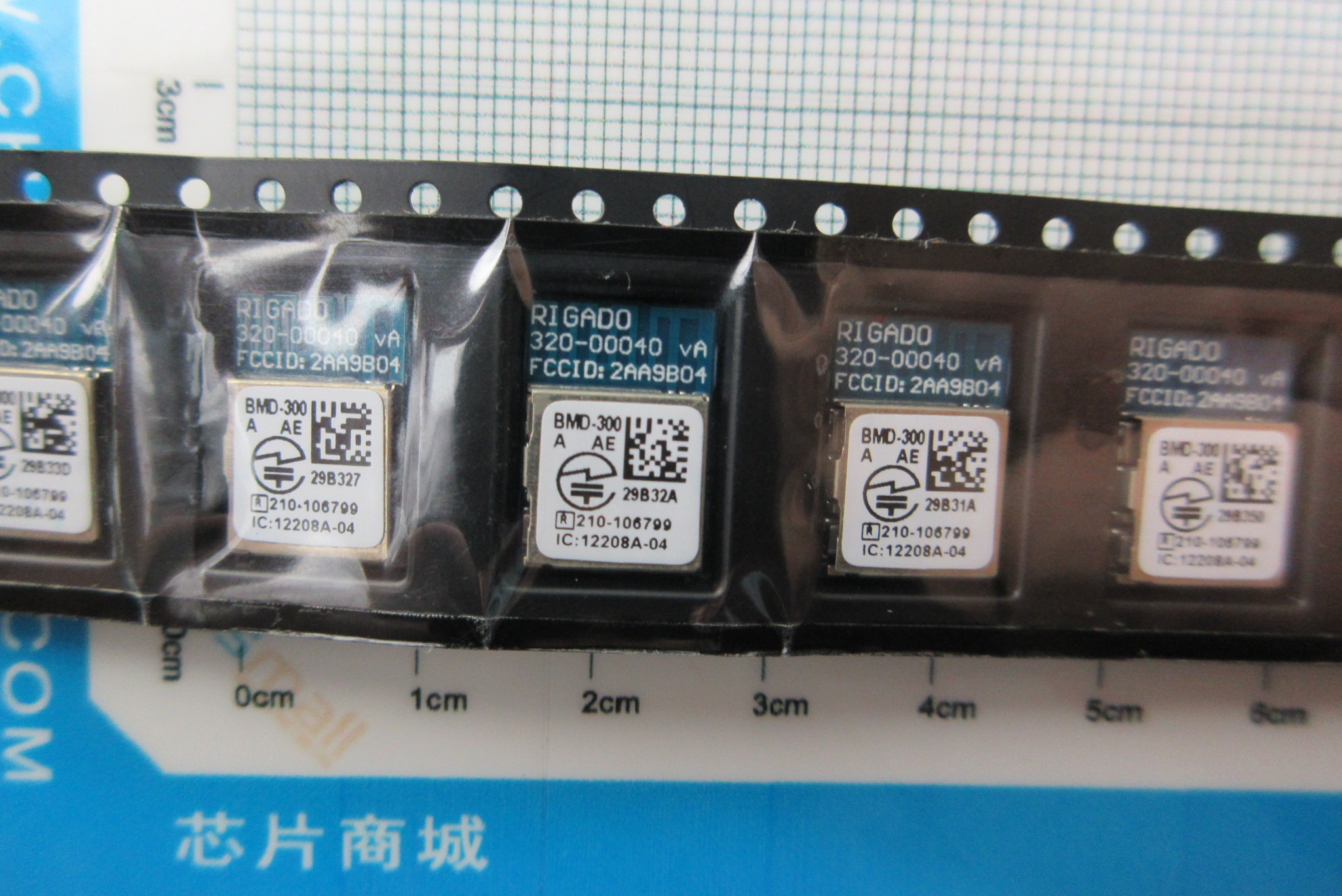

Part No.：BMD-300-A-R
Category：Transceivers & Receivers
Manufacturer：Rigado
Date Code：
Package Type：NRF52832
Quantity：50000
Click：25
Update Time：2022-05-30 14:37:11
Description:
| Manufacturer | Rigado | Manufacturer's Part # | BMD-300-A-R |
|---|---|---|---|
| Categories | RF/IF and RFID | Sub-Categories | RF Transceiver Modules |
| Series | BMD-300 | Part Status | Active |
| RF Family/Standard | Bluetooth | Protocol | Bluetooth v5.0 |
| Modulation | GFSK | Frequency | 2.4GHz |
| Data Rate | 2Mbps | Power - Output | 4dBm |
| Sensitivity | -96dBm | Serial Interfaces | I²C, I²S, SPI, UART |
| Antenna Type | Integrated, Trace | Utilized IC / Part | nRF52832 |
| Memory Size | 512kB Flash, 64kB RAM | Voltage - Supply | 1.7V ~ 3.6V |
| Current - Receiving | 10.4mA | Current - Transmitting | 17mA |
| Mounting Type | Surface Mount | Operating Temperature | -40°C ~ 85°C |
| Package / Case | Module |
