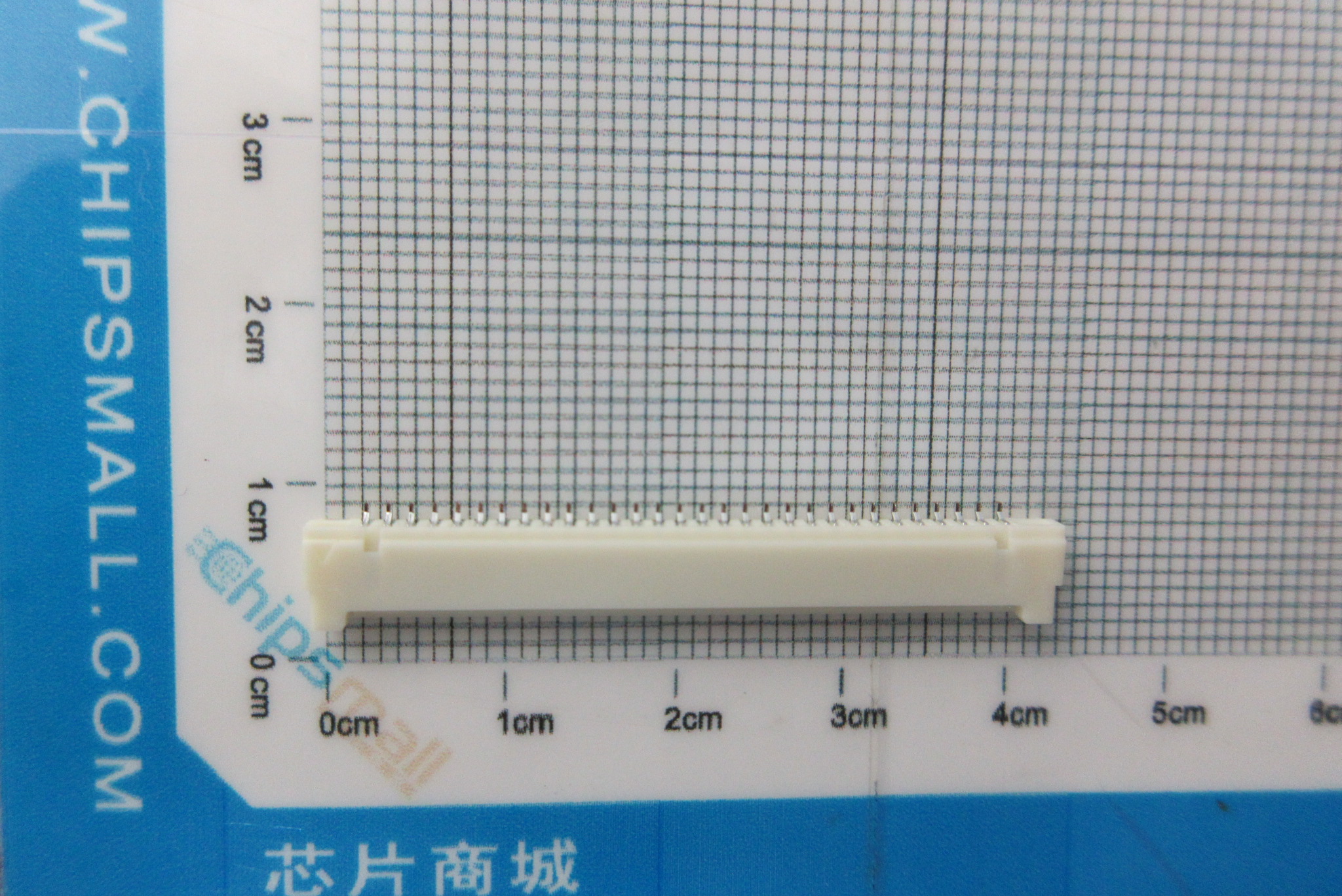

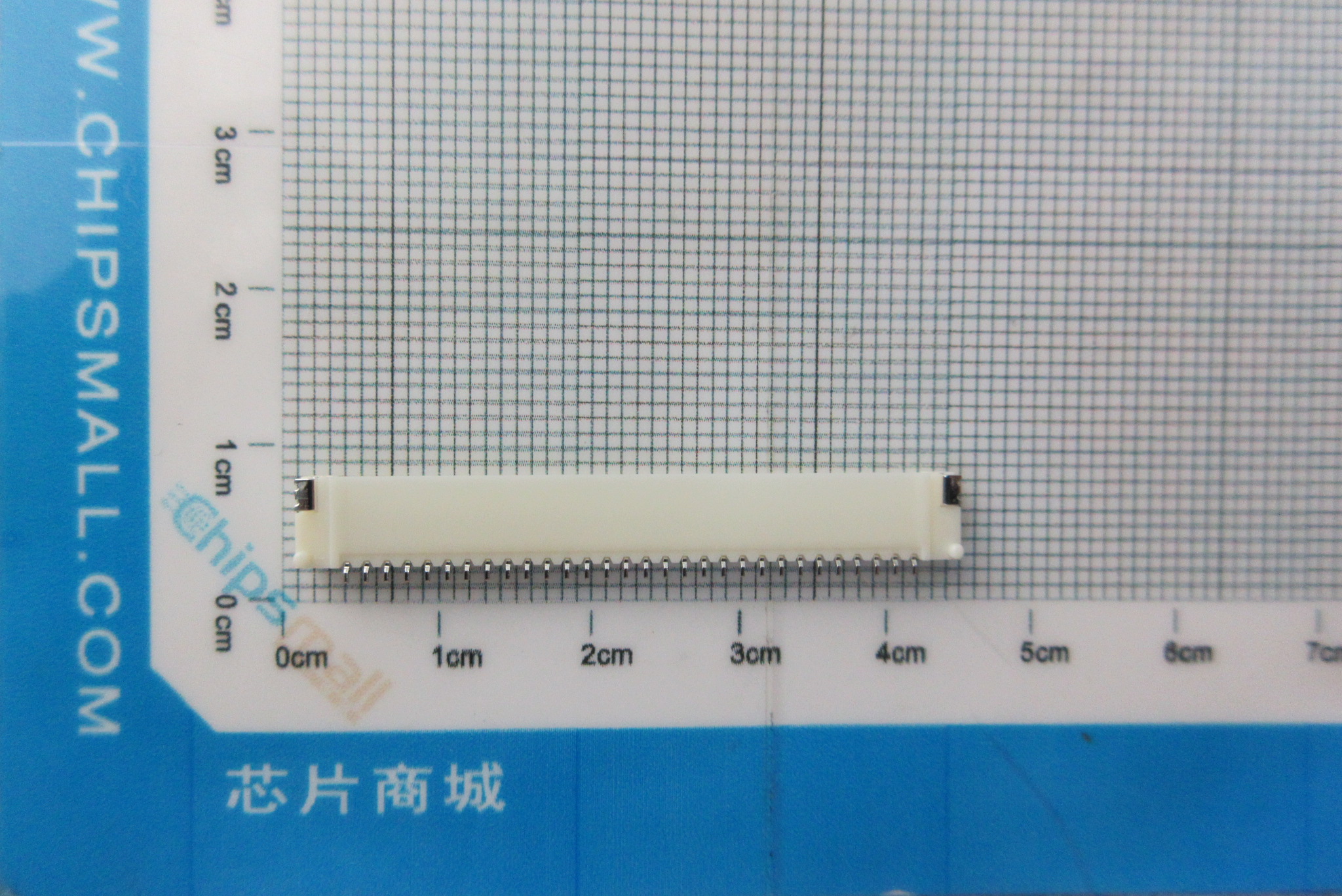

Part No.：DF14-30P-1.25H(24)
Category：Rectangular Connectors - Housings
Manufacturer：Hirose
Date Code：
Package Type：30POS
Quantity：50000
Click：15
Update Time：2022-06-13 10:55:24
Description:
| Manufacturer | Hirose | Manufacturer's Part # | DF14-30P-1.25H(24) |
|---|---|---|---|
| Categories | Connectors, Interconnects | Sub-Categories | Rectangular Connectors - Headers, Male Pins |
| Series | DF14 | Part Status | Preliminary |
| Connector Type | Header | Contact Type | Male Pin |
| Pitch - Mating | 0.049" (1.25mm) | Number of Positions | 30 |
| Number of Rows | 1 | Row Spacing - Mating | - |
| Number of Positions Loaded | All | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Mounting Type | Surface Mount, Right Angle |
| Termination | Solder | Fastening Type | Push-Pull |
| Contact Length - Mating | 0.086" (2.20mm) | Contact Length - Post | - |
| Overall Contact Length | - | Insulation Height | 0.098" (2.50mm) |
| Contact Shape | Square | Contact Finish - Mating | Tin-Copper |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | Contact Finish - Post | Tin-Copper |
| Contact Material | Brass | Insulation Material | Polyamide (PA), Nylon |
| Features | Board Guide, Solder Retention | Operating Temperature | -35°C ~ 85°C |
| Ingress Protection | - | Material Flammability Rating | UL94 V-0 |
| Insulation Color | Beige | Current Rating | 1A |
| Voltage Rating | 150VAC |
