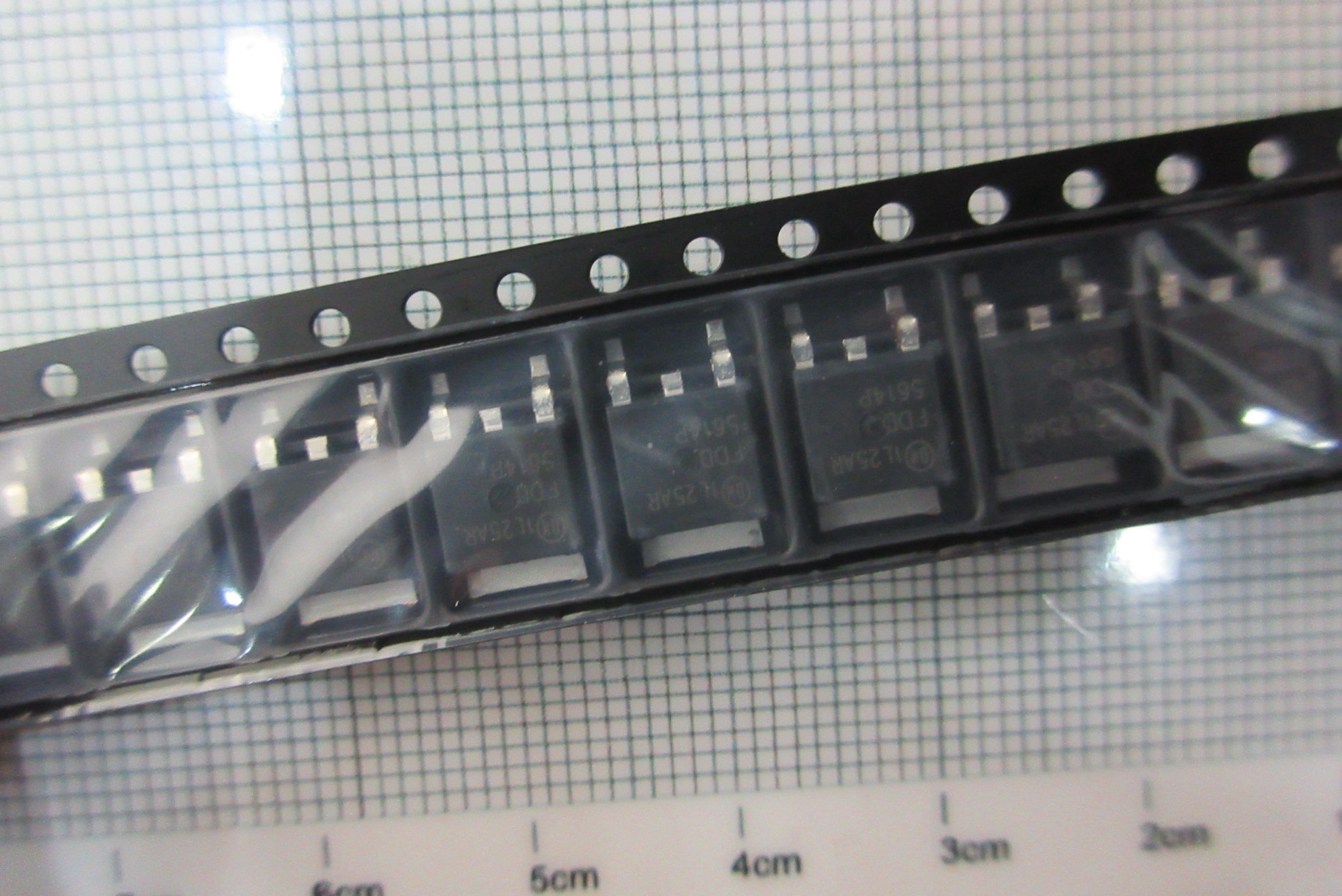

Part No.：FDD5614P
Category： FETS
Manufacturer：ON Semiconductor
Date Code：
Package Type：TO-252
Quantity：50000
Click：4
Update Time：2022-06-13 11:57:23
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | FDD5614P |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | PowerTrench® | Part Status | Active |
| FET Type | P-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60V | Current - Continuous Drain (Id) @ 25°C | 15A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Rds On (Max) @ Id, Vgs | 100 mOhm @ 4.5A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 24nC @ 10V |
| Vgs (Max) | ±20V | Input Capacitance (Ciss) (Max) @ Vds | 759pF @ 30V |
| FET Feature | - | Power Dissipation (Max) | 3.8W (Ta), 42W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Supplier Device Package | TO-252 | Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
