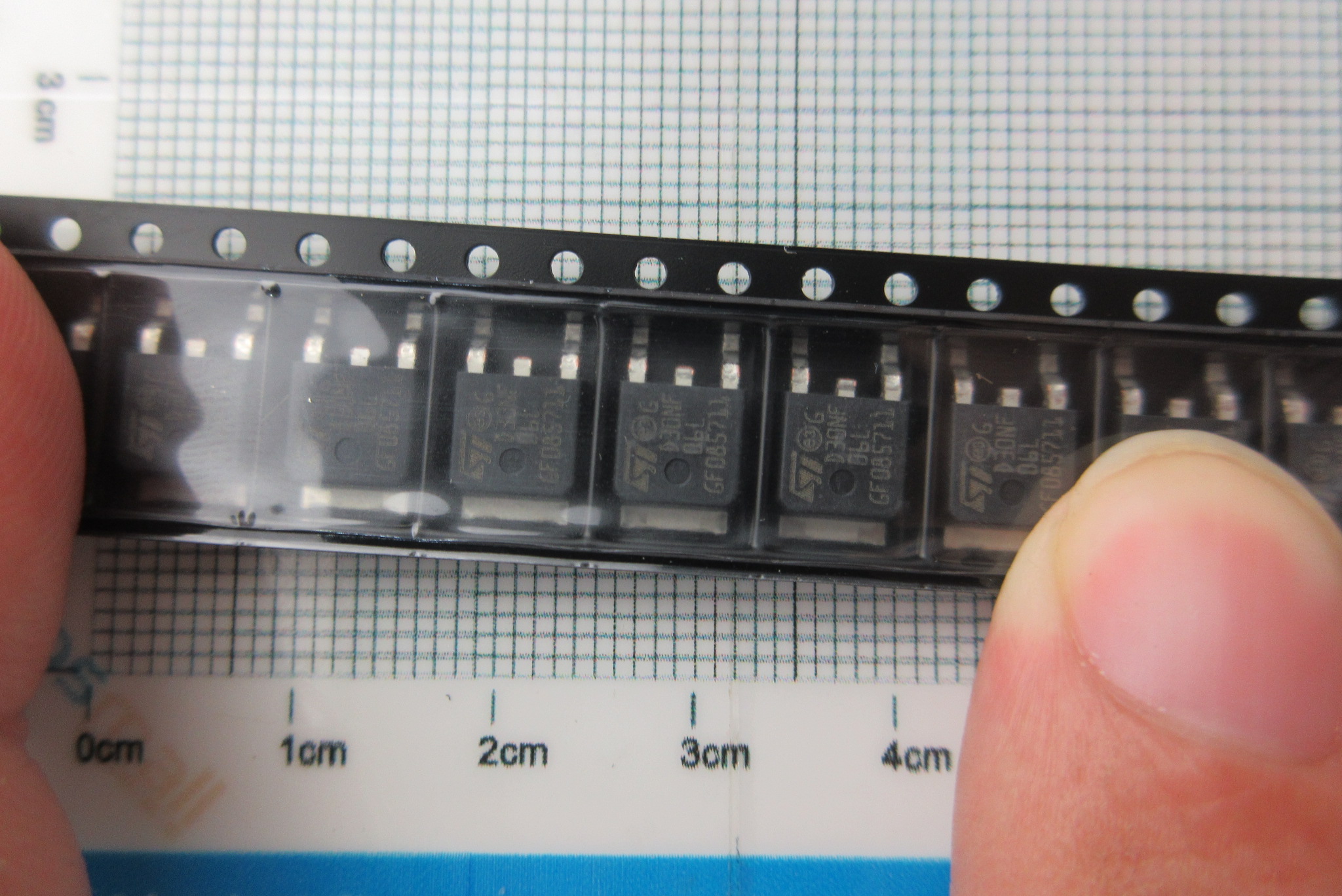

Part No.：STD30NF06LT4
Category： FETS
Manufacturer：STMicroelectronics
Date Code：
Package Type：TO-252-3
Quantity：50000
Click：62
Update Time：2022-06-14 16:58:03
Description:
| Manufacturer | STMicroelectronics | Manufacturer's Part # | STD30NF06LT4 |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | STripFET™ | Part Status | Active |
| FET Type | N-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60V | Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | Rds On (Max) @ Id, Vgs | 28 mOhm @ 18A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 31nC @ 5V |
| Vgs (Max) | ±20V | Input Capacitance (Ciss) (Max) @ Vds | 1600pF @ 25V |
| FET Feature | - | Power Dissipation (Max) | 70W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Supplier Device Package | DPAK | Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
