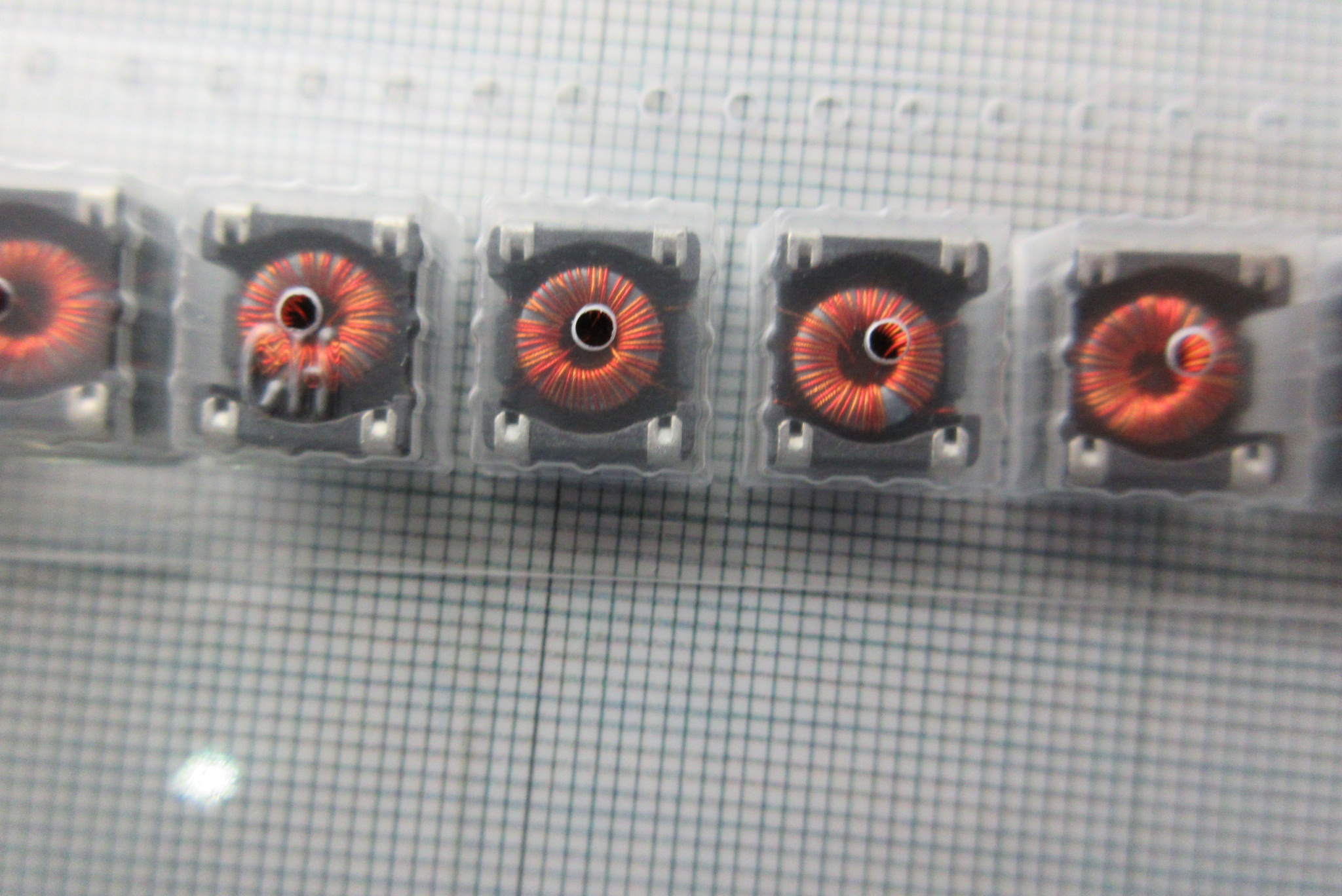

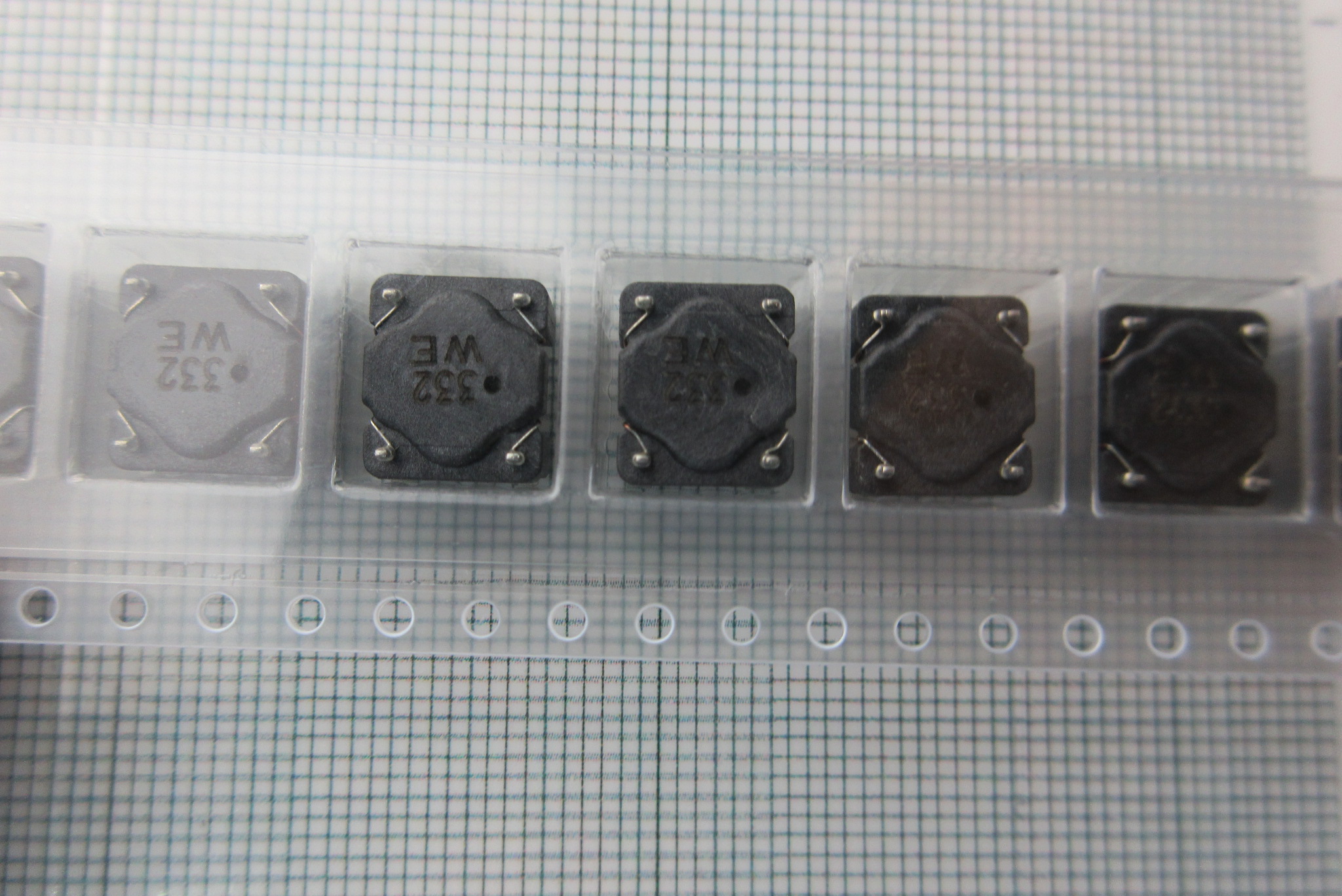

Part No.：744272332
Category：Filter
Manufacturer：Wurth Electronics
Date Code：
Package Type：CMC 3.3MH
Quantity：100000
Click：48
Update Time：2022-06-15 10:58:25
Description:
| Manufacturer | Wurth Electronics | Manufacturer's Part # | 744272332 |
|---|---|---|---|
| Categories | Filters | Sub-Categories | Common Mode Chokes |
| Series | WE-SL5 | Part Status | Active |
| Filter Type | Signal Line | Number of Lines | 2 |
| Impedance @ Frequency | 8.9 kOhms @ 100kHz | Inductance @ Frequency | 3.3mH @ 100kHz |
| Current Rating (Max) | 650mA | DC Resistance (DCR) (Max) | 360 mOhm |
| Voltage Rating - DC | 80V | Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C | Ratings | - |
| Approvals | - | Features | - |
| Mounting Type | Surface Mount | Size / Dimension | 0.394" L x 0.343" W (10.00mm x 8.70mm) |
| Height (Max) | 0.256" (6.50mm) | Package / Case | Horizontal, 4 PC Pad |
