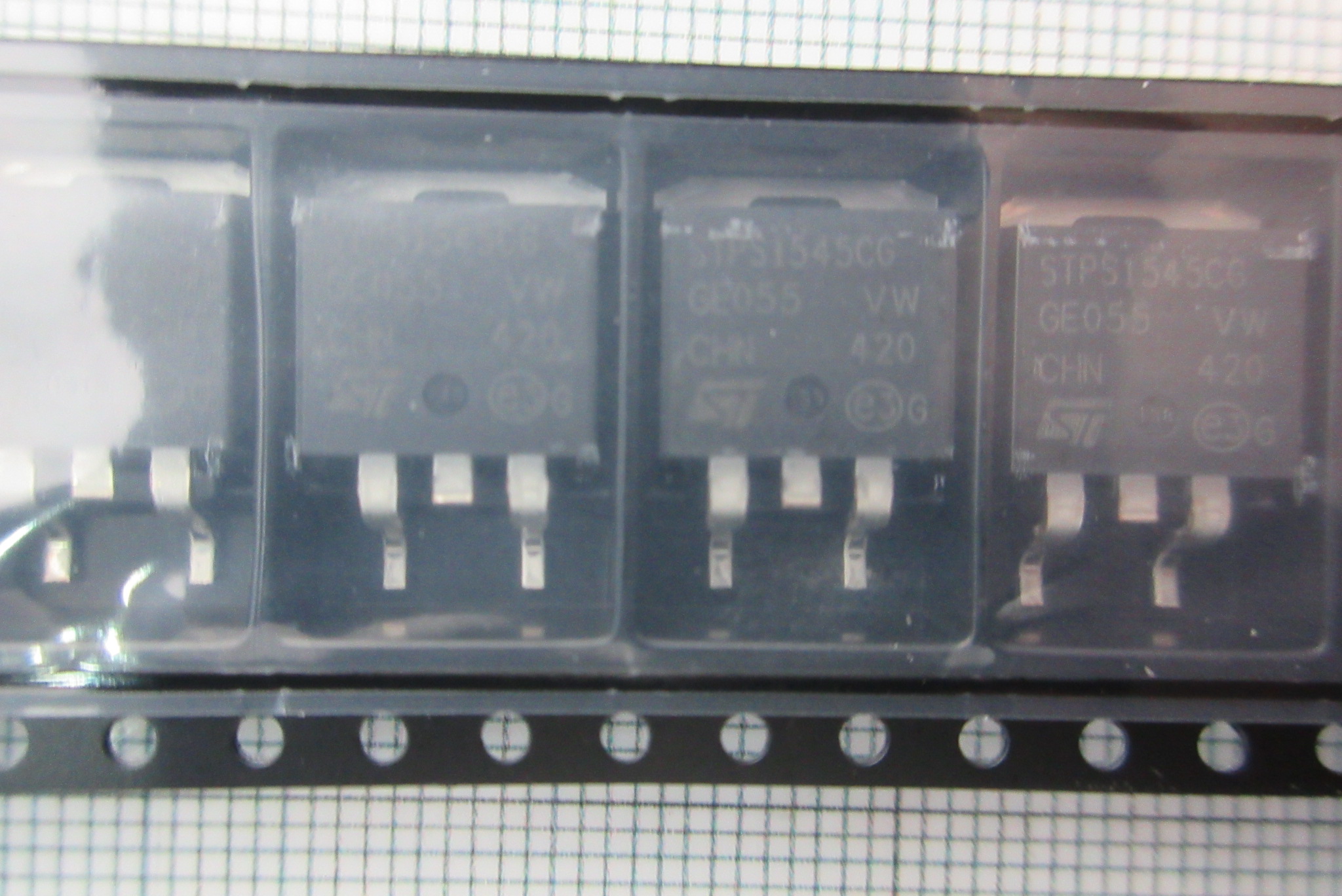

Part No.：STPS1545CG-TR
Category：Rectifier
Manufacturer：STMicroelectronics
Date Code：
Package Type：TO-263-3
Quantity：50000
Click：13
Update Time：2022-06-16 10:46:51
Description:
| Manufacturer | STMicroelectronics | Manufacturer's Part # | STPS1545CG-TR |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Diodes - Rectifiers - Arrays |
| Series | - | Part Status | Active |
| Diode Configuration | 1 Pair Common Cathode | Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45V | Current - Average Rectified (Io) (per Diode) | 7.5A |
| Voltage - Forward (Vf) (Max) @ If | 570mV @ 7.5A | Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | Current - Reverse Leakage @ Vr | 100µA @ 45V |
| Operating Temperature - Junction | 175°C (Max) | Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB | Supplier Device Package | D2PAK |
