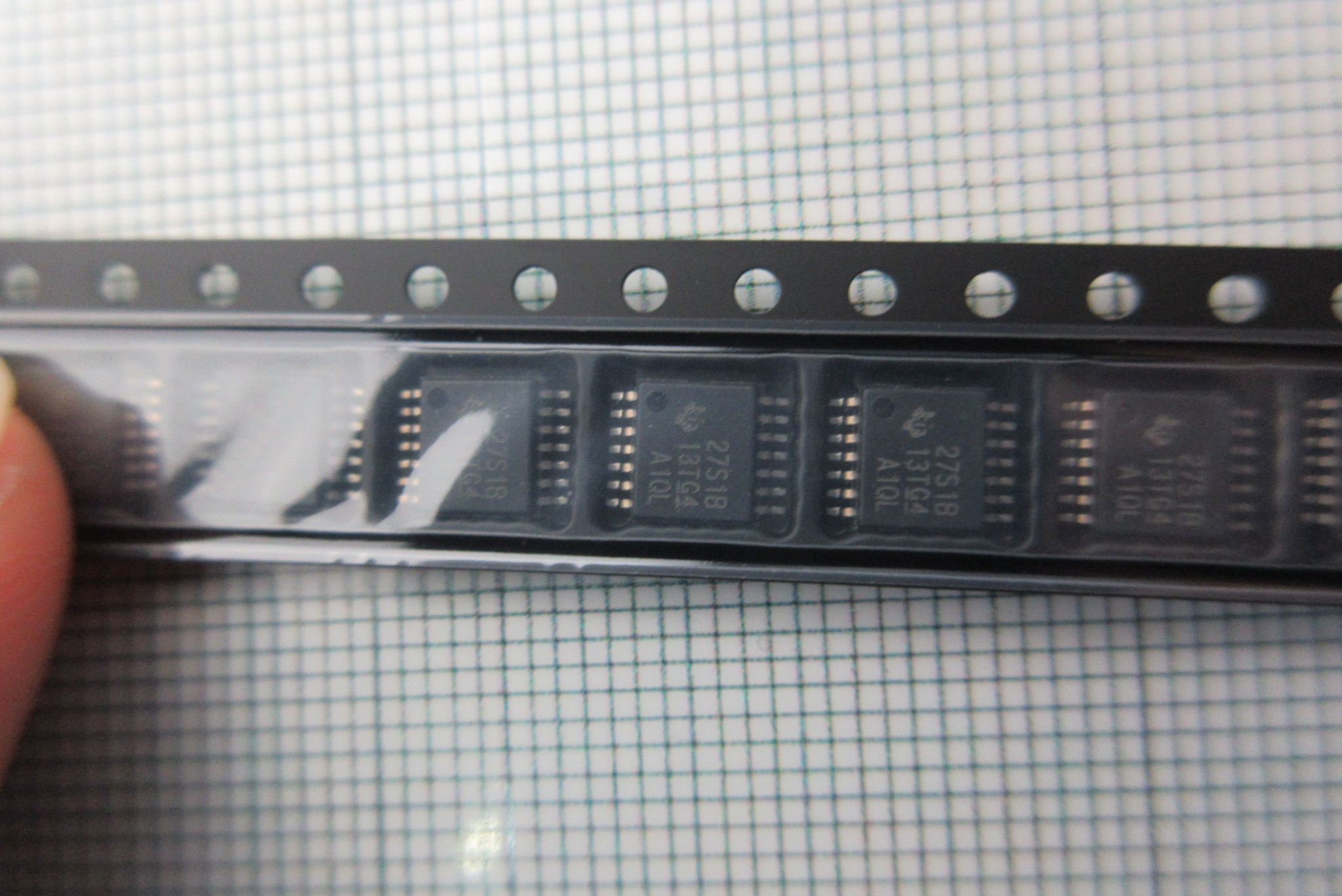

Part No.：TPS27S100BPWP
Category：Integrated Circuit
Manufacturer：Texas
Date Code：
Package Type：14-TSSOP
Quantity：50000
Click：31
Update Time：2022-06-16 11:33:50
Description:
| Manufacturer | Texas | Manufacturer's Part # | TPS27S100BPWPR |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Power Distribution Switches, Load Drivers |
| Series | - | Part Status | Active |
| Switch Type | Relay, Solenoid Driver | Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 | Output Configuration | High Side |
| Output Type | N-Channel | Interface | Logic |
| Voltage - Load | 40V | Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 13A | Rds On (Typ) | 80 mOhm |
| Input Type | Non-Inverting | Features | Shutdown |
| Fault Protection | Over Load, Over Temperature, Short Circuit, UVLO | Operating Temperature | -40°C ~ 125°C (TA) |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad | Supplier Device Package | 14-HTSSOP |
