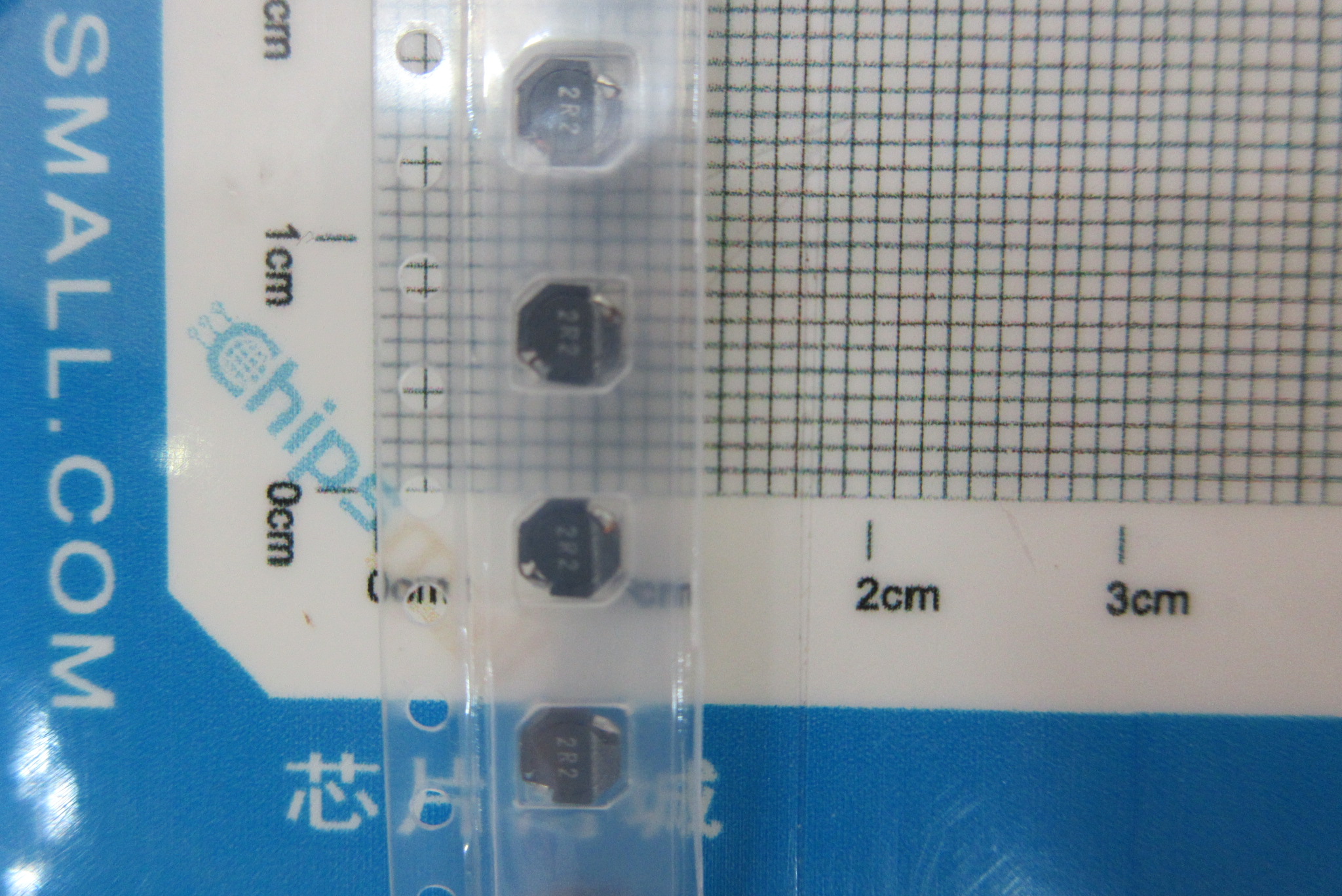

Part No.：VLF4014ST-2R2M1R9
Category：Fixed Inductors
Manufacturer：TDK Corporation
Date Code：
Package Type：SMD
Quantity：50000
Click：14
Update Time：2022-06-16 14:12:45
Description:
| Manufacturer | TDK Corporation | Manufacturer's Part # | VLF4014ST-2R2M1R9 |
|---|---|---|---|
| Categories | Inductors, Coils, Chokes | Sub-Categories | Fixed Inductors |
| Series | VLF | Part Status | Last Time Buy |
| Type | Wirewound | Material - Core | Ferrite |
| Inductance | 2.2µH | Tolerance | ±20% |
| Current Rating | 1.9A | Current - Saturation | 2A |
| Shielding | Shielded | DC Resistance (DCR) | 72 mOhm Max |
| Q @ Freq | - | Frequency - Self Resonant | - |
| Ratings | - | Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1MHz | Features | - |
| Mounting Type | Surface Mount | Package / Case | Nonstandard |
| Supplier Device Package | - | Size / Dimension | 0.150" L x 0.142" W (3.80mm x 3.60mm) |
| Height - Seated (Max) | 0.055" (1.40mm) |
