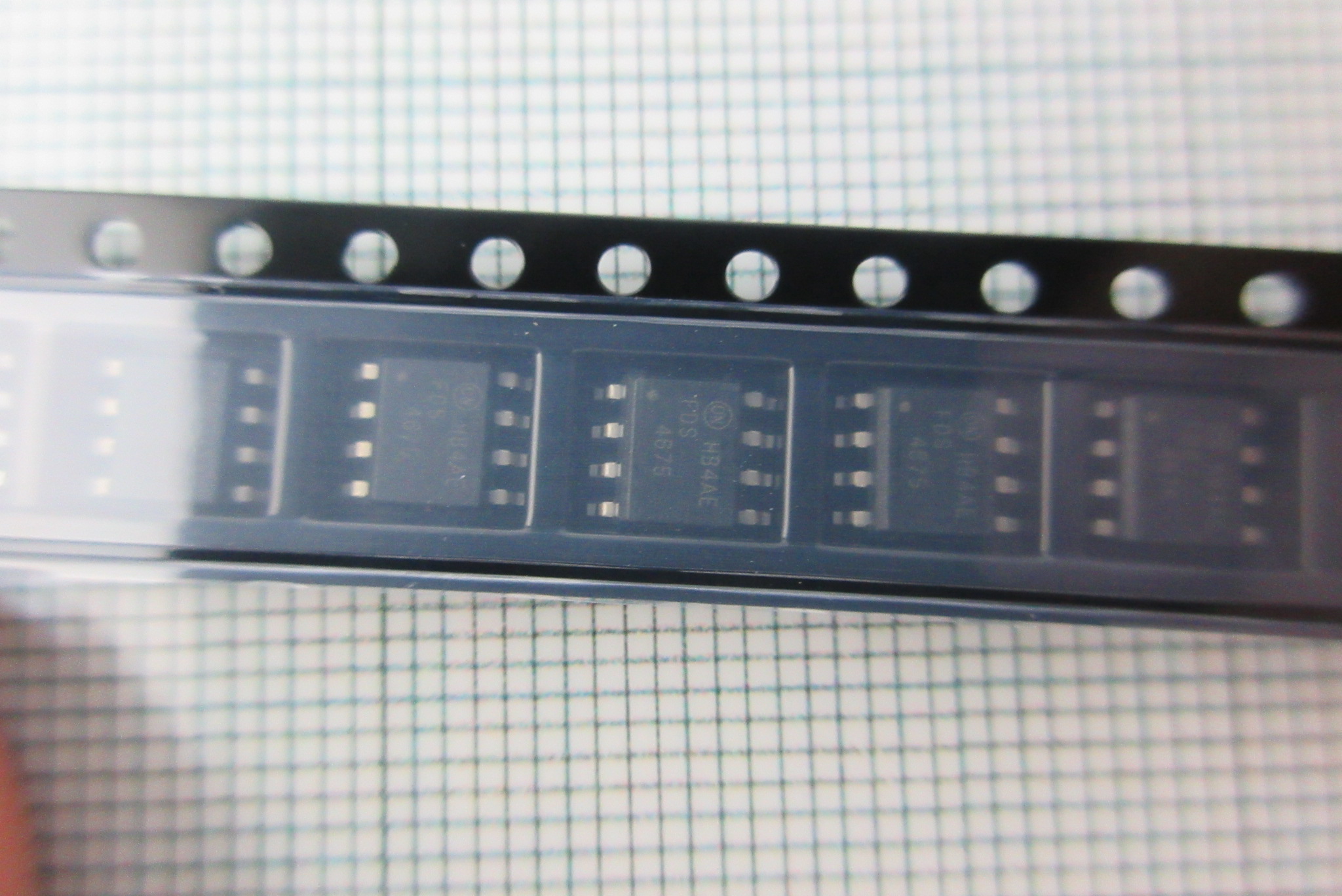

Part No.：FDS4675_F085
Category： FETS
Manufacturer：ON Semiconductor
Date Code：
Package Type：8-SOIC
Quantity：50000
Click：26
Update Time：2022-06-17 14:00:14
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | FDS4675-F085 |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | Automotive, AEC-Q101, PowerTrench® | Part Status | Active |
| FET Type | P-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40V | Current - Continuous Drain (Id) @ 25°C | 11A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Rds On (Max) @ Id, Vgs | 13 mOhm @ 11A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 56nC @ 4.5V |
| Vgs (Max) | ±20V | Input Capacitance (Ciss) (Max) @ Vds | 4350pF @ 20V |
| FET Feature | - | Power Dissipation (Max) | 2.4W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOIC | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
