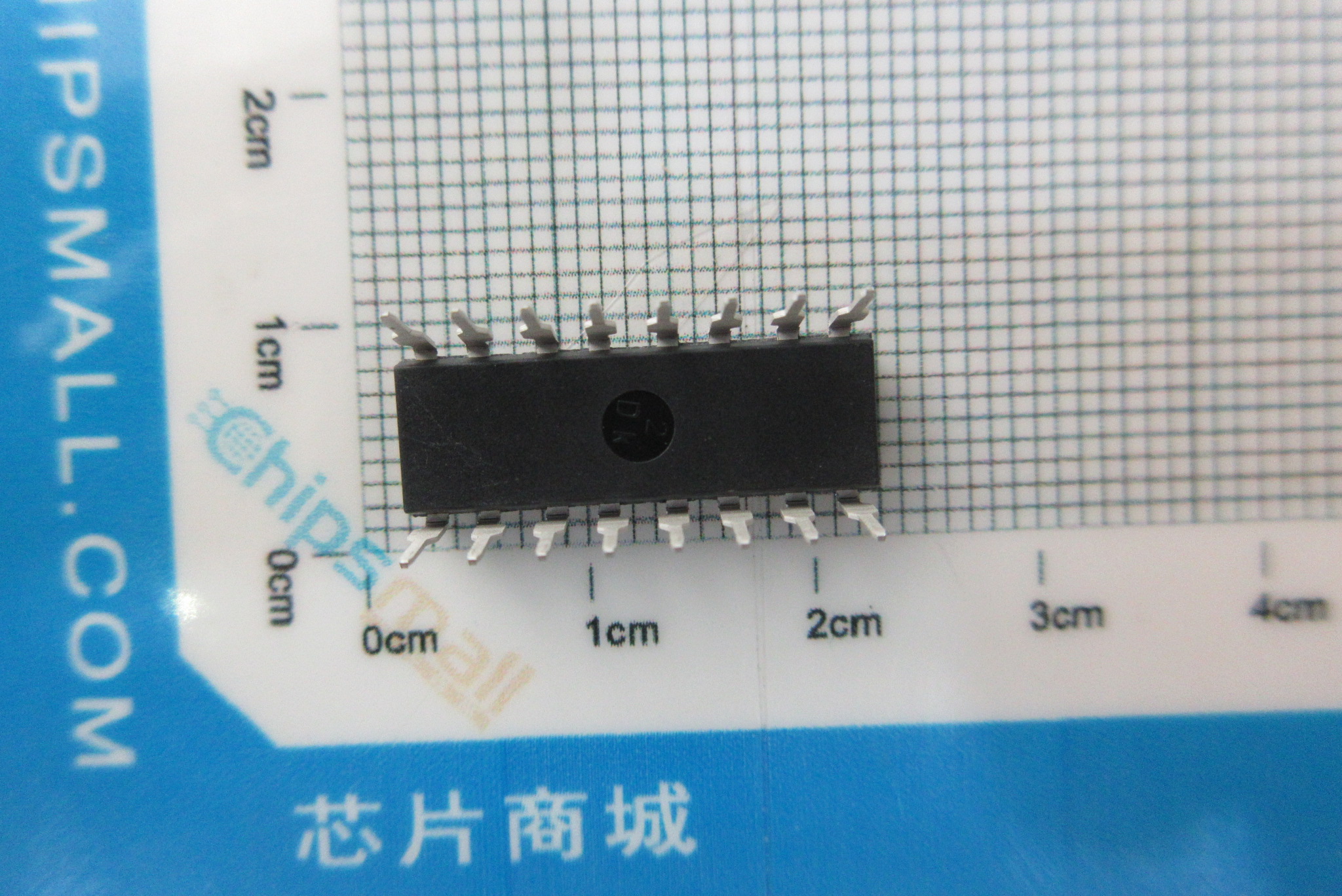

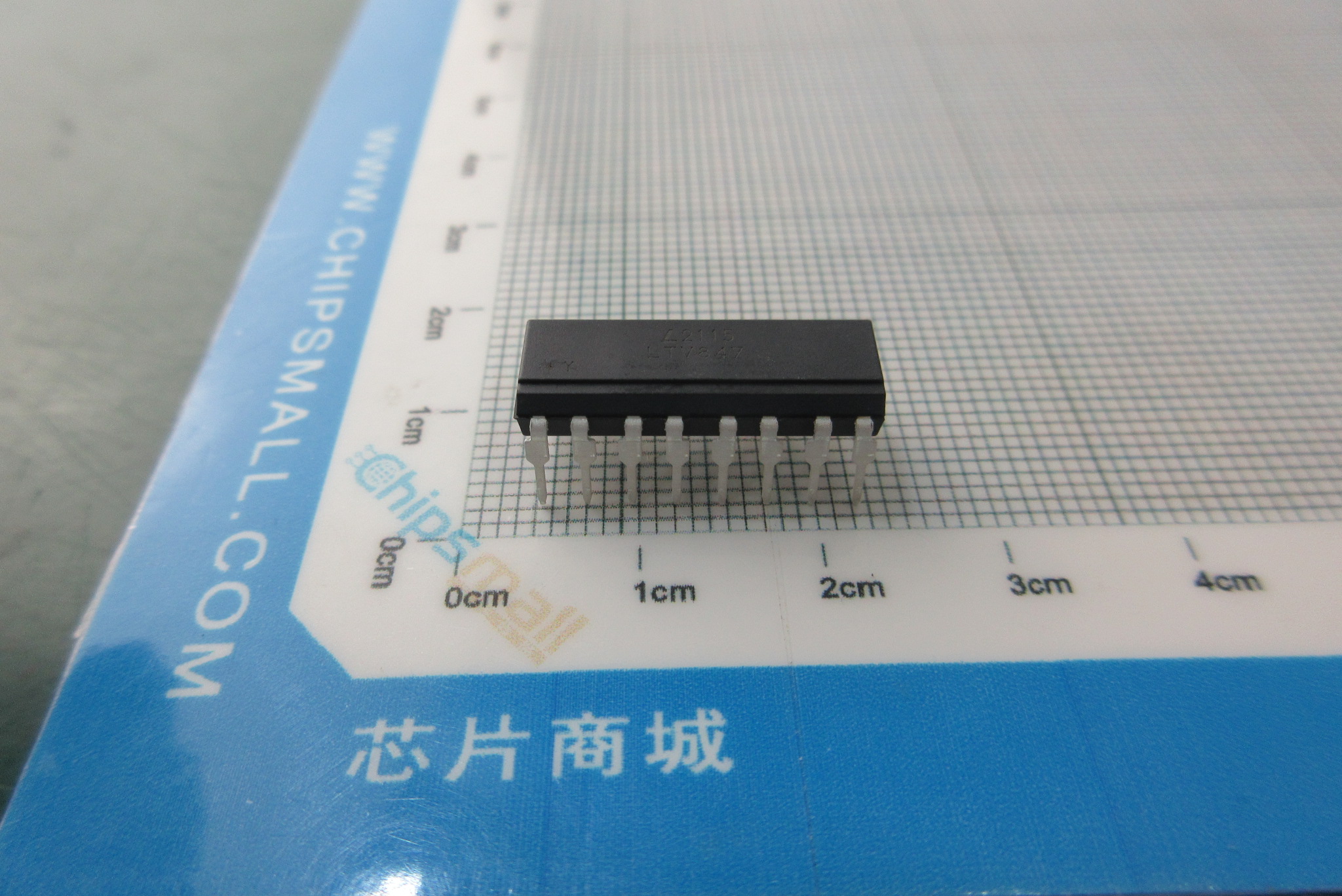

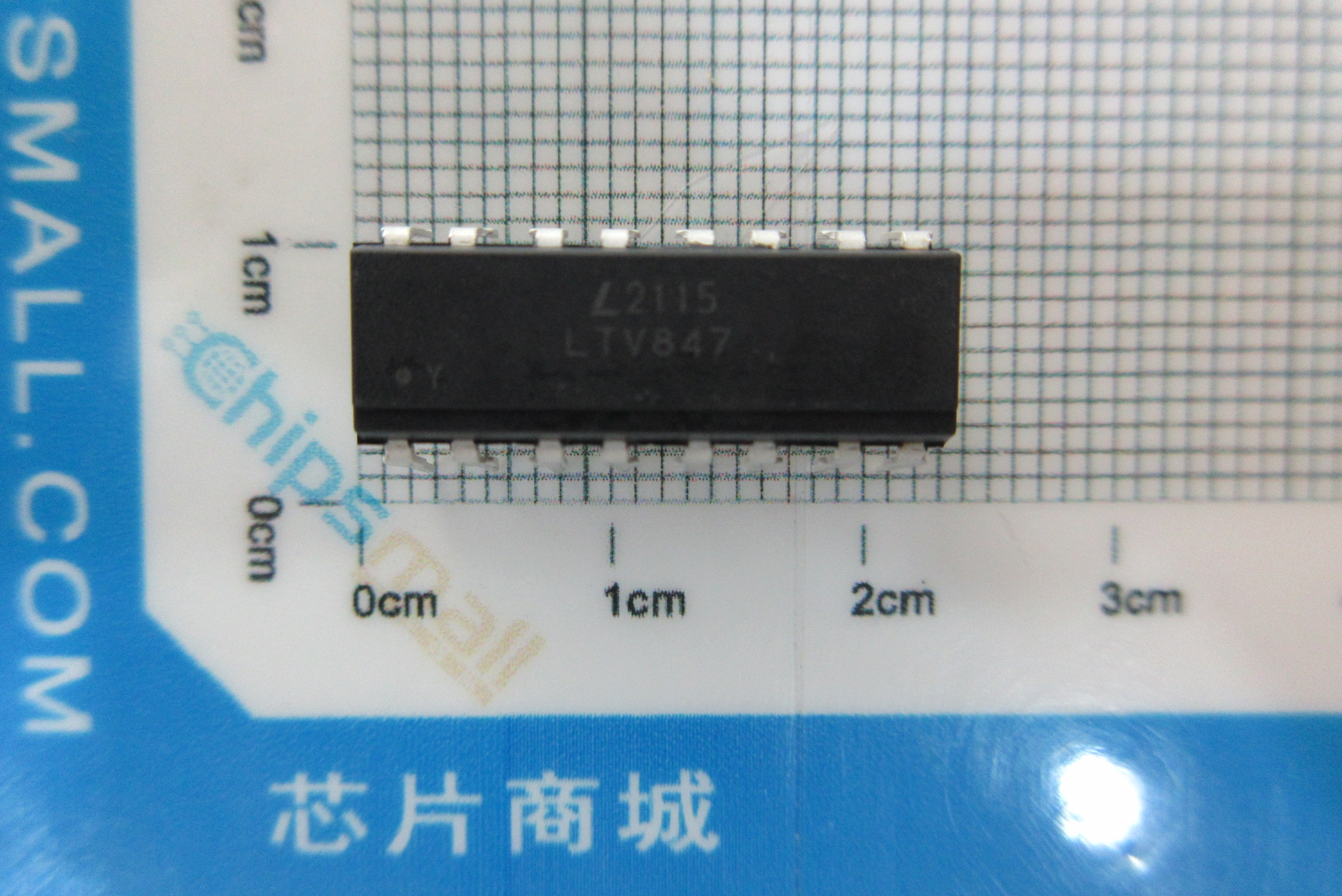

Part No.：LTV-847
Category：Isolator
Manufacturer：Lite-On, Inc.
Date Code：
Package Type：16-DIP
Quantity：50000
Click：19
Update Time：2022-06-17 15:51:39
Description:
| Manufacturer | Lite-On, Inc. | Manufacturer's Part # | LTV-847 |
|---|---|---|---|
| Categories | Isolators | Sub-Categories | Optoisolators - Transistor, Photovoltaic Output |
| Series | - | Part Status | Active |
| Number of Channels | 4 | Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA | Current Transfer Ratio (Max) | 600% @ 5mA |
| Turn On / Turn Off Time (Typ) | - | Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | DC | Output Type | Transistor |
| Voltage - Output (Max) | 35V | Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V | Current - DC Forward (If) (Max) | 50mA |
| Vce Saturation (Max) | 200mV | Operating Temperature | -30°C ~ 110°C |
| Mounting Type | Through Hole | Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-DIP |
