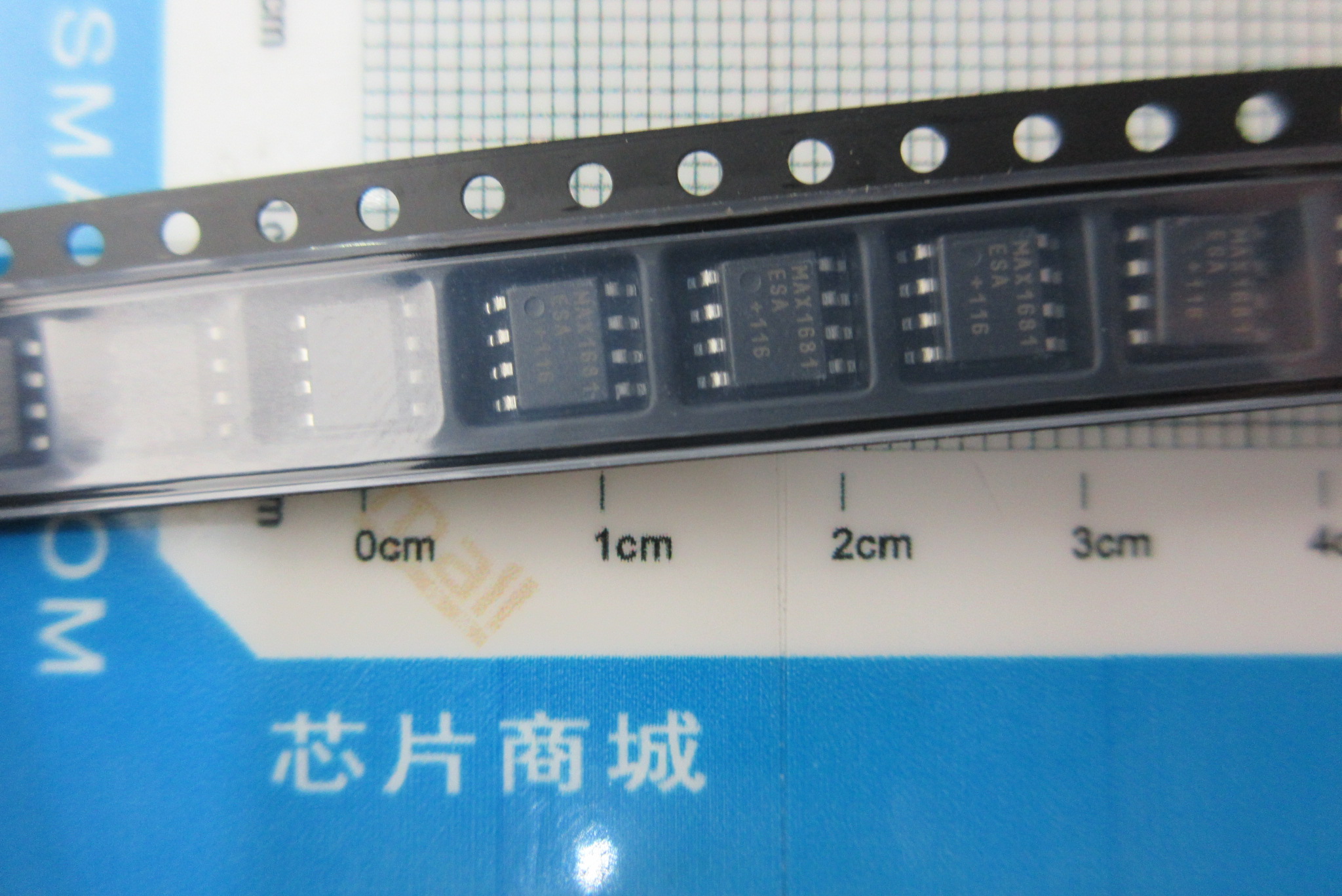

Part No.：MAX1681ESA
Category：Integrated Circuit
Manufacturer：Maxim Integrated
Date Code：
Package Type：8SOIC
Quantity：50000
Click：14
Update Time：2022-06-17 15:56:09
Description:
| Manufacturer | Maxim Integrated | Manufacturer's Part # | MAX1681ESA |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Series | - | Part Status | Obsolete |
| Function | Ratiometric | Output Configuration | Positive or Negative |
| Topology | Charge Pump | Output Type | Fixed |
| Number of Outputs | 1 | Voltage - Input (Min) | 2V |
| Voltage - Input (Max) | 5.5V | Voltage - Output (Min/Fixed) | -Vin, 2Vin |
| Voltage - Output (Max) | - | Current - Output | 125mA |
| Frequency - Switching | 500kHz, 1MHz | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 8-SOIC |
