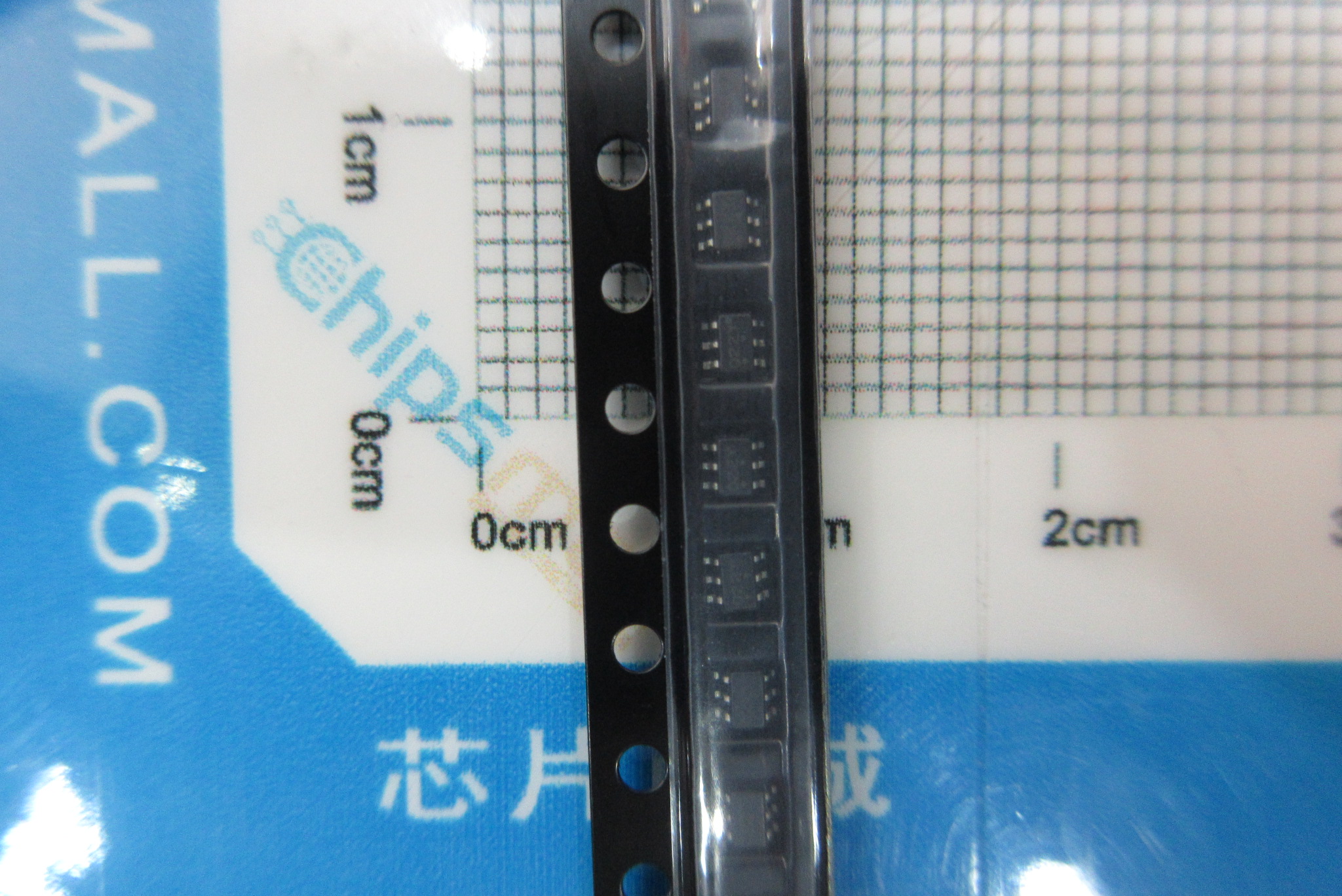

Part No.：NUF2221W1T2G
Category：Fixed Inductors
Manufacturer：ON Semiconductor
Date Code：
Package Type：6-TSSOP
Quantity：50000
Click：12
Update Time：2022-06-17 17:17:50
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | NUF2221W1T2G |
|---|---|---|---|
| Categories | Filters | Sub-Categories | EMI/RFI Filters (LC, RC Networks) |
| Series | - | Part Status | Active |
| Type | Low Pass | Filter Order | 2nd |
| Technology | RC (Pi) | Number of Channels | 3 |
| Center / Cutoff Frequency | - | Attenuation Value | - |
| Resistance - Channel (Ohms) | 22 | Current | - |
| Values | R = 22 Ohms, C = 42pF (Total) | ESD Protection | Yes |
| Operating Temperature | -55°C ~ 125°C | Applications | USB |
| Voltage - Rated | - | Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 | Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height | 0.043" (1.09mm) |
