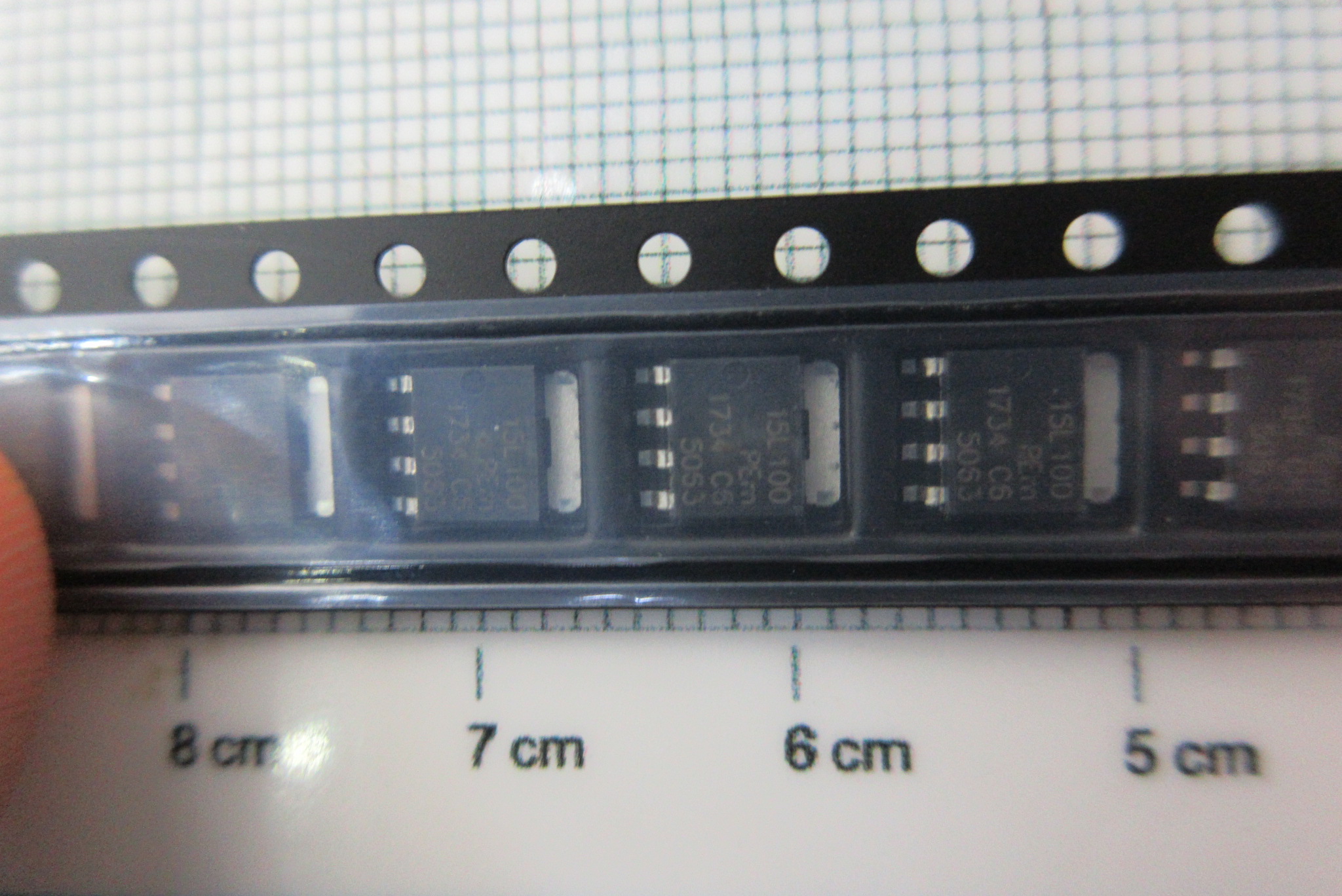

Part No.：PSMN015-100YLX
Category：Semiconductor
Manufacturer：Nexperia
Date Code：
Package Type：SC-100, SOT-669
Quantity：50000
Click：40
Update Time：2022-06-17 17:32:42
Description:
| Manufacturer | Nexperia | Manufacturer's Part # | PSMN015-100YLX |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | - | Part Status | Active |
| FET Type | N-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100V | Current - Continuous Drain (Id) @ 25°C | 69A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | Rds On (Max) @ Id, Vgs | 14.7 mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 1mA | Gate Charge (Qg) (Max) @ Vgs | 86.3nC @ 10V |
| Vgs (Max) | ±20V | Input Capacitance (Ciss) (Max) @ Vds | 6139pF @ 25V |
| FET Feature | - | Power Dissipation (Max) | 195W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Supplier Device Package | LFPAK56, Power-SO8 | Package / Case | SC-100, SOT-669 |
