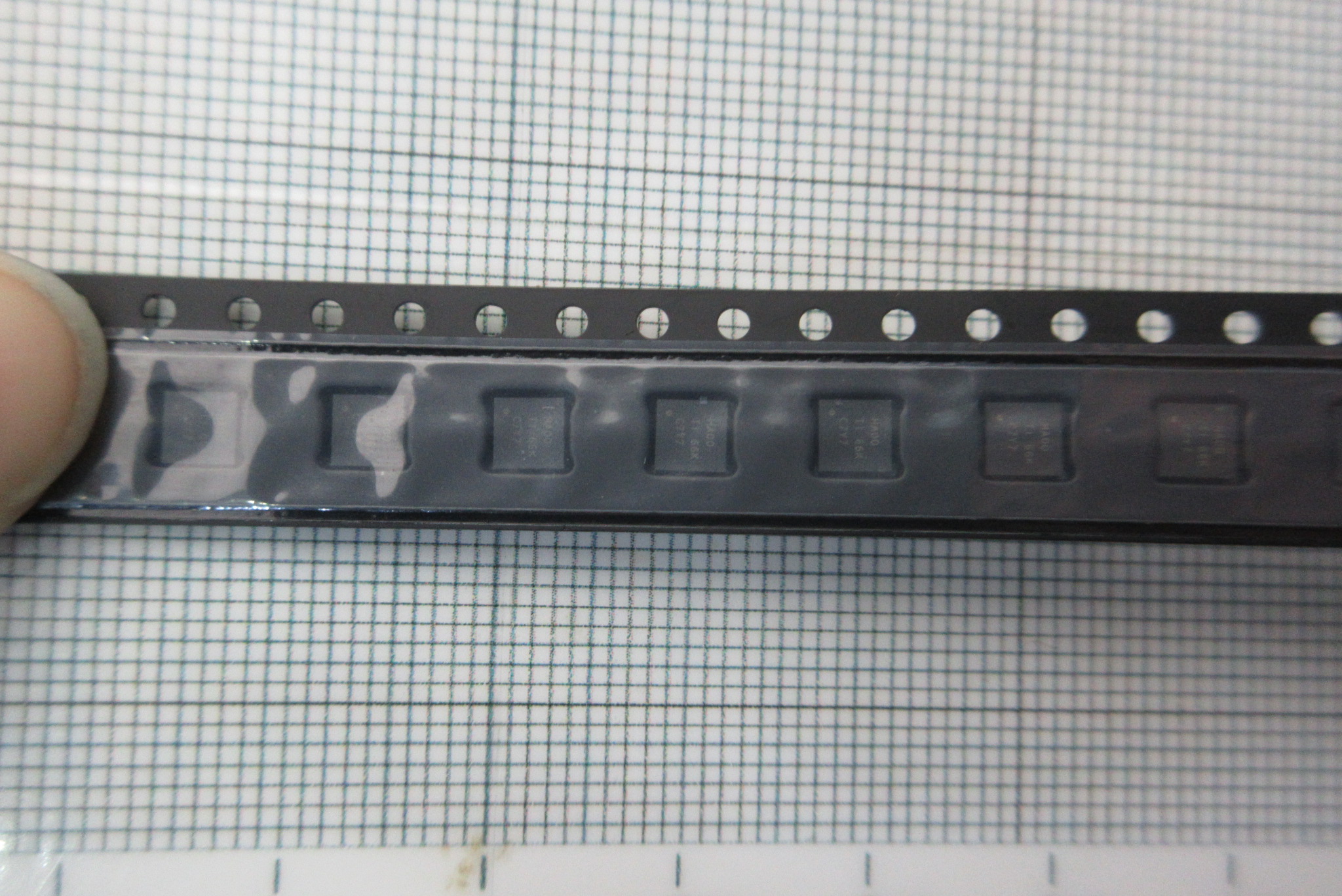

Part No.：SN74AHC00RGYR
Category：Logic
Manufacturer：Texas
Date Code：
Package Type：14VQFN
Quantity：50000
Click：15
Update Time：2022-06-20 10:50:14
Description:
| Manufacturer | Texas | Manufacturer's Part # | SN74AHC00RGYR |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Logic - Gates and Inverters |
| Series | 74AHC | Part Status | Active |
| Logic Type | NAND Gate | Number of Circuits | 4 |
| Number of Inputs | 2 | Features | - |
| Voltage - Supply | 2V ~ 5.5V | Current - Quiescent (Max) | 2µA |
| Current - Output High, Low | 8mA, 8mA | Logic Level - Low | 0.5V ~ 1.65V |
| Logic Level - High | 1.5V ~ 3.85V | Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Supplier Device Package | 14-VQFN (3.5x3.5) | Package / Case | 14-VFQFN Exposed Pad |
