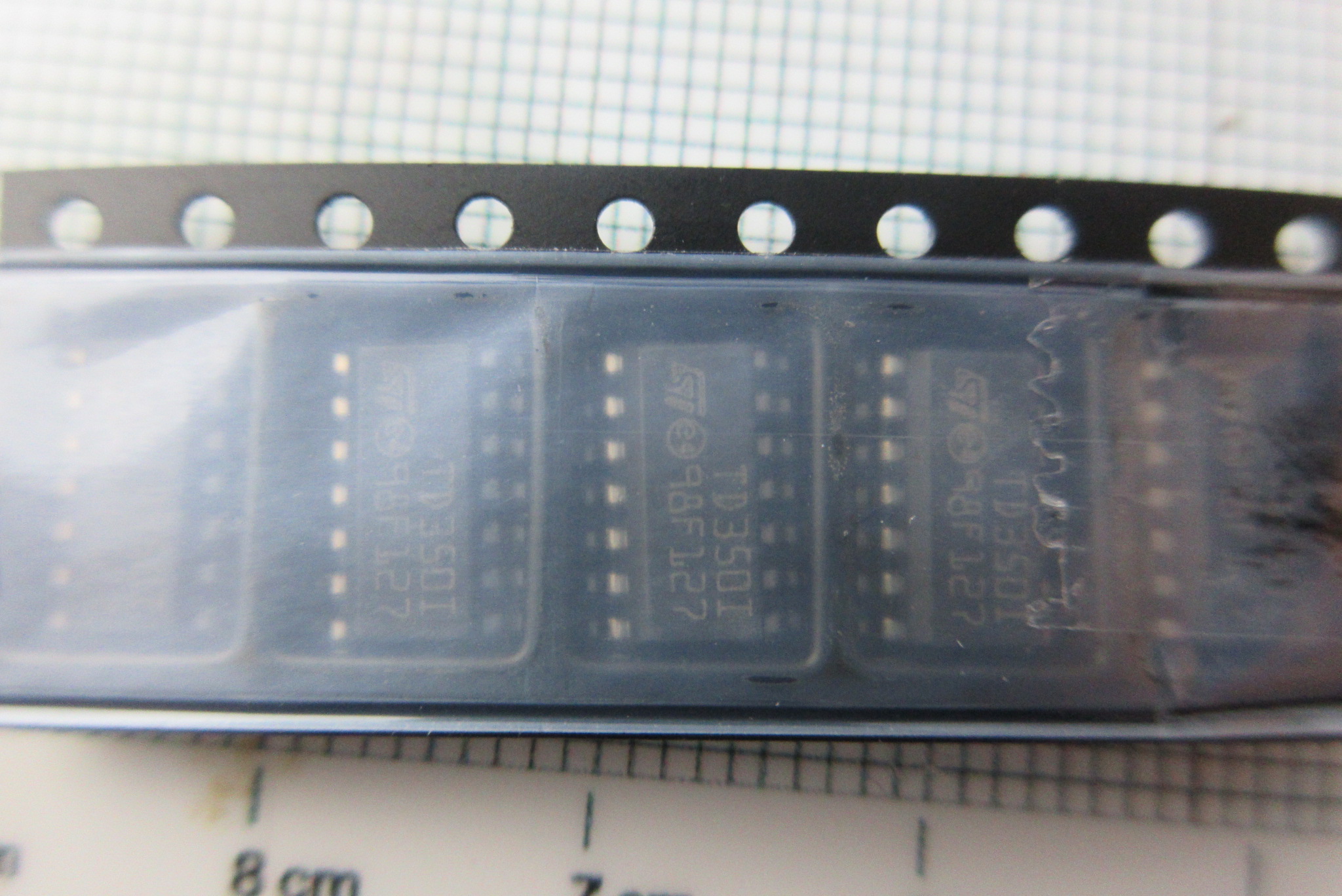

Part No.：TD350IDT
Category：Integrated Circuit
Manufacturer：STMicroelectronics
Date Code：
Package Type：14SOIC
Quantity：50000
Click：2
Update Time：2022-06-20 11:23:41
Description:
| Manufacturer | STMicroelectronics | Manufacturer's Part # | TD350IDT |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Gate Drivers |
| Series | - | Part Status | Obsolete |
| Driven Configuration | High-Side | Channel Type | Single |
| Number of Drivers | 1 | Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 12V ~ 26V | Logic Voltage - VIL, VIH | 0.8V, 4.2V |
| Current - Peak Output (Source, Sink) | 1.5A, 2.3A | Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | Rise / Fall Time (Typ) | 130ns, 75ns (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 14-SO |
