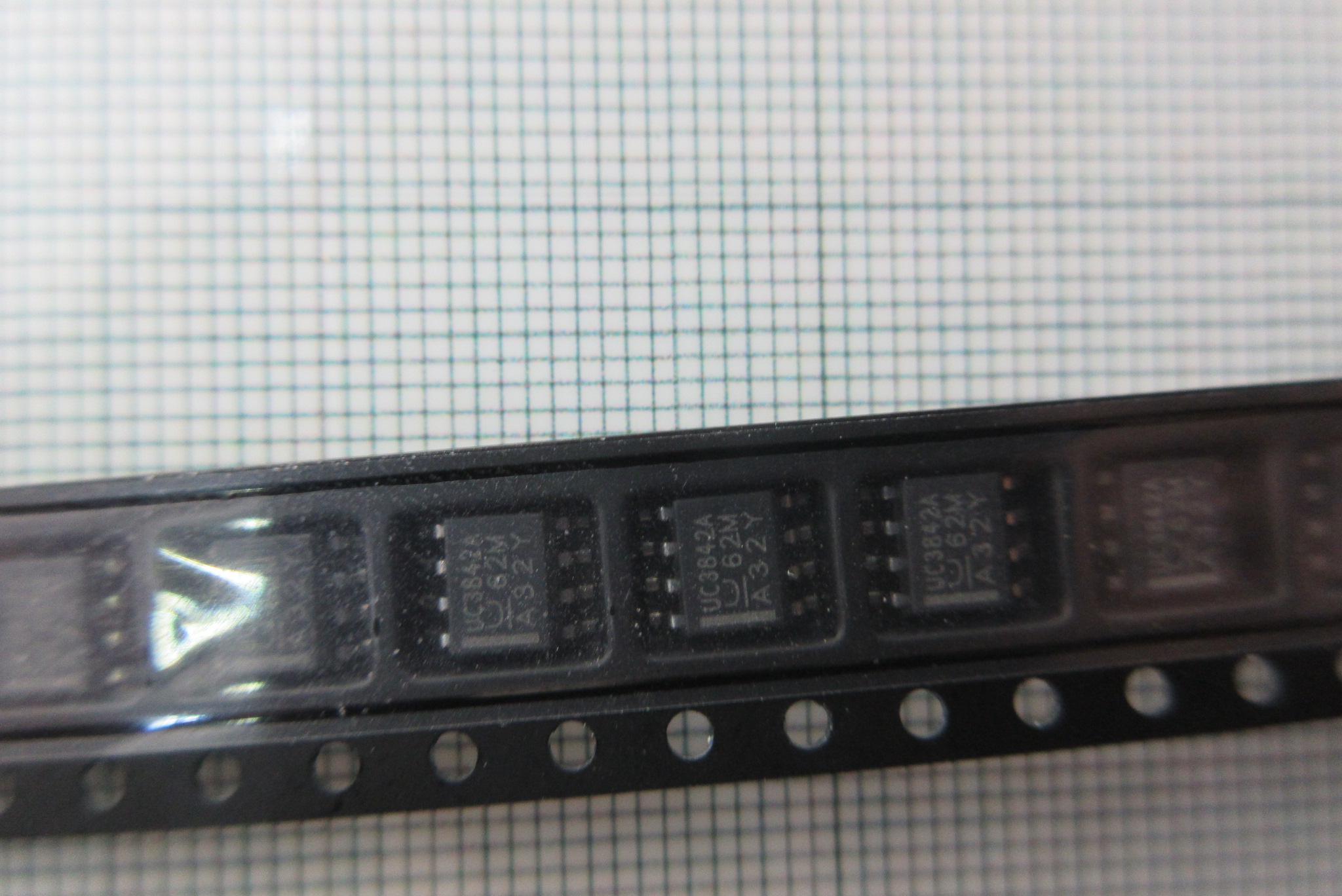

Part No.：UC3842AD8TR
Category：Integrated Circuit
Manufacturer：Texas
Date Code：
Package Type：8SOIC
Quantity：50000
Click：17
Update Time：2022-06-20 14:35:30
Description:
| Manufacturer | Texas | Manufacturer's Part # | UC3842AD8TR |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Voltage Regulators - DC DC Switching Controllers |
| Series | - | Part Status | Active |
| Output Type | Transistor Driver | Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive | Topology | Boost, Buck, Buck-Boost, Flyback, Forward |
| Number of Outputs | 1 | Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 30V | Frequency - Switching | Up to 500kHz |
| Duty Cycle (Max) | 96% | Synchronous Rectifier | No |
| Clock Sync | No | Serial Interfaces | - |
| Control Features | Frequency Control | Operating Temperature | 0°C ~ 70°C (TA) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 8-SOIC |
