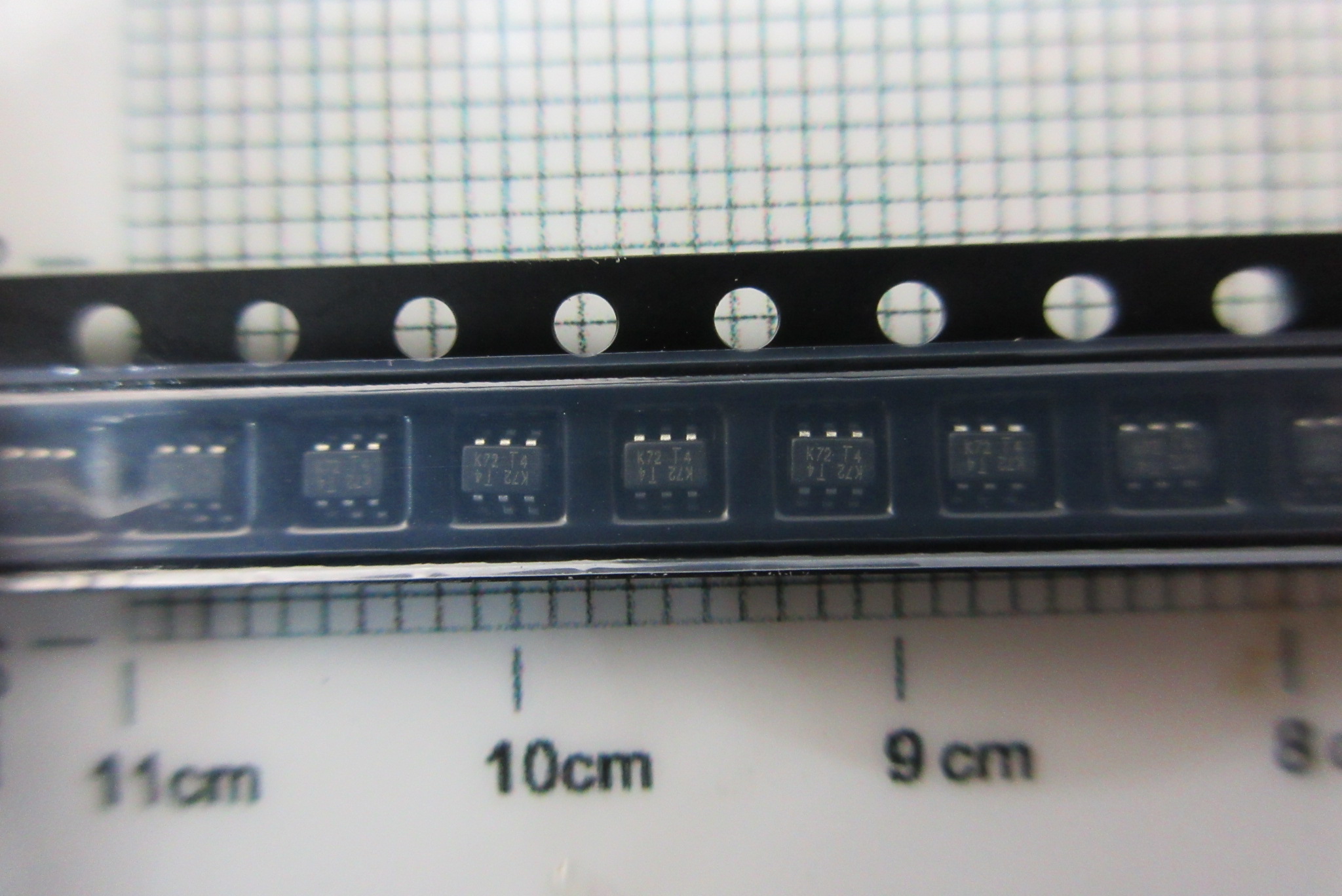

Part No.：2N7002DW-7-F
Category： FETS
Manufacturer：Diodes Incorporated
Date Code：
Package Type：SOT-363
Quantity：50000
Click：35
Update Time：2022-06-21 10:03:16
Description:
| Manufacturer | Diodes Incorporated | Manufacturer's Part # | 2N7002DW-7-F |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Arrays |
| Series | - | Part Status | Active |
| FET Type | 2 N-Channel (Dual) | FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 60V | Current - Continuous Drain (Id) @ 25°C | 230mA |
| Rds On (Max) @ Id, Vgs | 7.5 Ohm @ 50mA, 5V | Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - | Input Capacitance (Ciss) (Max) @ Vds | 50pF @ 25V |
| Power - Max | 310mW | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
