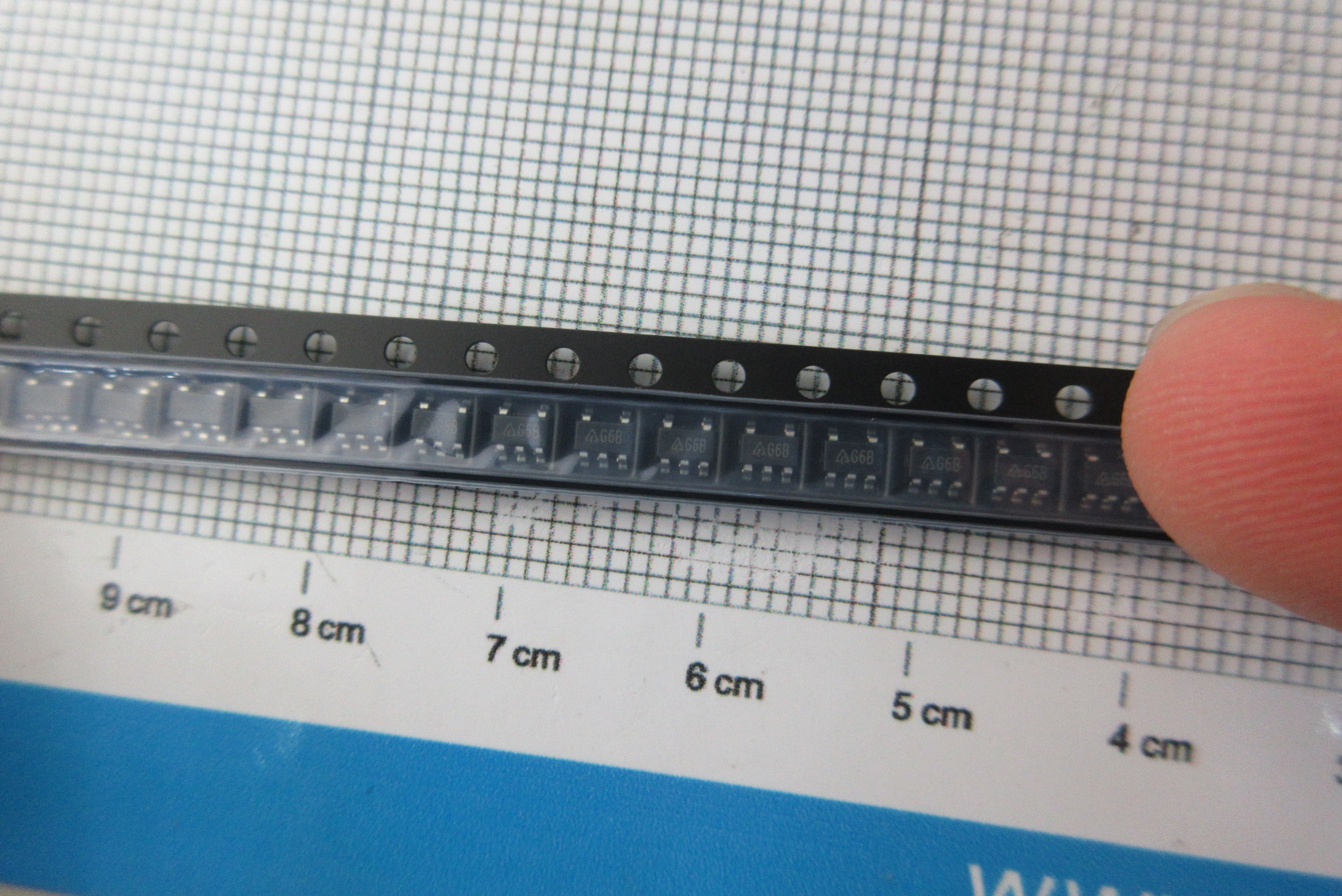

Part No.：AP3012KTR-G1
Category：Integrated Circuit
Manufacturer：Diodes Incorporated
Date Code：
Package Type：SOT25
Quantity：50000
Click：2
Update Time：2022-06-22 16:50:21
Description:
| Manufacturer | Diodes Incorporated | Manufacturer's Part # | AP3012KTR-G1 |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Series | - | Part Status | Active |
| Function | Step-Up | Output Configuration | Positive |
| Topology | Boost | Output Type | Adjustable |
| Number of Outputs | 1 | Voltage - Input (Min) | 2.6V |
| Voltage - Input (Max) | 16V | Voltage - Output (Min/Fixed) | 1.25V |
| Voltage - Output (Max) | 29V | Current - Output | 500mA (Switch) |
| Frequency - Switching | 1.5MHz | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 | Supplier Device Package | SOT-23-5 |
