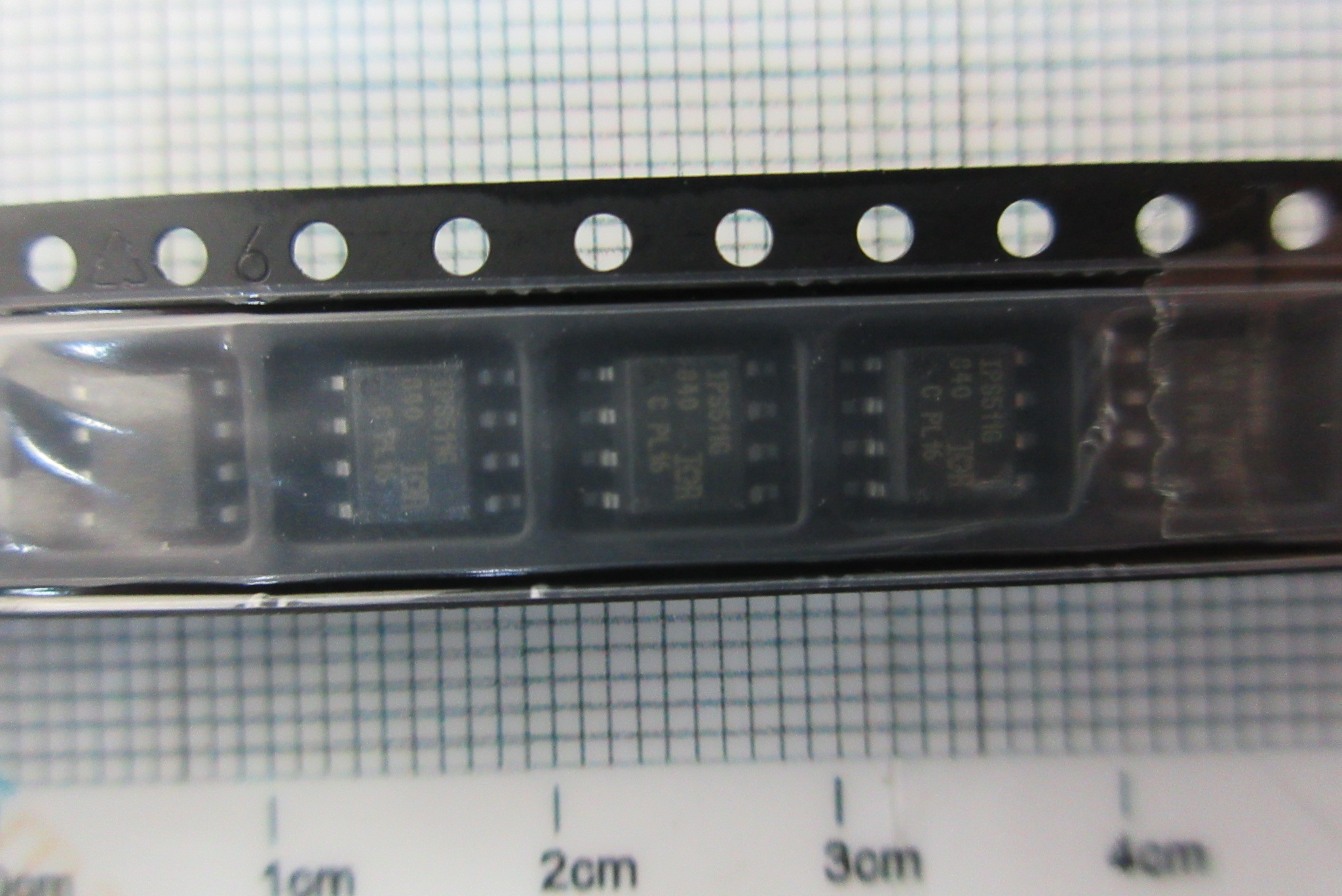

Part No.：IPS511GTR
Category：Integrated Circuit
Manufacturer：Infineon Technologies
Date Code：
Package Type：8-SOIC
Quantity：50000
Click：13
Update Time：2022-06-23 14:52:57
Description:
| Manufacturer | Infineon Technologies | Manufacturer's Part # | IPS511GTR |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Power Distribution Switches, Load Drivers |
| Series | - | Part Status | Obsolete |
| Switch Type | General Purpose | Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 | Output Configuration | High Side |
| Output Type | N-Channel | Interface | On/Off |
| Voltage - Load | 5.5V ~ 35V | Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.4A | Rds On (Typ) | 130 mOhm |
| Input Type | Non-Inverting | Features | Auto Restart |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature | Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 8-SO |
